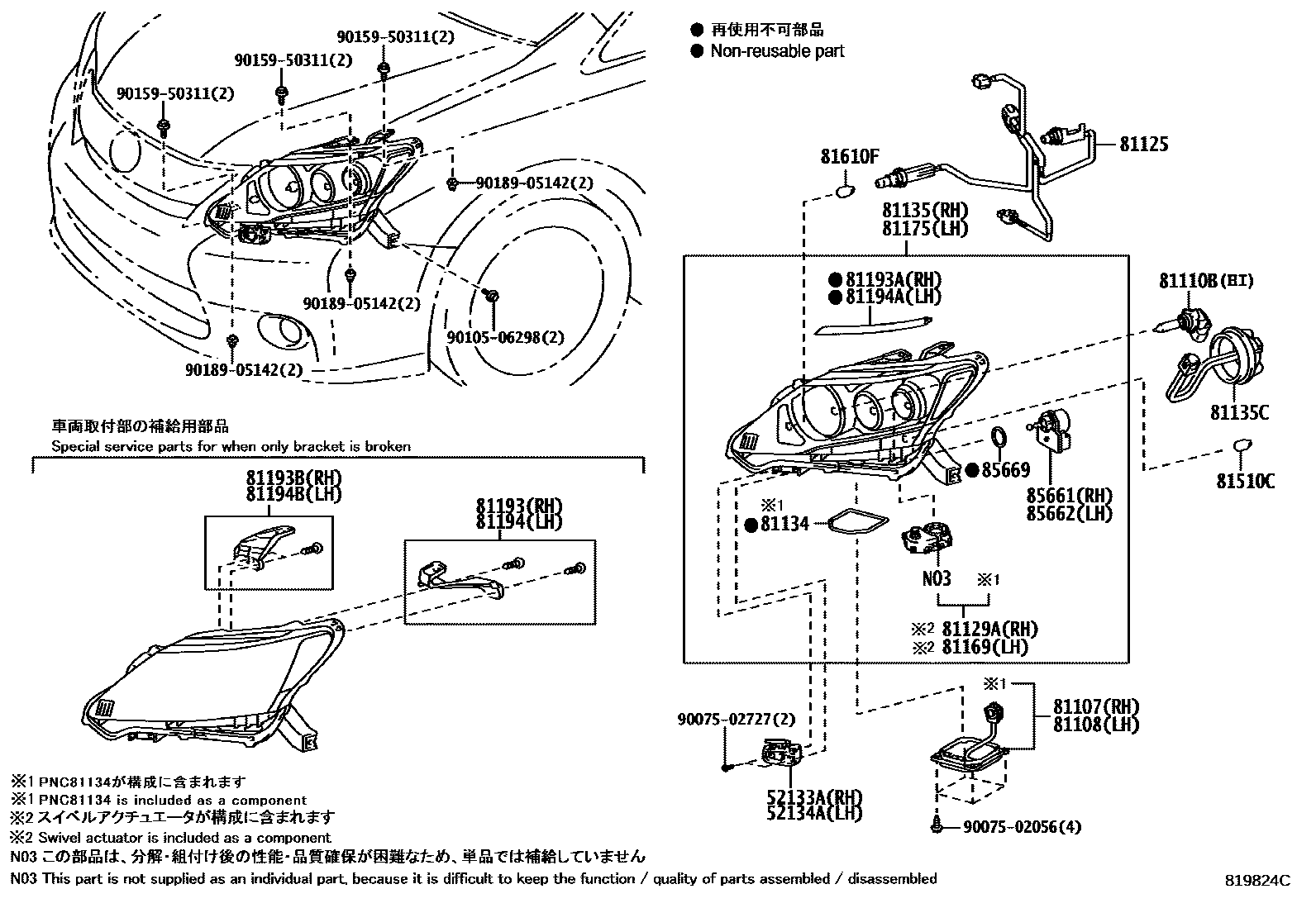

HEADLAMP
52133ABRACKET, FRONT BUMPER, RH
52134ABRACKET, FRONT BUMPER, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
81129AREFLECTOR, HEADLAMP, RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81169REFLECTOR, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81610FBULB(FOR CLEARANCE LAMP)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9007502727
main90075-02727
9010506298
main90105-06298
9015950311
main90159-50311
9018905142
main90189-05142
29 parts on this diagram · 2 diagrams in section
