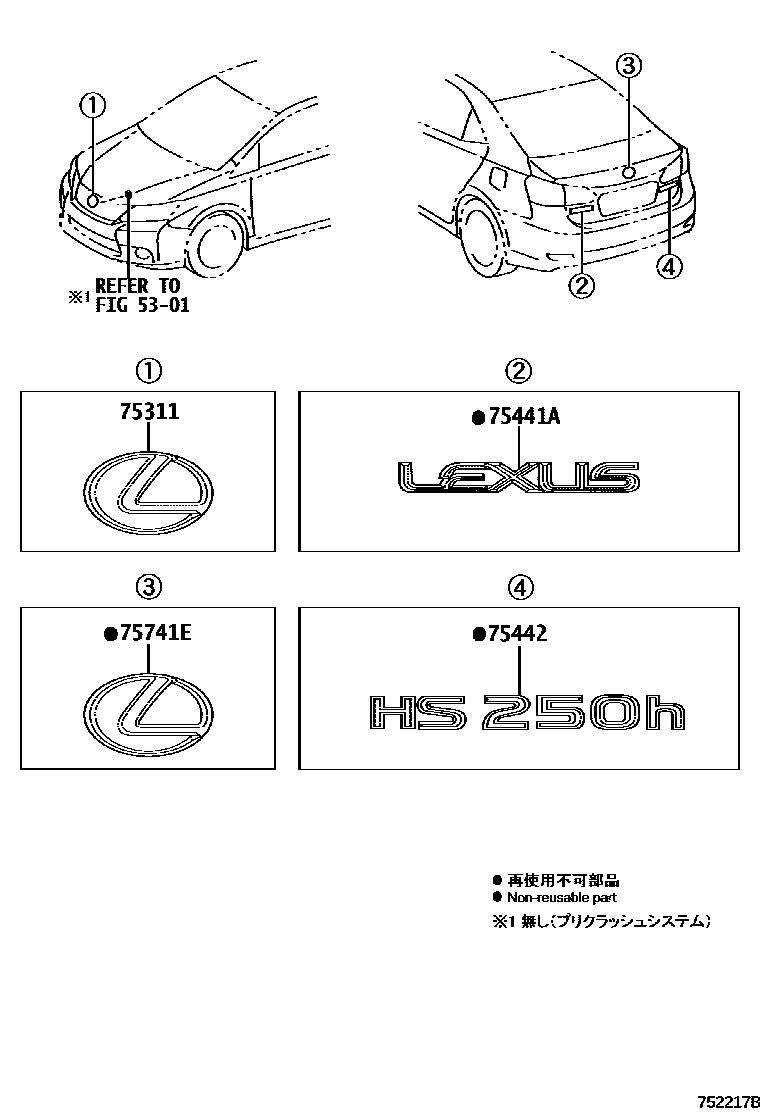

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-75040supersedes 90975-02126iANF10201701-201802

main53141-75040-79supersedes 90975-02126iANF10200907-201301

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-75020iANF10200907-201009

main75441-75021iANF10201301-201802

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-75020iANF10200907-201301

75741EEMBLEM, SYMBOL

main90975-02113iANF10200907-201109

main90975-02228iANF10201301-201802

5 parts on this diagram · 1 diagram in section
