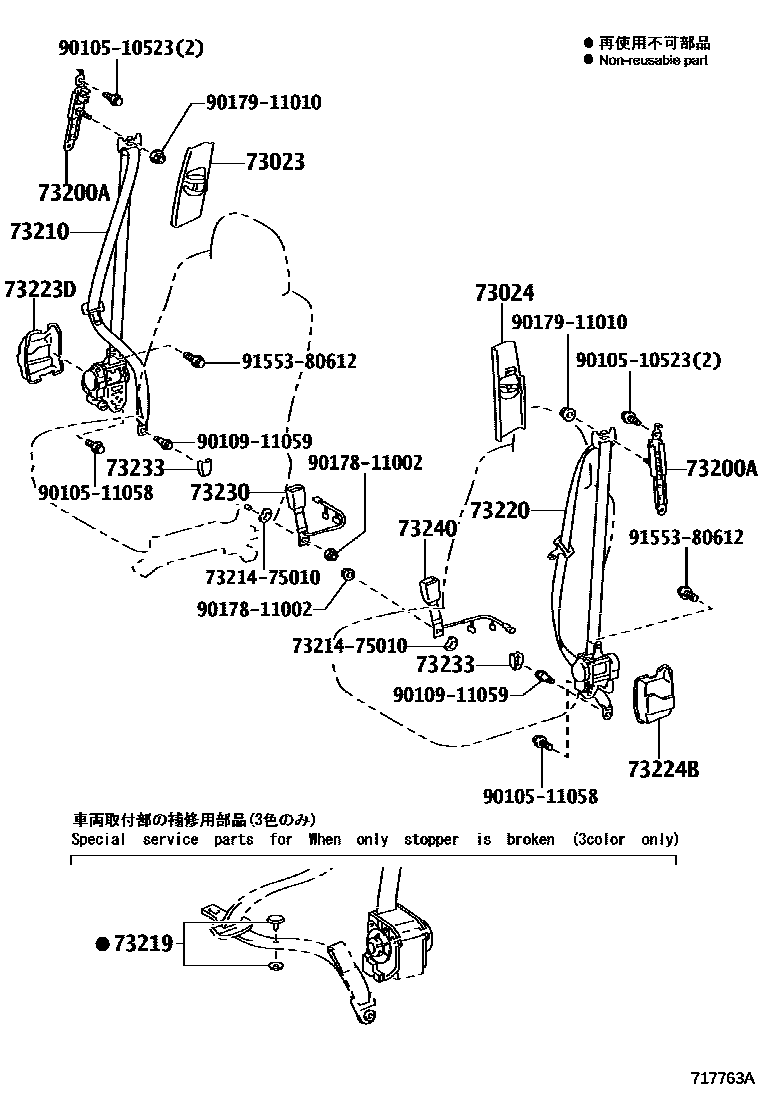

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-A1iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main73023-53020-A2iANF10200907-201301

WATER WHITE,TRIM06,25,26

main73023-53020-A3iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main73023-53020-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-A1iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main73024-53020-A2iANF10200907-201301

WATER WHITE,TRIM06,25,26

main73024-53020-A3iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main73024-53020-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iANF10201505

main73200-53010×2iANF10200907-201301

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-75010-A2iANF10200907-201301

IVORY/DK.BROWN,TRIM05

main73210-75010-A8iANF10201301-201802

ECRU/DK.BROWN/IVORY,TRIM05

main73210-75010-B1iANF10201301-201802

LT.GRAY/BLACK/BLACK,TRIM25,26,27

main73210-75020-A2iANF10200907-201301

main73210-75020-A3supersedes 73210-75010-A3iANF10200907-201301

main73210-75020-A4supersedes 73210-75010-A4iANF10200907-201301

main73210-75020-A5supersedes 73210-75010-A5iANF10200907-201301

main73210-75020-A7supersedes 73210-75010-A7iANF10201301-201802

main73210-75020-A8iANF10201301-201802

main73210-75020-B1iANF10201301-201802

73219STOPPER, TONGUE PLATE

main73219-33010iANF10201301

main73219-33020iANF10201301

main73219-33030iANF10201301

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-75010-A2iANF10200907-201301

IVORY/DK.BROWN,TRIM05

main73220-75010-A8iANF10201301-201802

ECRU/DK.BROWN/IVORY,TRIM05

main73220-75010-B1iANF10201301-201802

LT.GRAY/BLACK/BLACK,TRIM25,26,27

main73220-75020-A2iANF10200907-201301

main73220-75020-A3supersedes 73220-75010-A3iANF10200907-201301

main73220-75020-A4supersedes 73220-75010-A4iANF10200907-201301

main73220-75020-A5supersedes 73220-75010-A5iANF10200907-201301

main73220-75020-A7supersedes 73220-75010-A7iANF10201301-201802

main73220-75020-A8iANF10201301-201802

main73220-75020-B1iANF10201301-201802

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-75010iANF10200907-201104

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-75010iANF10200907-201104

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-75020-C0iANF10200907-201301

BLACK,TRIM2#

main73230-75020-E0iANF10200907-201301

DK. BROWN,TRIM0#

main73230-75030-C0iANF10200907-201301

main73230-75030-E0iANF10200907-201301

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iANF10200907-201301

BLACK,TRIM0#,2#

main73233-60020-C1×2iANF10201610-201802

BLACK

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-75030-C0iANF10200907-201301

BLACK,TRIM2#

main73240-75030-E0iANF10201301-201802

DK. BROWN,TRIM0#

main73240-75040-C0iANF10200907-201301

main73240-75040-E0iANF10200907-201301

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 2 diagrams in section
