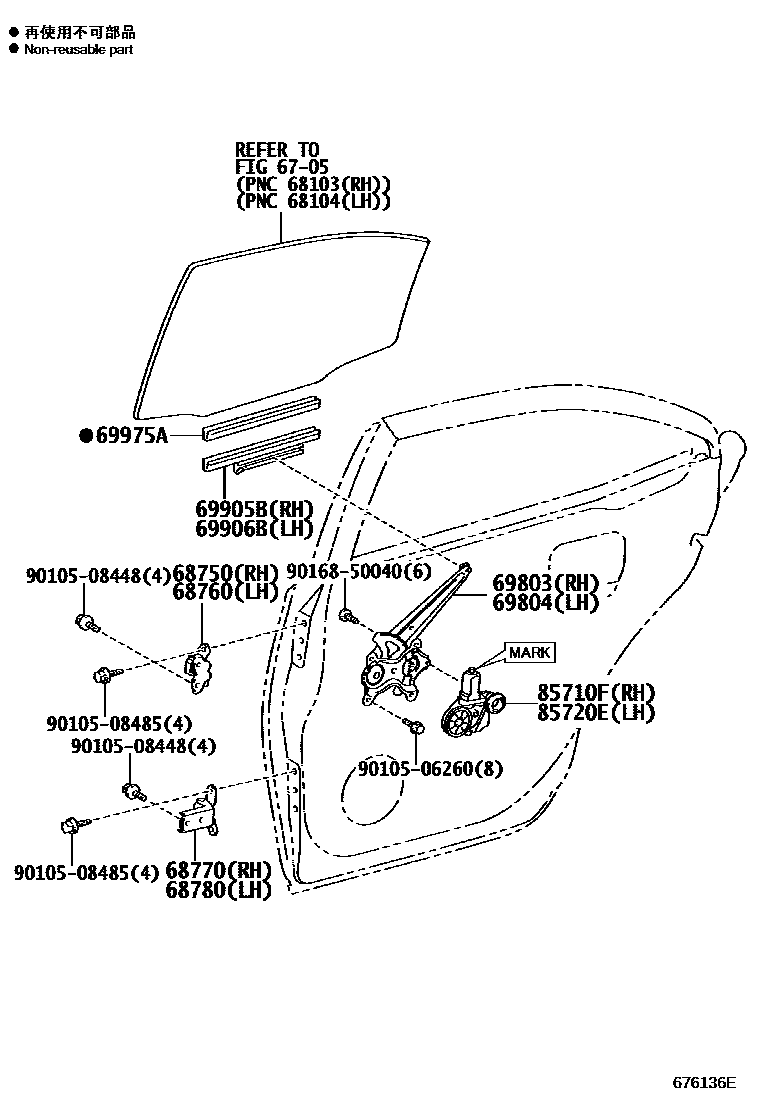

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iANF10200907-201206

main68750-20122iANF10201207-201301

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iANF10200907-201206

main68760-20122iANF10201207-201301

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iANF10201301

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iANF10200907-201301

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iANF10200907-201301

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iANF10200907-201301

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53030iANF10201301-201802

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53030iANF10201301-201802

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iANF10200907-201301

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30431iANF10201301-201505

main85720-60340iANF10201505-201506

main85720-60341iANF10201506

main85720-75040iANF10200907-201011

main85720-75080iANF10201011-201212

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30491iANF10201301-201505

main85710-60360iANF10201505-201506

main85710-60361iANF10201506

main85710-75040iANF10200907-201011

main85710-75080iANF10201011-201212

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
