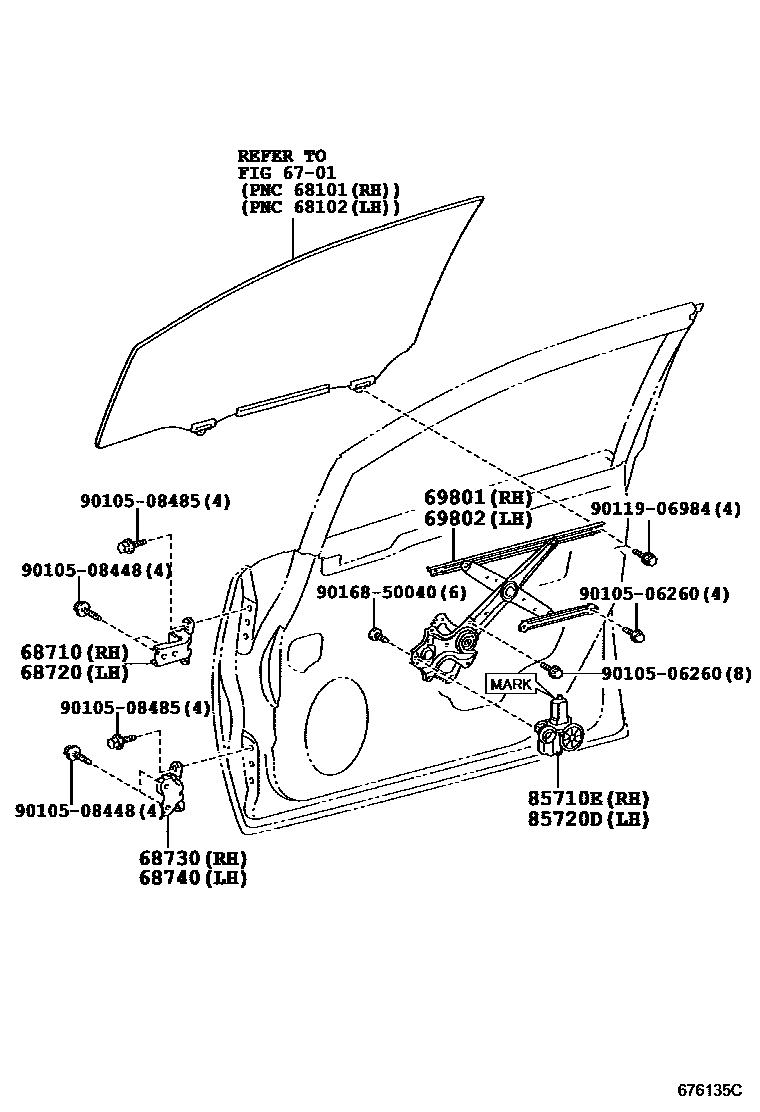

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iANF10201301

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iANF10200907-201301

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iANF10200907-201301

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iANF10200907-201301

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-48050iANF10200907-201301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-48060iANF10201301

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47110iANF10201301-201505

main85710-48070iANF10200907-201011

main85710-60350iANF10201505-201506

main85710-60351iANF10201506

main85710-75060iANF10201011-201301

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47110iANF10201301-201505

main85720-48080iANF10200907-201011

main85720-60330iANF10201505-201506

main85720-60331iANF10201506

main85720-75060iANF10201011-201301

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
