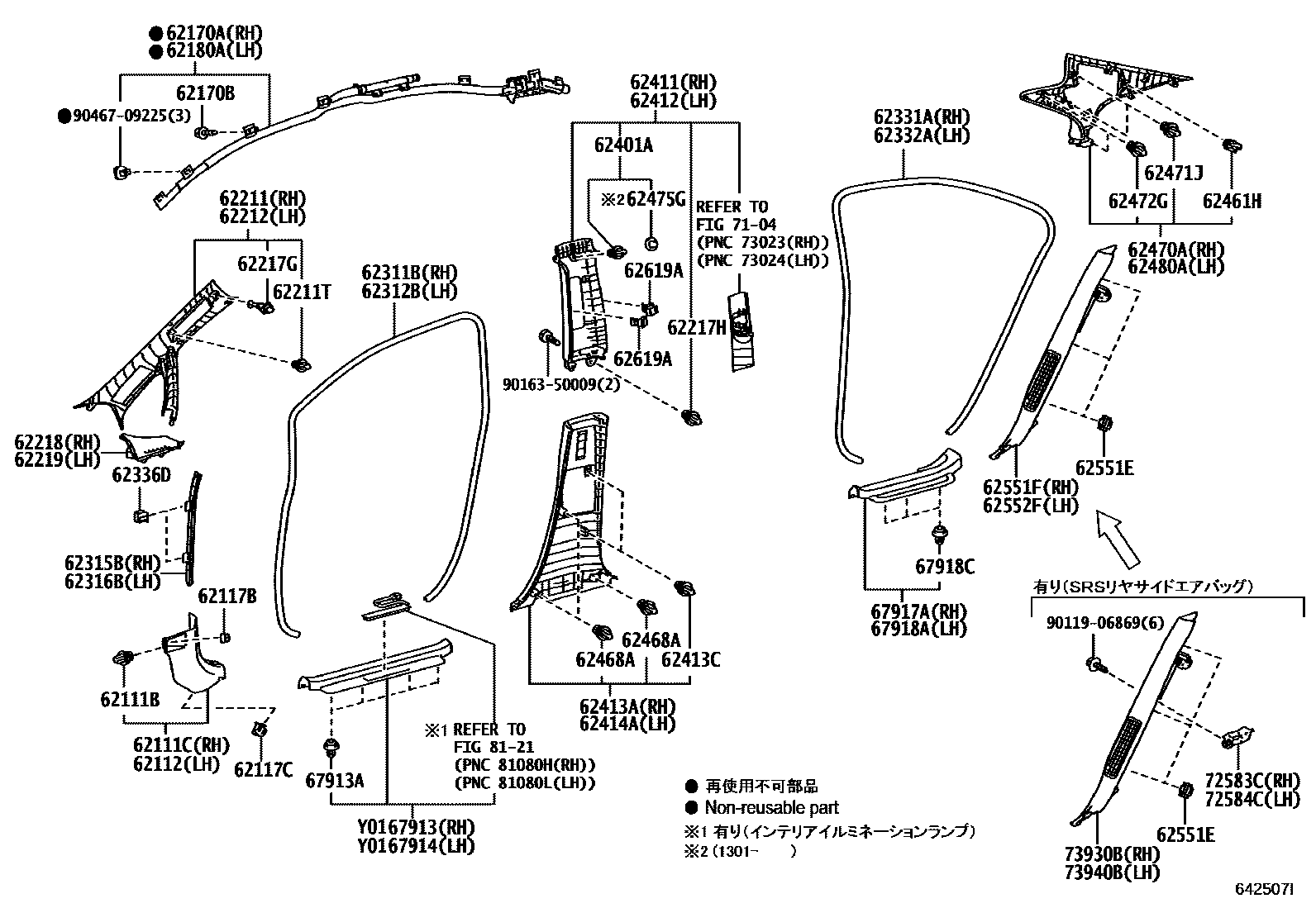

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iANF10200907-201301

62111CBOARD, COWL SIDE TRIM, RH

main62111-75010-C0iANF10200907-201301

BLACK,TRIM06,2#

main62111-75010-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

62112BOARD, COWL SIDE TRIM, LH

main62112-75020-C0iANF10200907-201301

BLACK,TRIM06,2#

main62112-75020-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iANF10201211-201301

main90467-06193-C0×2iANF10200907-201210

BLACK

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main62566-30010×2iANF10200907-201301

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-75010iANF10200907-201301

62170BBOLT, W/WASHER

main90119-06869×12iANF10200907-201010

main90159-06001×12iANF10201010-201301

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-75010iANF10200907-201301

62211GARNISH, FRONT PILLAR, RH

main62210-75020-A3iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62210-75020-A4iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62210-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62210-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iANF10200907-201301

62212GARNISH, FRONT PILLAR, LH

main62220-75020-A3iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62220-75020-A4iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62220-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62220-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004×2iANF10200907-201301

62217HCLIP, CENTER PILLER GARNISH

main90467-10161×2iANF10200907-201301

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-75020-C0iANF10200907-201301

BLACK,TRIM06,2#

main62218-75020-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

main62218-75021-C0iANF10201301-201802

BLACK,TRIM06,2#

main62218-75021-E0iANF10201301-201802

DK. BROWN,TRIM05,07

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-75020-C0iANF10200907-201301

BLACK,TRIM06,2#

main62219-75020-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

main62219-75021-C0iANF10201301-201802

BLACK,TRIM06,2#

main62219-75021-E0iANF10201301-201802

DK. BROWN,TRIM05,07

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-75010iANF10200907-201301

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-75010iANF10200907-201301

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-75010-C0iANF10200907-201301

BLACK,TRIM06,2#

main62315-75010-E0iANF10201301-201308

DK. BROWN,TRIM05

main62315-75040-C0iANF10201308-201802

BLACK,TRIM06,2#

main62315-75040-E1iANF10201308-201802

DK. BROWN,TRIM05,07

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-75010-C0iANF10200907-201301

BLACK,TRIM06,2#

main62316-75010-E0iANF10201301-201308

DK. BROWN,TRIM05

main62316-75020-C0iANF10201308-201802

BLACK,TRIM06,2#

main62316-75020-E1iANF10201308-201802

DK. BROWN,TRIM05,07

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-75010iANF10200907-201301

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-75010iANF10200907-201301

62336DCLAMP

main62566-30010×4iANF10200907-201301

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62707-48010×2iANF10200907-201301

62411GARNISH, CENTER PILLAR, RH

main62410-75020-A0iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62410-75020-A1iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62410-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62410-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62412GARNISH, CENTER PILLAR, LH

main62420-75020-A0iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62420-75020-A1iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62420-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62420-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-75020-C0iANF10200907-201301

BLACK,TRIM06,2#

main62413-75020-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iANF10200907-201301

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-75020-C0iANF10200907-201301

BLACK,TRIM06,2#

main62414-75020-E0iANF10200907-201301

DK. BROWN,TRIM05,06,07

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09212×2iANF10200907-201301

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-10167×6iANF10200907-201301

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-75020-A3iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62470-75020-A4iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62470-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62470-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×4iANF10200907-201301

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150×4iANF10200907-201301

62475GSEAL, ROOF SIDE, INNER

main62475-48060×2iANF10200907-201301

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-75020-A3iANF10200907-201301

IVORY,TRIM05,07,27,28,29

main62480-75020-A4iANF10200907-201301

WATER WHITE,TRIM06,25,26

main62480-75040-A0iANF10201301-201802

ECRU,TRIM0#,20,21,28,29

main62480-75040-B0iANF10201301-201802

LT.GRAY,TRIM23,25,26,27

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62566-30010×6iANF10200907-201301

62551FGARNISH, REAR SEAT SIDE, RH

main62551-75020-C0iANF10201301-201802

main62551-75020-E0iANF10201301-201802

62552FGARNISH, REAR SEAT SIDE, LH

main62552-75010-C0iANF10201301-201802

main62552-75010-E0iANF10201301-201802

62619APLATE, SIDE TRIM SET

main62619-30030×4iANF10200907-201301

67913PLATE, FRONT DOOR SCUFF, RH

main67910-75010-C0iANF10200907-201301

BLACK,TRIM2#

main67910-75010-E0iANF10200907-201301

DK. BROWN,TRIM0#

main67910-75020-C0iANF10201301-201802

main67910-75020-E0iANF10201301-201802

67913ACLIP(FOR SCUFF PLATE)

main90467-10162×8iANF10200907-201301

67914PLATE, FRONT DOOR SCUFF, LH

main67920-75010-C0iANF10200907-201301

BLACK,TRIM2#

main67920-75010-E0iANF10200907-201301

DK. BROWN,TRIM0#

main67920-75020-C0iANF10201301-201802

main67920-75020-E0iANF10201301-201802

67917APLATE, REAR DOOR SCUFF, RH

main67930-75010-C0iANF10200907-201301

main67930-75010-E0iANF10200907-201301

67918APLATE, REAR DOOR SCUFF, LH

main67940-75010-C0iANF10200907-201301

main67940-75010-E0iANF10200907-201301

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162×6iANF10200907-201301

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

72583CBRACKET, REAR SEAT SIDE GARNISH, NO.1 RH

main72583-75010iANF10201301

72584CBRACKET, REAR SEAT SIDE GARNISH, NO.1 LH

main72583-75010iANF10201301

73930BAIRBAG, REAR SEAT, RH

main73930-75010-C0iANF10201301-201802

main73930-75010-E0iANF10201301-201802

73940BAIRBAG, REAR SEAT, LH

main73940-75010-C0iANF10201301-201802

main73940-75010-E0iANF10201301-201802

8121INTERIOR LAMP

→ Go to FIG 81-21

9011906869

main90119-06869

9016350009

main90163-50009

9046709225

main90467-09225

54 parts on this diagram · 1 diagram in section
