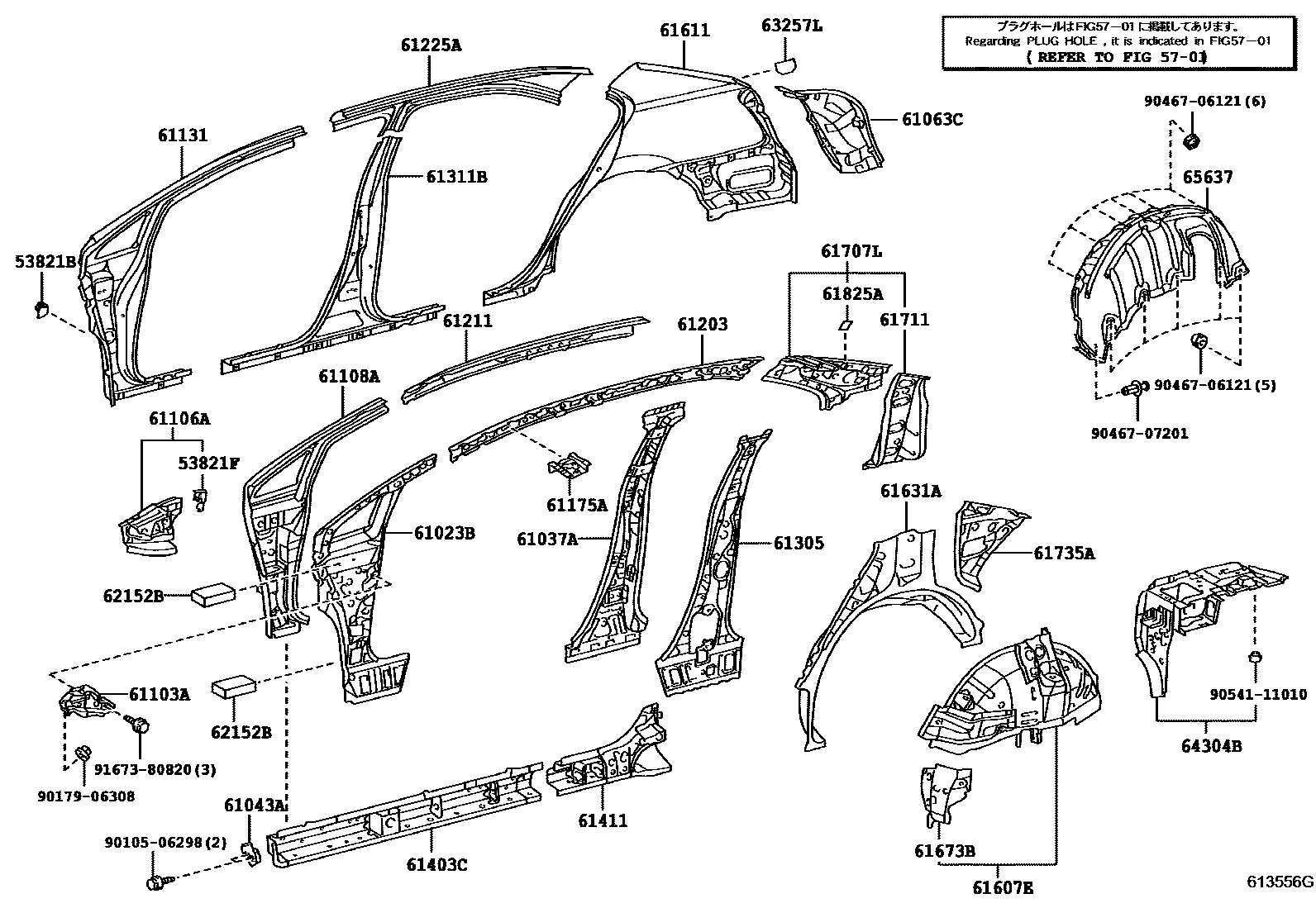

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
5701HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61825APLATE, NOISE CONTROL, NO.2
62152BPAD, COWL SIDE SILENCER, NO.2
63257LSEAL, SLIDING ROOF
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
65637LINER, REAR WHEEL HOUSE, RH
9010506298
main90105-06298
9017906308
main90179-06308
9046706121
main90467-06121
9046707201
main90467-07201
9054111010
main90541-11010
9167380820
main91673-80820
37 parts on this diagram · 2 diagrams in section
