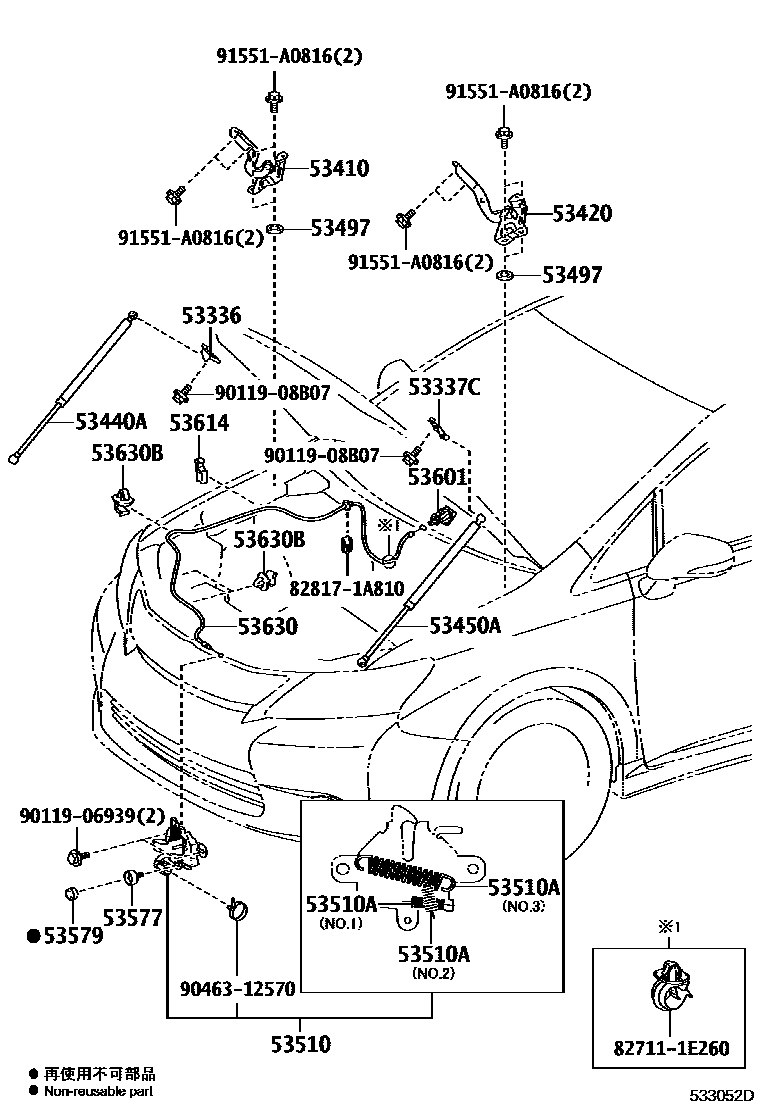

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-75020iANF10200907-201301

53337CBRACKET, HOOD STAY, LH

main53337-75020iANF10200907-201301

53410HINGE ASSY, HOOD, RH

main53410-75020iANF10200907-201301

53420HINGE ASSY, HOOD, LH

main53420-75020iANF10200907-201301

53440ASUPPORT ASSY, HOOD, RH

main53440-75010iANF10200907-201301

main53440-75011iANF10201612

53450ASUPPORT ASSY, HOOD, LH

main53450-75010iANF10200907-201301

main53450-75011iANF10201612

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iANF10201301

main53497-42010×4iANF10201301

53510LOCK ASSY, HOOD

main53510-75020iANF10200907-201301

main53510-75050iANF10201301

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iANF10200907-201301

main90506-12063iANF10200907-201301

main90506-16077iANF10200907-201301

53577BOLT, HOOD LOCK

main53577-33010iANF10200907-201301

53579CAP, HOOD LOCK NUT

main53579-50010iANF10201301

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A4iANF10200907-201301

IVORY,TRIM05,07

main53601-52010-A5iANF10200907-201301

WATER WHITE,TRIM06

main53601-52010-A6iANF10201301-201802

ECRU,TRIM06

main53601-52010-C0iANF10201301-201612

BLACK,TRIM2#

main53601-52010-C1iANF10201612-201802

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47020iANF10200907-201301

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-75020iANF10200907-201301

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iANF10200907-201301

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9011908B07

main90119-08B07

9046312570

main90463-12570

91551A0816

main91551-A0816

21 parts on this diagram · 1 diagram in section
