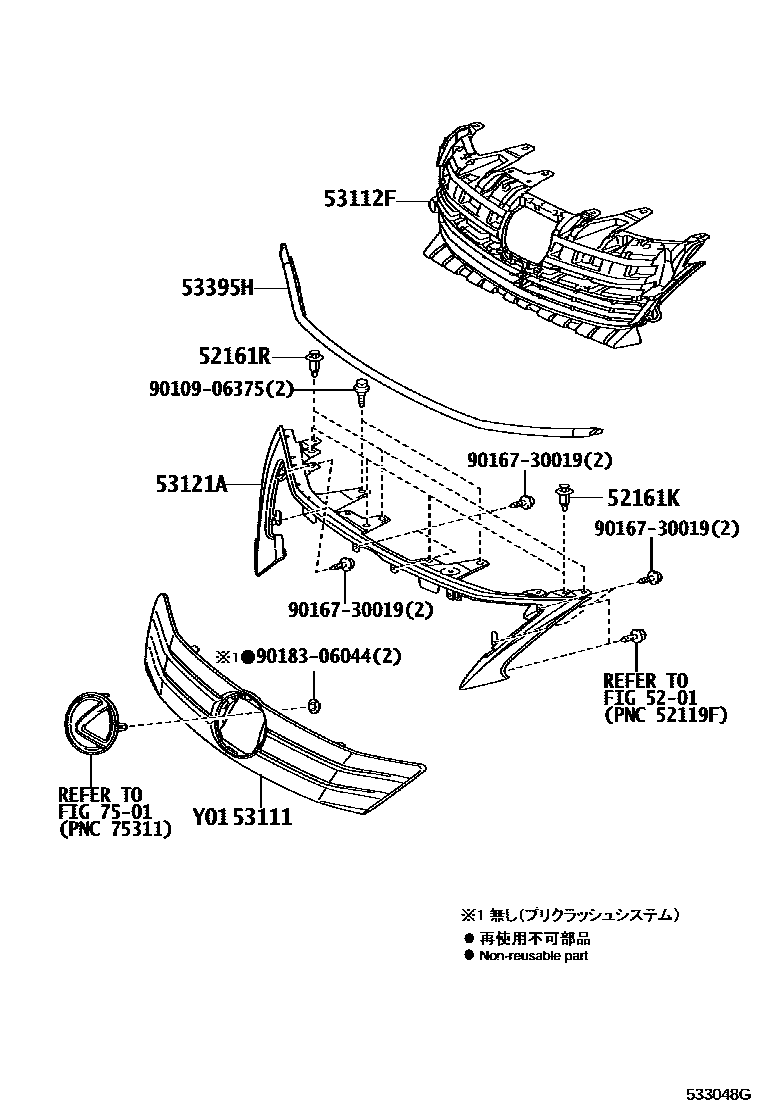

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161KPIECE, FRONT BUMPER

main52161-16010×3iANF10201301

52161RPIECE, FRONT BUMPER

main52161-16010×3iANF10200907-201301

53111GRILLE, RADIATOR

main53111-75050supersedes 53111-75090iANF10200907-201301

main53111-75080supersedes 53111-75090iANF10200907-201301

main53111-75100supersedes 53111-75090iANF10200907-201301

main53111-75140supersedes 53111-75130iANF10201301-201608

main53111-75150supersedes 53111-75130iANF10201301-201608

main53111-75160supersedes 53111-75130iANF10201301-201608

main53111-75190supersedes 53111-75090iANF10201701-201802

53112FGRILLE, RADIATOR, INSIDE

main53112-75020supersedes 53112-75010iANF10200907-201301

53121AMOULDING, RADIATOR GRILLE

main53121-75020iANF10200907-201301

main53121-75040iANF10201301-201802

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-75020iANF10200907-201301

main53395-75040iANF10201301

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906375

main90109-06375

9016730019

main90167-30019

9018306044

main90183-06044

11 parts on this diagram · 2 diagrams in section
