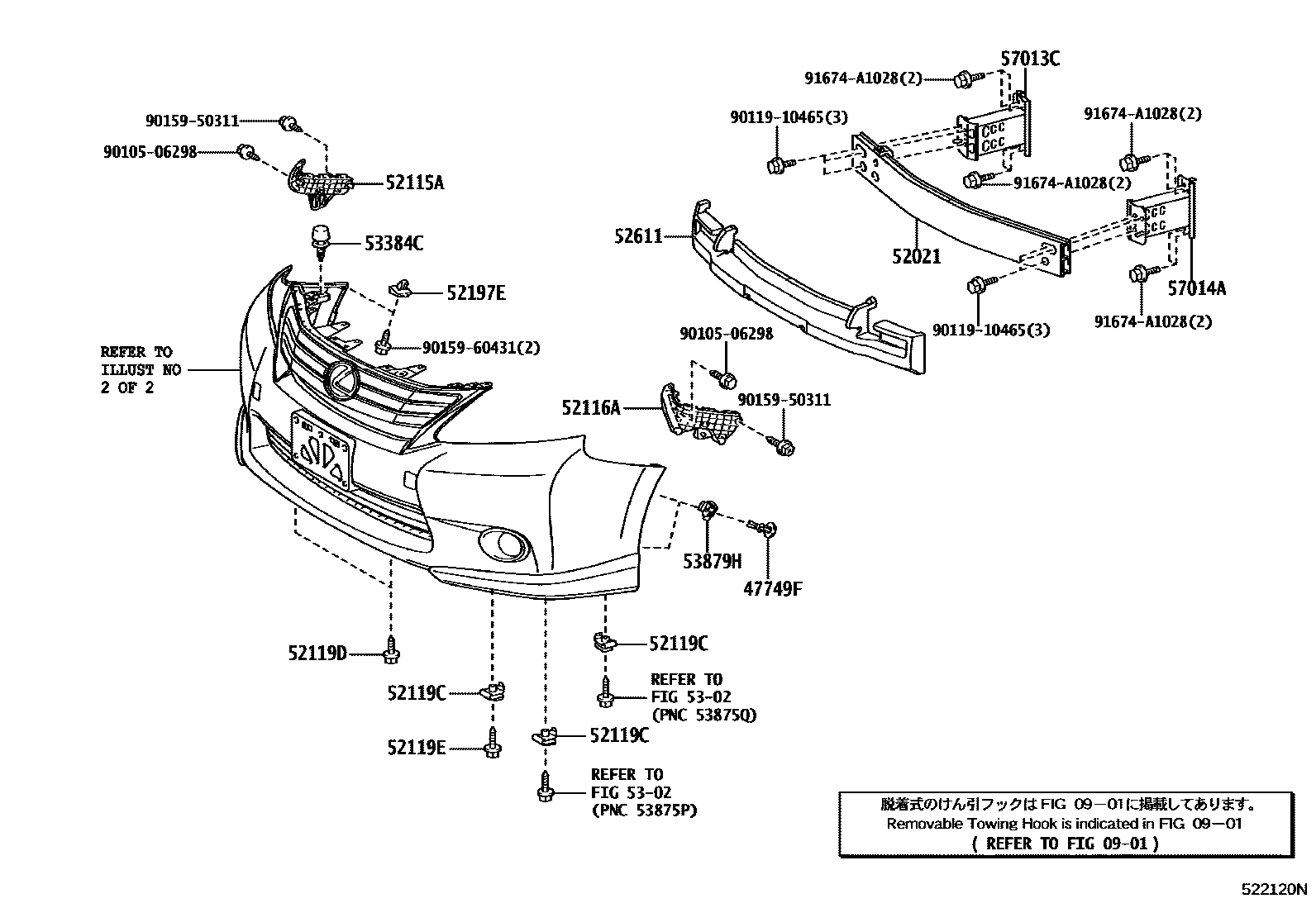

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

0901STANDARD TOOL

→ Go to FIG 09-01

47749FCLIP, PIN HOLD

main47749-50090iANF10200907-201802

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-75010iANF10200907-201301

main52021-75070iANF10201301-201802

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-75020iANF10200907-201301

main52115-75040iANF10201301-201802

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-75020iANF10200907-201301

main52116-75040iANF10201301-201802

52119CCLIP, FRONT BUMPER COVER

main90467-05114iANF10200907-201802

52119DSCREW, NO.1

main90159-60488iANF10200907-201802

52119ESCREW, NO.2

main90159-60488iANF10200907-201802

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040iANF10200907-201802

52611ABSORBER, FRONT BUMPER ENERGY

main52611-75030iANF10200907-201301

main52611-75050iANF10201301-201802

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53384CCUSHION, HOOD, CENTER

main53384-75010iANF10200907-201301

53879HRETAINER, FRONT FENDER LINER

main53879-30040iANF10200907-201802

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-75020iANF10200907-201301

main57013-75050iANF10201301-201802

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-75020iANF10200907-201802

9010506298

main90105-06298

9011910465

main90119-10465

9015950311

main90159-50311

9015960431

main90159-60431

91674A1028

main91674-A1028

20 parts on this diagram · 4 diagrams in section
