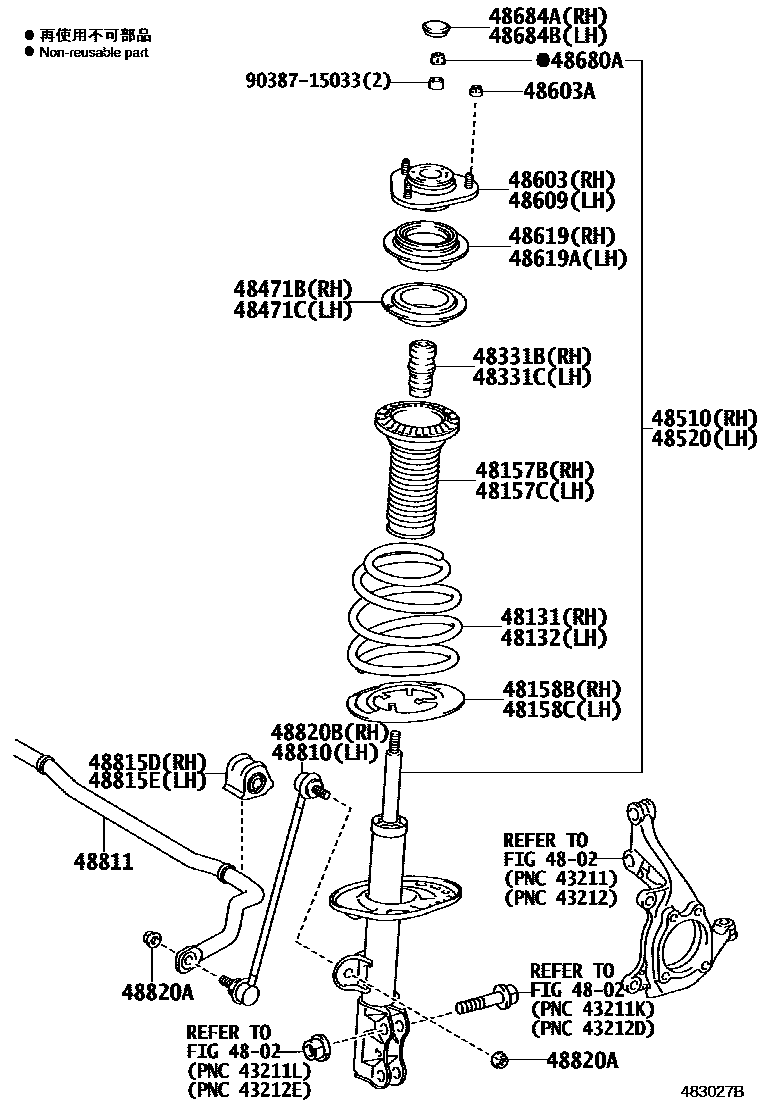

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
9038715033
main90387-15033
28 parts on this diagram · 1 diagram in section
