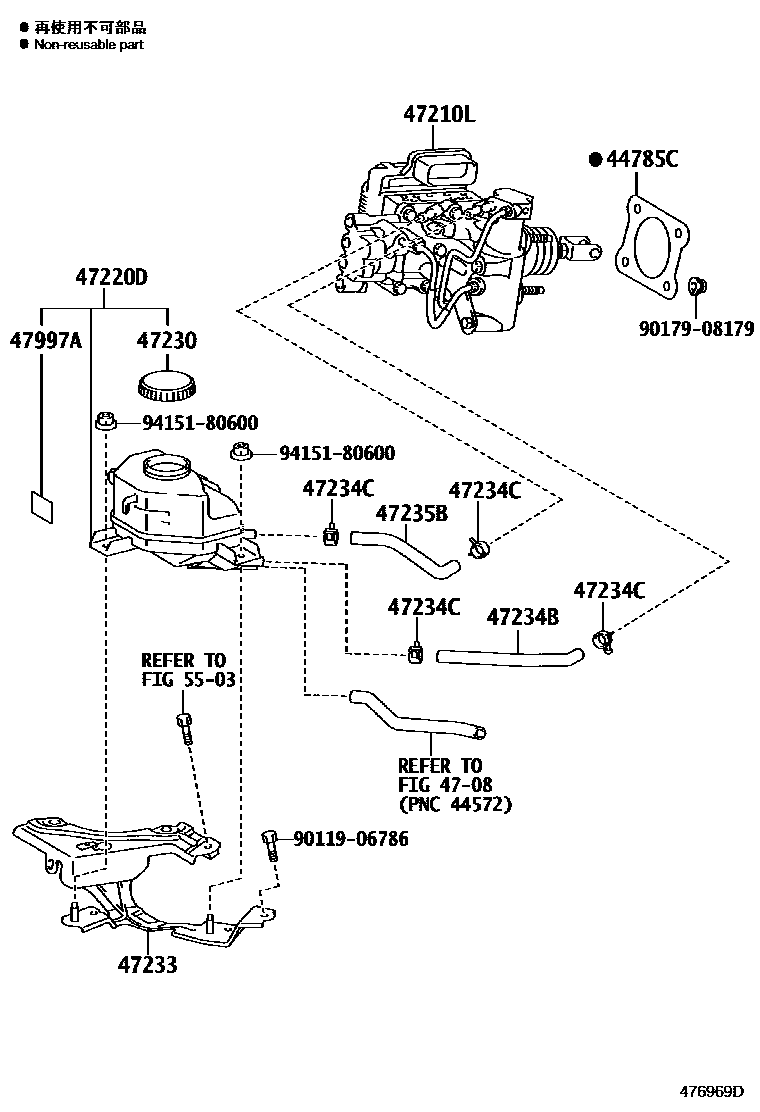

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iANF10200907-201301

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-75020iANF10200907-201110

main47050-75021iANF10201110-201301

main47050-75050iANF10201301-201508

main47050-75051iANF10201508

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47050iANF10200907-201012

main47220-47070iANF10201101-201301

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iANF10201301

main47230-58010iANF10200907-201101

sub47230-11010

47233BRACKET, RESERVOIR

main47233-75010iANF10200907-201301

47234BTUBE, RESERVOIR, NO.1

main47234-75010iANF10200907-201301

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96137-41501×4iANF10200907-201301

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-75010iANF10200907-201301

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-47020iANF10200907-201101

main47997-76010iANF10201101-201301

5503

9011906786

main90119-06786

9017908179

main90179-08179

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
