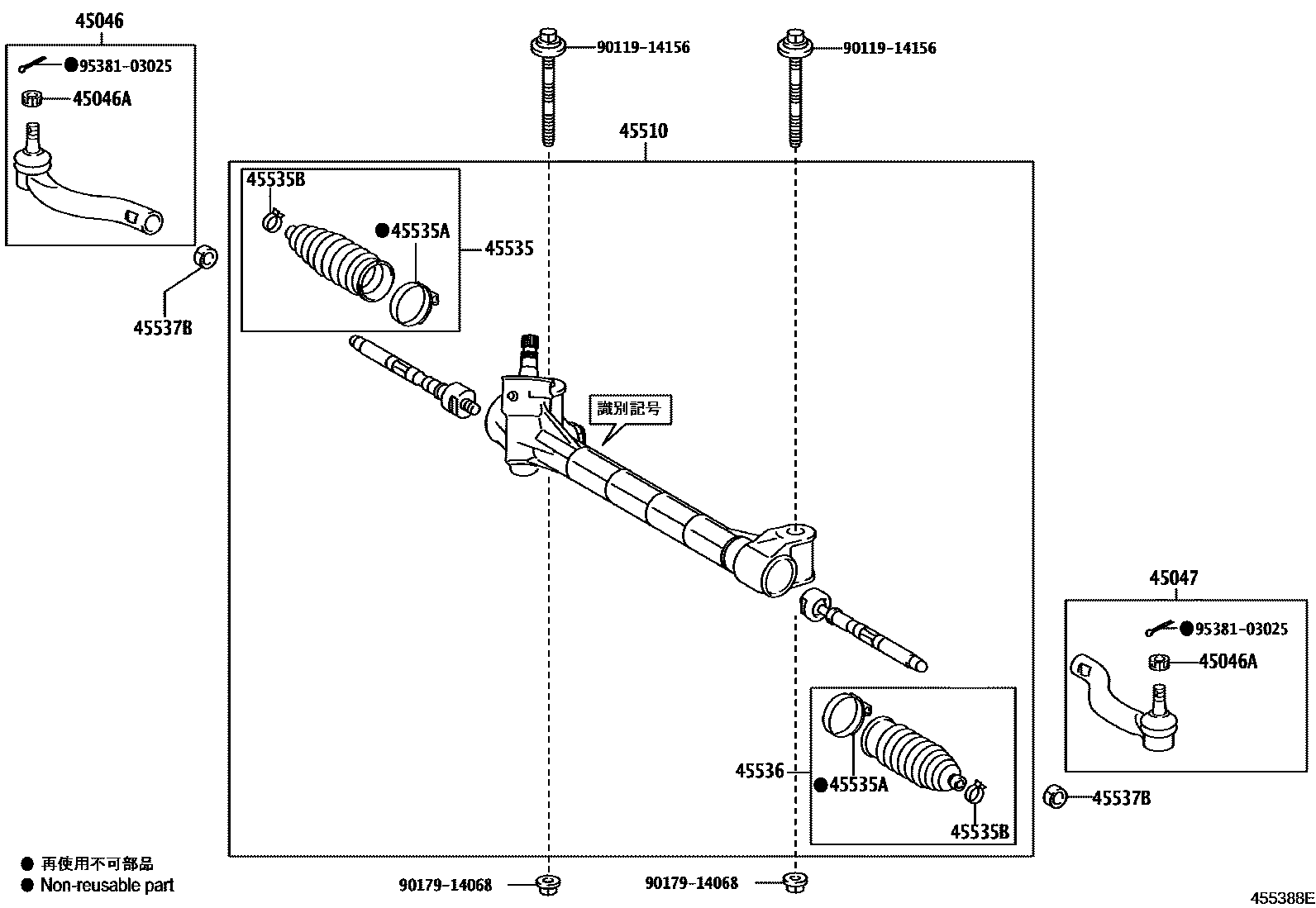

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iANF10200907-201301

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iANF10200907-201301

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iANF10200907-201301

45510GEAR ASSY, STEERING

main45510-75020iANF10200907-201301

main45510-75050iANF10201505-201802

45535BOOT, STEERING RACK, NO.1

main45535-49015iANF10200907-201301

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010×2iANF10200907-201301

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iANF10200907-201301

45536BOOT, STEERING RACK, NO.2

main45535-49015iANF10200907-201301

45537BNUT, RACK END LOCK

main90178-16001×2iANF10200907-201301

9011914156

main90119-14156

9017914068

main90179-14068

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
