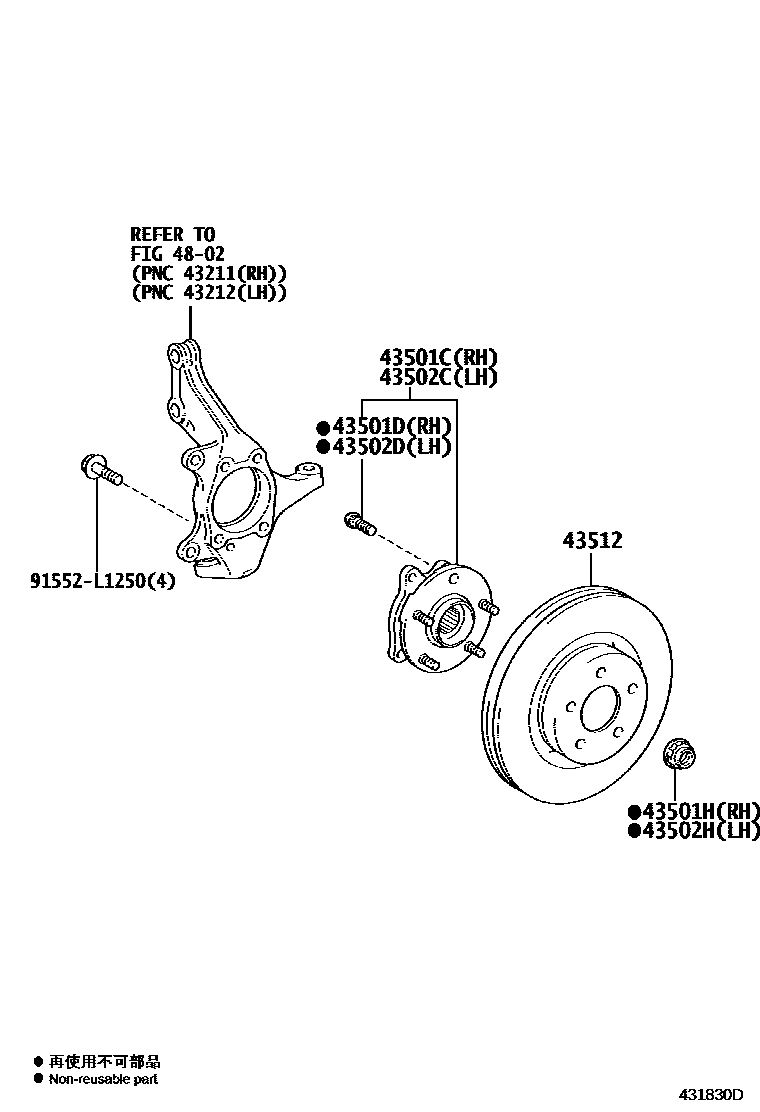

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iANF10200907-201301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iANF10200907-201301

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iANF10200907-201301

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iANF10200907-201301

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iANF10200907-201301

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iANF10200907-201301

43512DISC, FRONT

main43512-42040×2iANF10200907-201301

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section
