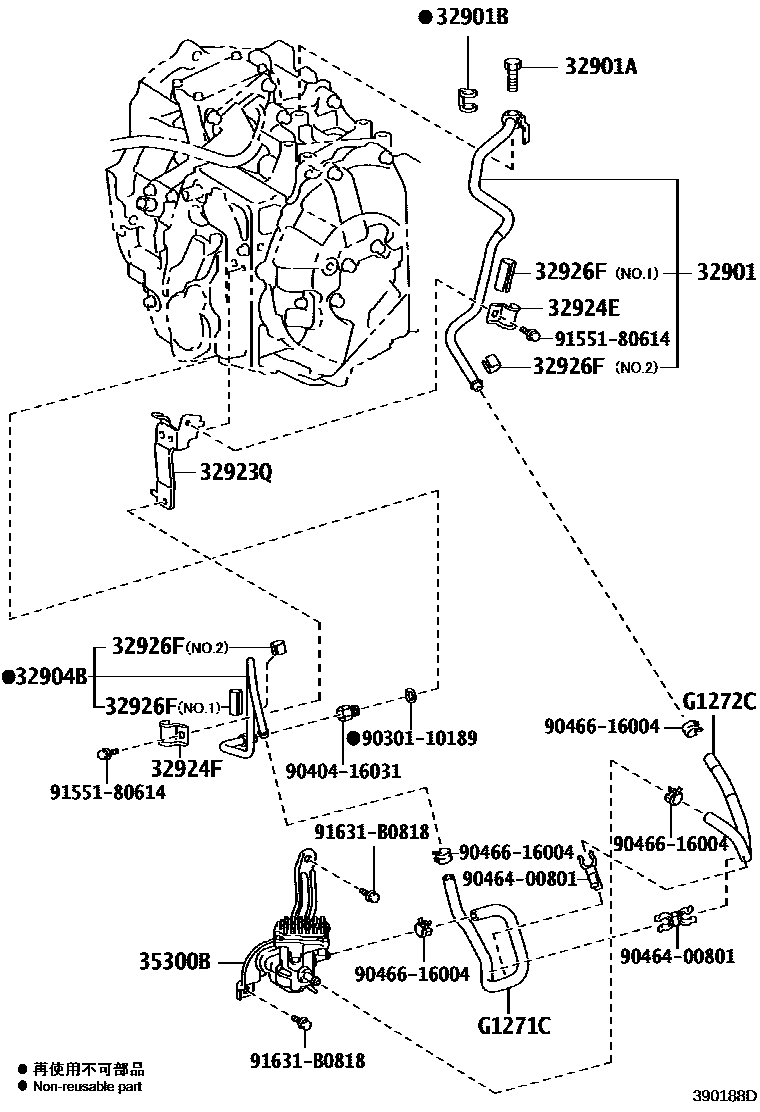

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901UNION SUB-ASSY, OIL COOLER

main32901-75010iANF10200907-201301

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iANF10200907-201301

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iANF10200907-201301

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-75010iANF10200907-201301

32923QCLAMP, OIL COOLER TUBE

main32923-75010iANF10200907-201301

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iANF10200907-201301

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010iANF10200907-201301

32926FCUSHION, OIL COOLER TUBE

main32926-30020iANF10200907-201301

main32926-75010iANF10200907-201301

35300BPUMP ASSY, OIL W/MOTOR

main35300-75010iANF10201301

G1271CHOSE, MOTOR COOLING, NO.1

mainG127175010iANF10200907-201301

G1272CHOSE, MOTOR COOLING, NO.2

mainG127275010iANF10200907-201301

9030110189

main90301-10189

9040416031

main90404-16031

9046400801

main90464-00801

9046616004

main90466-16004

9155180614

main91551-80614

91631B0818

main91631-B0818

17 parts on this diagram · 1 diagram in section
