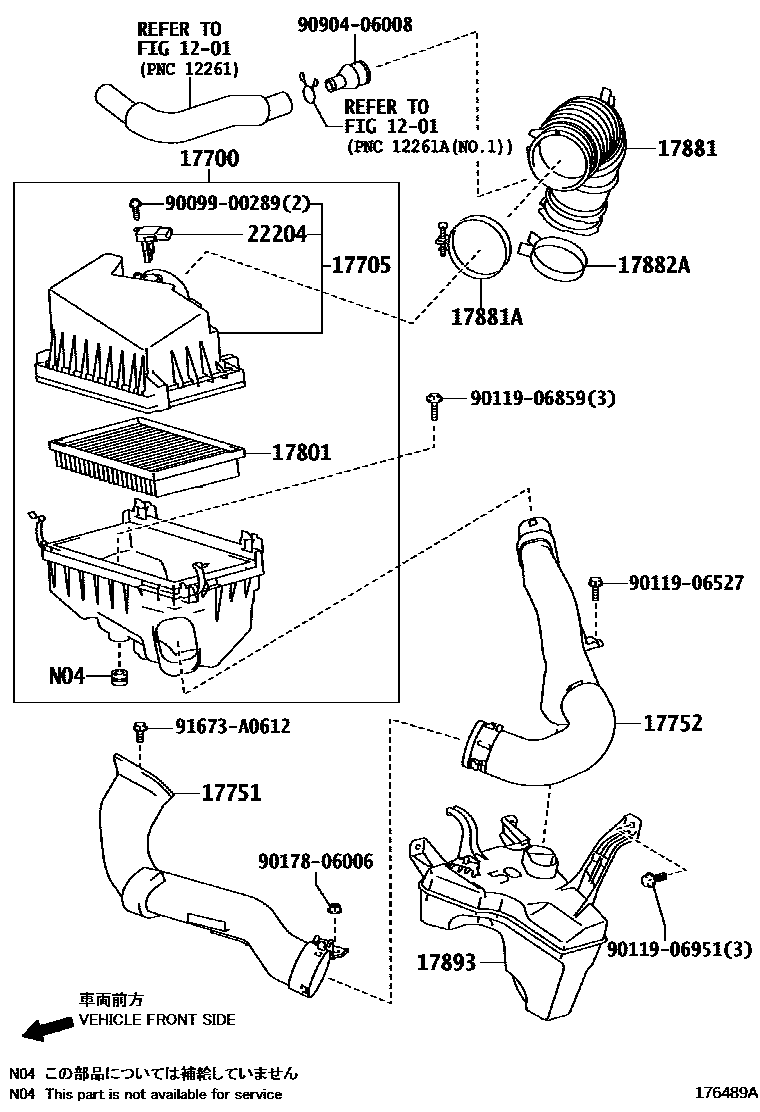

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-28390i2AZFXE..ANF10200907-201301

17705CAP SUB-ASSY, AIR CLEANER

main17705-28330i2AZFXE..ANF10200907-201107

main17705-28331i2AZFXE..ANF10201108-201301

17751INLET, AIR CLEANER, NO.1

main17751-28130i2AZFXE..ANF10200907-201301

17752INLET, AIR CLEANER, NO.2

main17752-28050i2AZFXE..ANF10200907-201301

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38010i2AZFXE..ANF10200907-201205

main17801-38011i2AZFXE..ANF10201206-201301

17881HOSE, AIR CLEANER, NO.1

main17881-28310i2AZFXE..ANF10200907-201301

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i2AZFXE..ANF10200907-201301

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2AZFXE..ANF10200907-201301

17893RESONATOR, INTAKE AIR

main17893-28090i2AZFXE..ANF10200907-201301

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-28010i2AZFXE..ANF10200907-201301

9009900289

main90099-00289

9011906527

main90119-06527

9011906859

main90119-06859

9011906951

main90119-06951

9017806006

main90178-06006

9090406008

main90904-06008

91673A0612

main91673-A0612

18 parts on this diagram · 1 diagram in section
