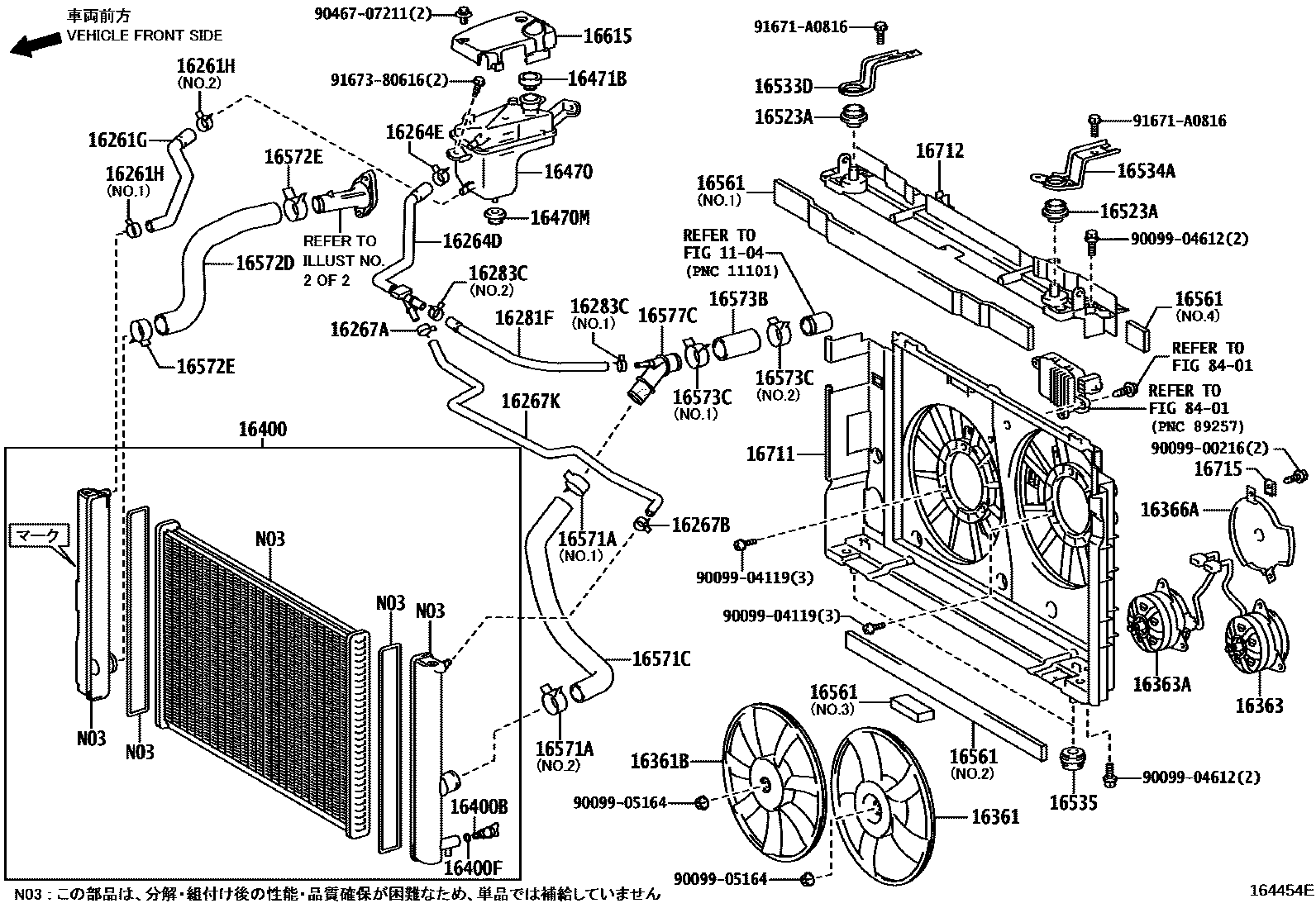

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267BCLIP(FOR WATER BY-PASS HOSE)
16267KHOSE, WATER BY-PASS, NO.3
16281FHOSE, WATER BY-PASS, NO.5
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16361FAN
16361BFAN, NO.2
16366AINSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16523ACUSHION, RADIATOR SUPPORT
16533DSUPPORT, RADIATOR, RH
16534ASUPPORT, RADIATOR, LH
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16615COVER, RADIATOR RESERVE TANK
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
16715BRACKET, FAN SHROUD
8401
9009900216
main90099-00216
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9046707211
main90467-07211
91671A0816
main91671-A0816
9167380616
main91673-80616
47 parts on this diagram · 2 diagrams in section
