OIL FILTER

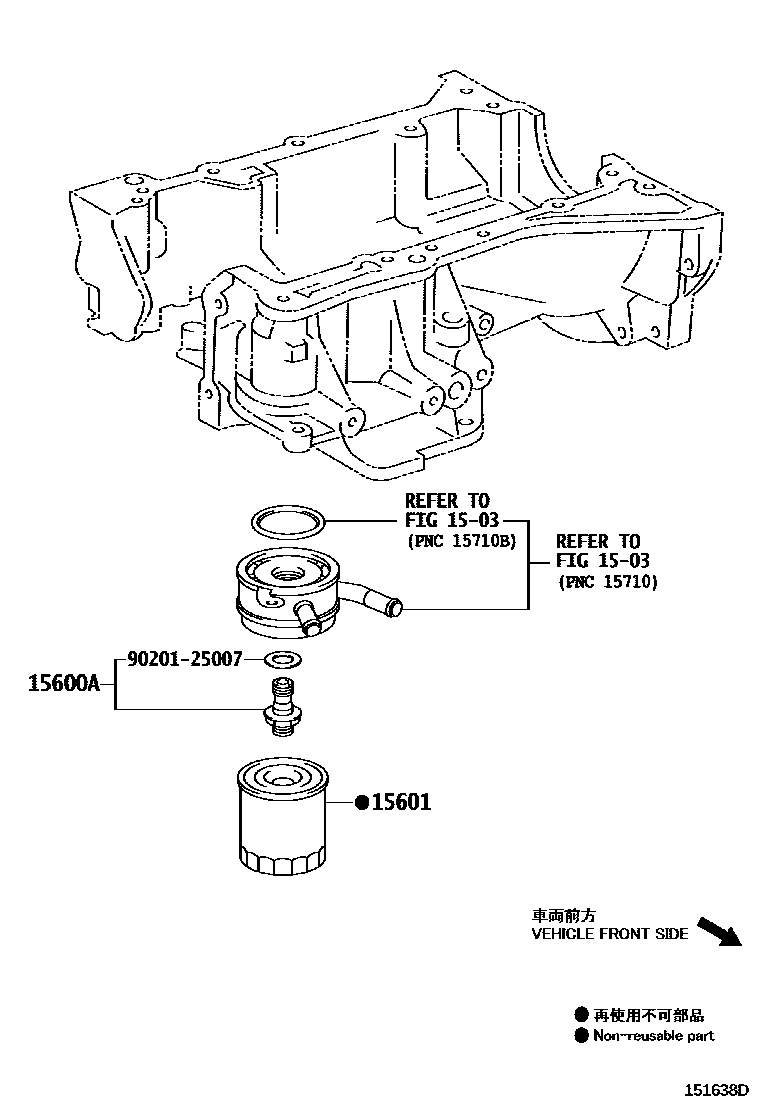

Parts diagram

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15600AUNION(FOR OIL FILTER)

main15695-28010i200907-201301

15601FILTER SUB-ASSY, OIL

main90915-10004i200907-201301

9020125007

main90201-25007

4 parts on this diagram · 1 diagram in section
