STANDARD TOOL

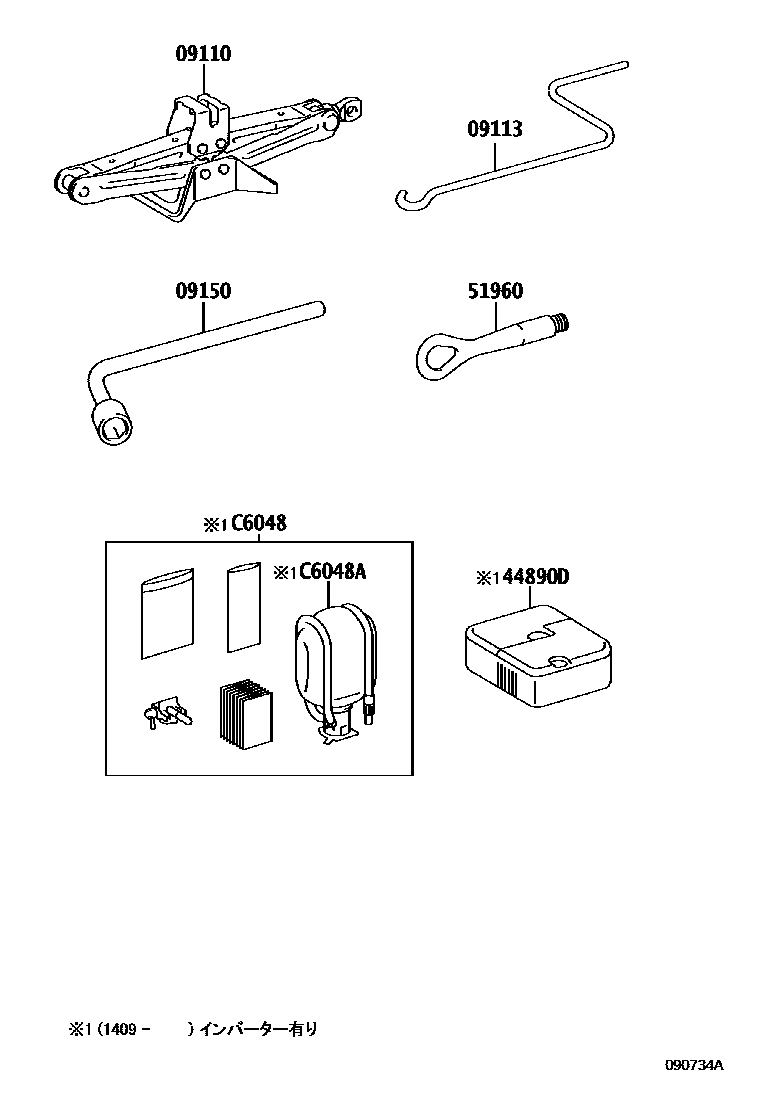

Parts diagram

09110JACK ASSY

main09111-33030i201009-201601

main09111-50051i200907-201008

main09111-76010i201602

09113HANDLE, JACK

main09113-13040i200907-201301

09150WRENCH, HUB NUT BOX

main09150-48010i200907-201301

main09150-76020i201301

44890DCOMPRESSOR ASSY, AIR

main44890-52021i201508

51960HOOK ASSY, FRONT

main51961-50040i200907-201204

main51961-50042i201205-201301

C6048REPAIR SET, TIRE

main42683-47021i201508

C6048ASEALANT, REPAIR TIRE

mainC604847051i201508-201802

7 parts on this diagram · 1 diagram in section
