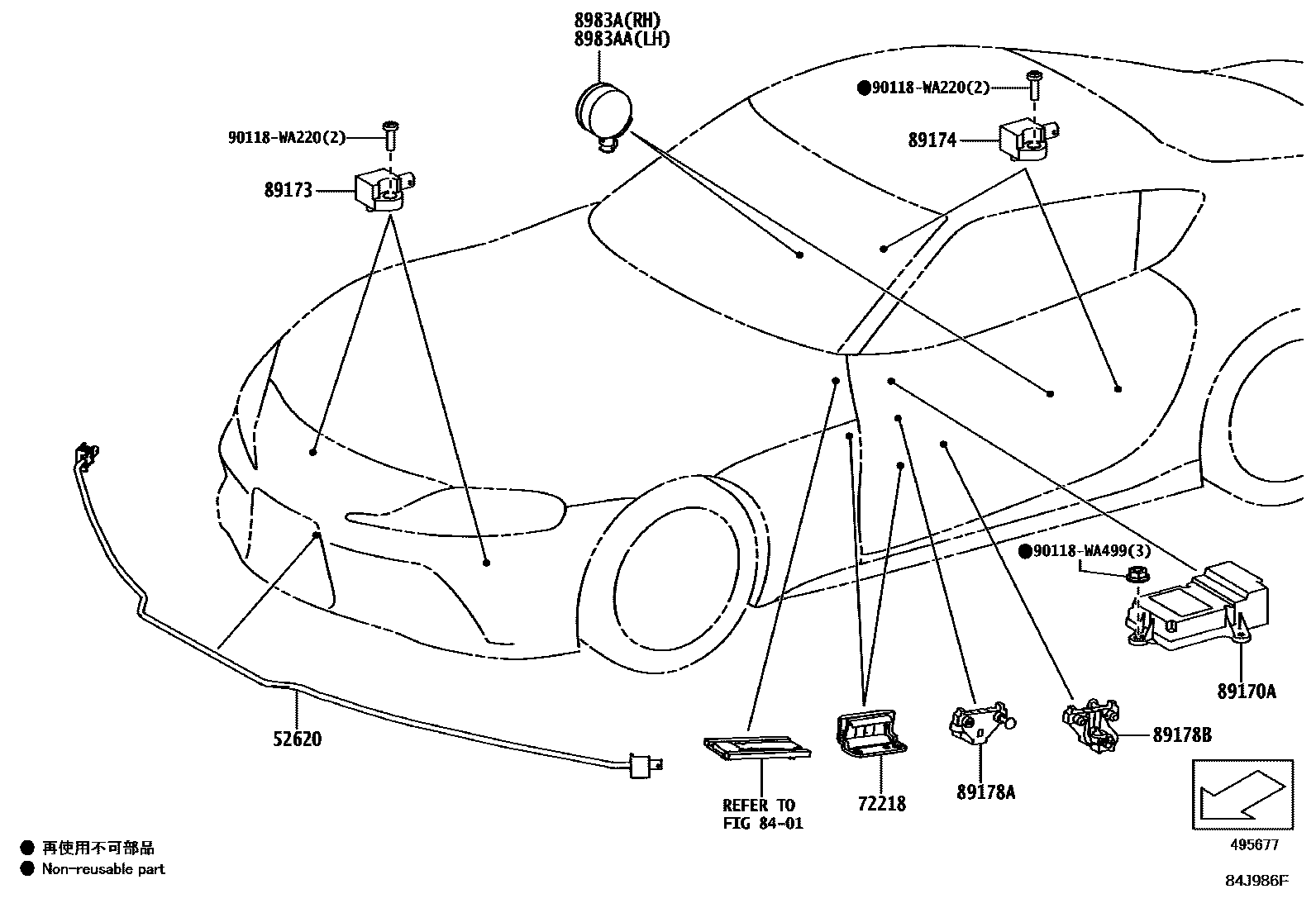

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-WAA01iDB22,82201903

72218MAGNET, SEAT POSITION SENSOR

main72218-WAA01iDB42201903-202002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89170ACOMPUTER ASSY, AIRBAG

main89170-WAA01iDB22,42,82201903-201907

main89170-WAA15iDB02202007-202211

main89170-WAA16iDB42201903-202002

main89170-WAA17iDB22,82201903-202403

main89170-WAA18iDB02; DB22,82202212-202403

main89170-WAA19iDB42201908-202002

main89170-WAA20iDB02; DB22,82202212-202403

main89170-WAA21iDB02; DB22,82202404

main89170-WAA22iDB02; DB22,82202404

main89170-WAA23iDB02; DB22,82202404

main89170-WAA24iDB02; DB22,82202404

89173SENSOR, AIRBAG, FRONT

main89190-WAA01×2iDB42201903-202002

89174SENSOR, AIRBAG

main89190-WAA02×2iDB42201903-202002

89178ASENSOR, SEAT POSITION AIRBAG

main89178-WAA03iDB42201903-202002

89178BSENSOR, SEAT POSITION AIRBAG, NO.2

main89178-WAA04iDB42201903-202002

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-WAA01iDB42201903-202002

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-WAA01iDB42201903-202002

90118WA220

main90118-WA220

90118WA499

main90118-WA499

12 parts on this diagram · 1 diagram in section
