CLEARANCE & BACK SONAR

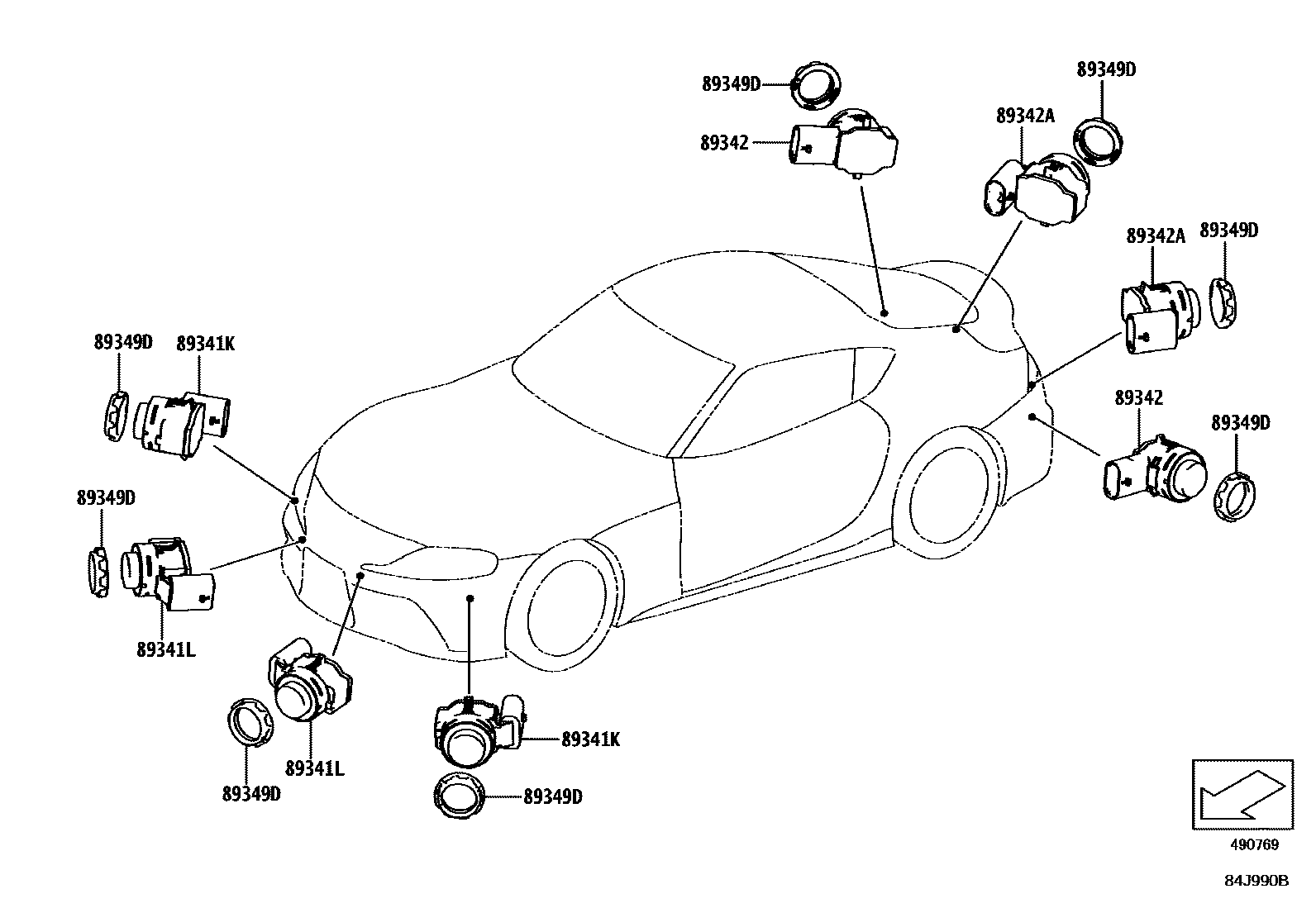

Parts diagram
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-WAA05×2i201903-202007
main89341-WAA08×2i201903-202002
main89341-WAA11×2i201903-202002
main89341-WAA14×2i201903-202002
main89341-WAA17×2i201903-202002
main89341-WAA20×2i201903-202002
main89341-WAA23×2i201903-202002
main89341-WAA26×2i201903-202007
main89341-WAA30×2i201903-202002
main89341-WAA35×2i202007
main89341-WAA38×2i202008
main89341-WAA41×2i202008
main89341-WAA44×2i202008
main89341-WAA47×2i202008
main89341-WAA50×2i202008
main89341-WAA54×2i202008
main89341-WAA57×2i202008
main89341-WAA60×2i202007
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-WAA05×2i201903-202002
main89341-WAA08×2i201903-202007
main89341-WAA11×2i201903-202007
main89341-WAA14×2i201903-202002
main89341-WAA17×2i201903-202002
main89341-WAA20×2i201903-202007
main89341-WAA23×2i201903-202002
main89341-WAA26×2i201903-202002
main89341-WAA30×2i201903-202002
main89341-WAA35×2i202007
main89341-WAA38×2i202008
main89341-WAA41×2i202007
main89341-WAA44×2i202008
main89341-WAA47×2i202008
main89341-WAA50×2i202008
main89341-WAA54×2i202007
main89341-WAA57×2i202008
main89341-WAA60×2i202007
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-WAA04×2i201903-202002
main89341-WAA07×2i201903-202007
main89341-WAA10×2i201903-202002
main89341-WAA13×2i201903-202002
main89341-WAA16×2i201903-202002
main89341-WAA19×2i201903-202002
main89341-WAA22×2i201903-202007
main89341-WAA25×2i201903-202002
main89341-WAA28×2i201903-202007
main89341-WAA34×2i202008
main89341-WAA37×2i202007
main89341-WAA40×2i202007
main89341-WAA43×2i202007
main89341-WAA46×2i202007
main89341-WAA53×2i202008
main89341-WAA56×2i202007
main89341-WAA59×2i202007
main89341-WAA62×2i202007
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-WAA05×2i201903-202002
main89341-WAA50×2i202007
89349DRING, O (FOR ULTRASONIC SENSOR)
main89348-WAA01×12i201903-202002

5 parts on this diagram · 3 diagrams in section
