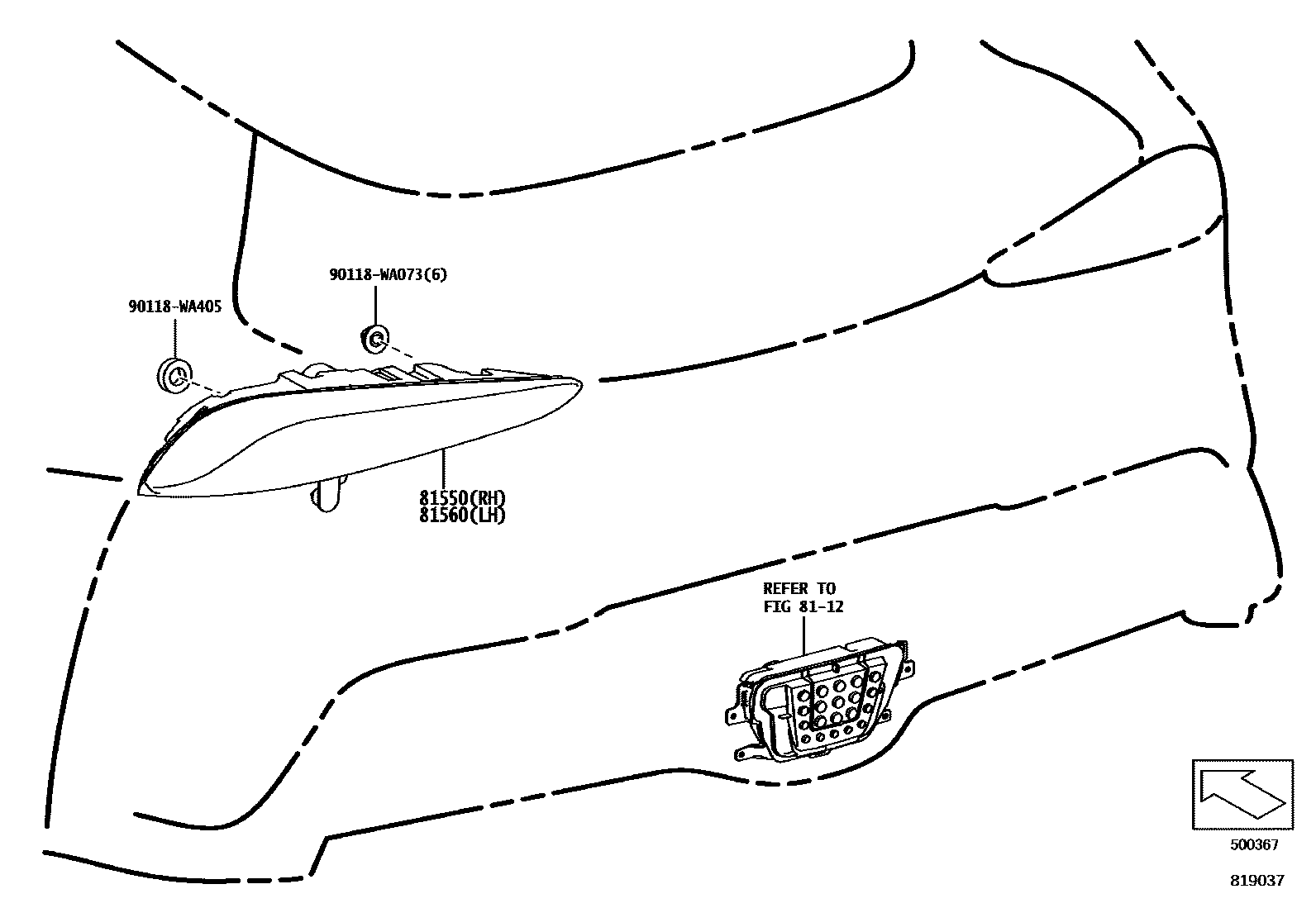

REAR COMBINATION LAMP

8112BACK UP LAMP

→ Go to FIG 81-12

81550LAMP ASSY, REAR COMBINATION, RH

main81550-WAA01iDB42201903-202002

main81550-WAA03iDB02,22,82202103

81560LAMP ASSY, REAR COMBINATION, LH

main81560-WAA01iDB42201903-202002

main81560-WAA03iDB02,22,82202103

90118WA073

main90118-WA073

90118WA405

main90118-WA405

5 parts on this diagram · 1 diagram in section
