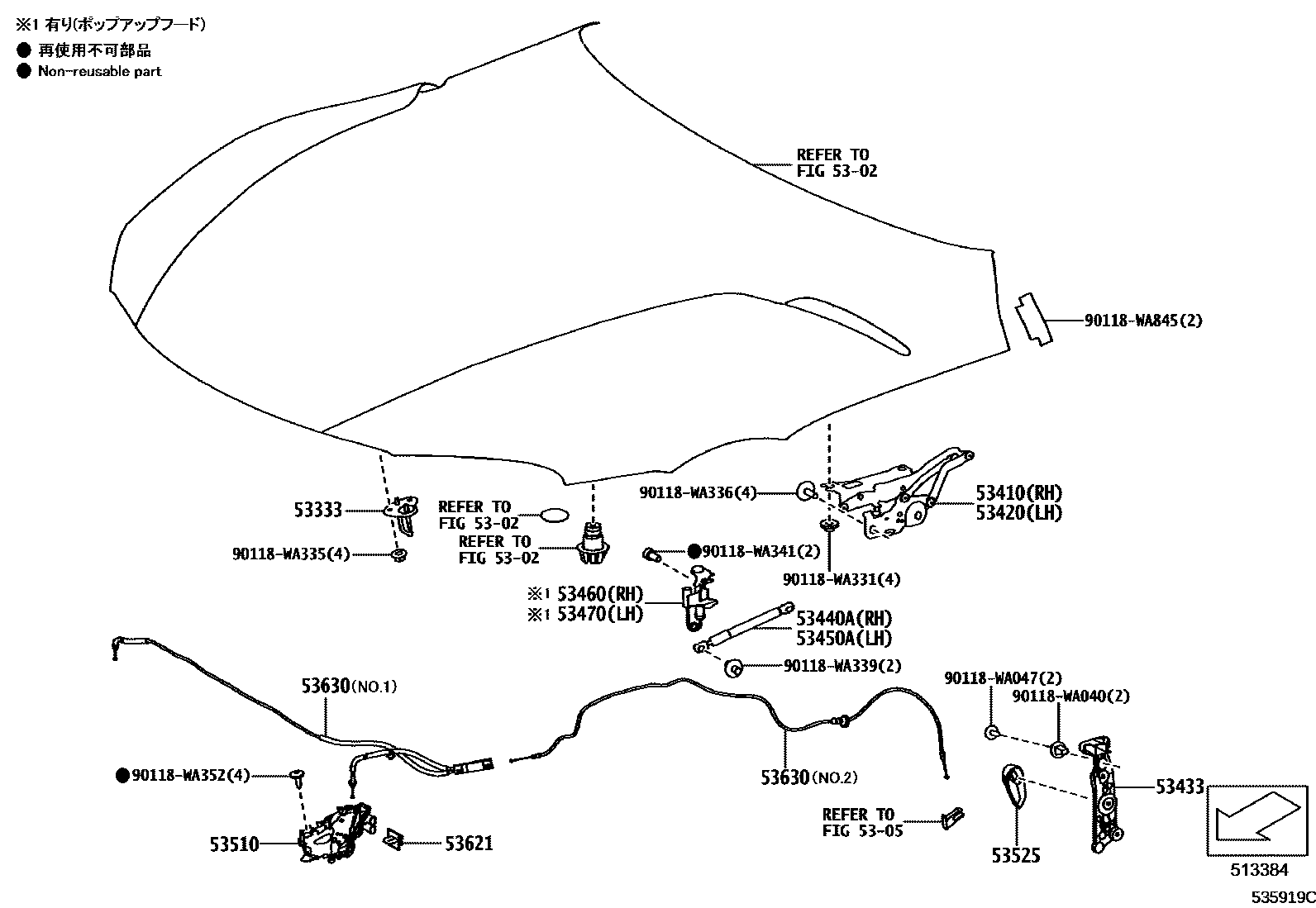

HOOD LOCK & HINGE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53333STRIKER, HOOD LOCK

main53306-WAA01×2iDB42201903-202002

53410HINGE ASSY, HOOD, RH

main53410-WAA01iDB42201903-202002

53420HINGE ASSY, HOOD, LH

main53420-WAA01iDB42201903-202002

53433BRACKET, HOOD SUPPORT

main55771-WAA02iDB42201903-202002

53440ASUPPORT ASSY, HOOD, RH

main53440-WAA01iDB42201903-202002

53450ASUPPORT ASSY, HOOD, LH

main53440-WAA01iDB42201903-202002

53460LIFTER ASSY, POP UP HOOD, RH

main53460-WAA01iDB42201903-202002

53470LIFTER ASSY, POP UP HOOD, LH

main53470-WAA01iDB42201903-202002

53510LOCK ASSY, HOOD

main53510-WAA02supersedes 53510-WAA03iDB02202007

main53510-WAA04supersedes 53510-WAA03iDB42201903-202002

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53601-WAA02iDB22,82201903

53621BRACKET, HOOD LOCK CONTROL CABLE

main90118-WA337×3iDB42201903-202002

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WAA01iDB02202007

main63630-WAA01iDB22,82201903

90118WA040

main90118-WA040

90118WA047

main90118-WA047

90118WA331

main90118-WA331

90118WA335

main90118-WA335

90118WA336

main90118-WA336

90118WA339

main90118-WA339

90118WA341

main90118-WA341

90118WA352

main90118-WA352

90118WA845

main90118-WA845

23 parts on this diagram · 1 diagram in section
