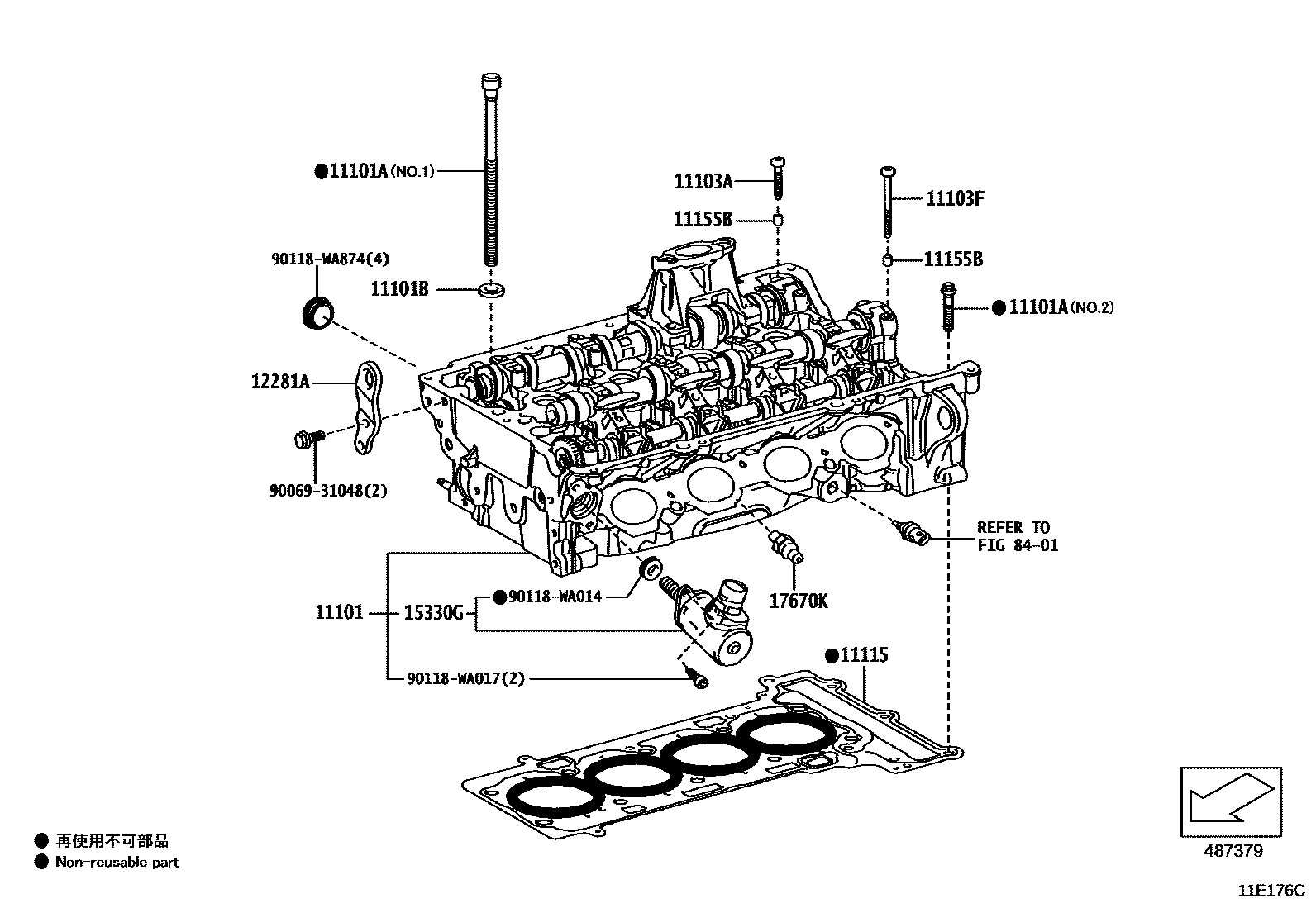

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

11101HEAD SUB-ASSY, CYLINDER

main11107-WAA01iB48#..DB22,82201903-202001

main11107-WAA02iB58..DB42201903-202002

main11107-WAA03iB58H..DB02202007

main11107-WAA04iB48#..DB22,82202002

11101ABOLT(FOR CYLINDER HEAD SET)

main90069-31051×5iB48#..DB22,82201903

main90118-WA011×14iB58H..DB02202007

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90118-WA005×14iB58..DB42201903-202002

11103ABOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA212×22iB48#..DB22,82201903

main90118-WA766×18iB48#..DB22,82201903

11103FBOLT(FOR CAMSHAFT HOUSING SET)

main90118-WA213×5iB48#..DB22,82201903

main90118-WA765×9iB48#..DB22,82201903

11115GASKET, CYLINDER HEAD

main11115-WAA01iB48#..DB22,82201903

main11115-WAA02iB48#..DB22,82201903

main11115-WAA03iB58..DB42201903-202002

main11115-WAA04iB58..DB42201903-202002

11155BPIN, RING

main90118-WA006×17iB48#..DB22,82201903

12281AHANGER, ENGINE, NO.1

main12281-WAA01iB58..DB42201903-202002

15330GMOTOR, SERVO

main15330-WAA01iB48#..DB22,82201903

main15330-WAA02iB58..DB42201903-202002

17670KVALVE ASSY, AIR BY-PASS

main17670-WAA01iB58..DB42201903-202002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9006931048

main90069-31048

90118WA014

main90118-WA014

90118WA017

main90118-WA017

90118WA874

main90118-WA874

15 parts on this diagram · 10 diagrams in section
