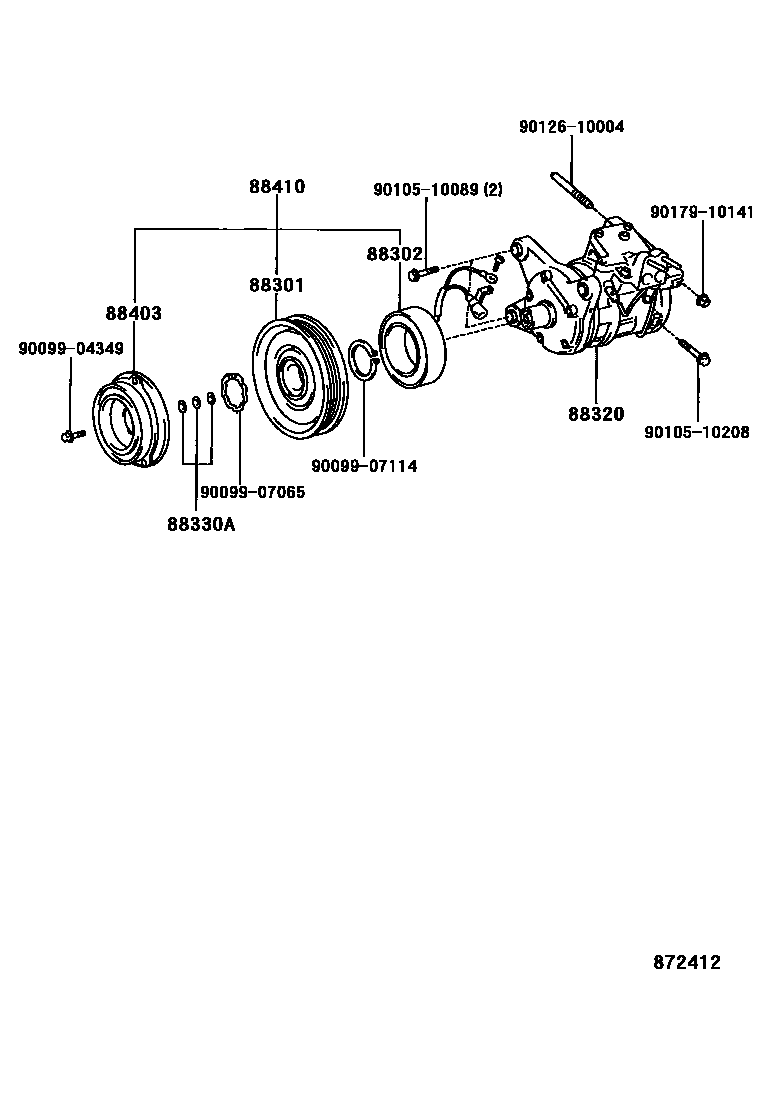

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-30410iJZA80199305-199908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2B090iJZA80199305-199908

88320COMPRESSOR ASSY, COOLER

main88320-14600iJZA80199305-199908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iJZA80199305-199908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iJZA80199305-199908

88410CLUTCH ASSY, MAGNET

main88410-14230iJZA80199305-199908

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910141

main90179-10141

13 parts on this diagram · 1 diagram in section
