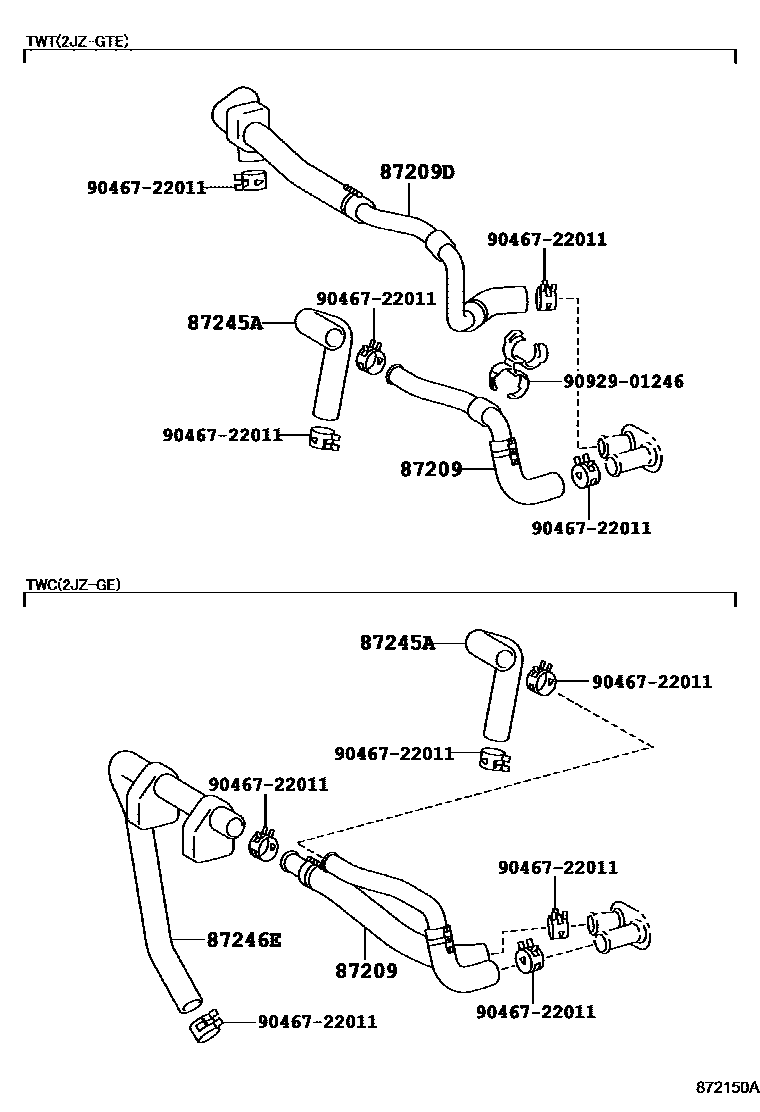

HEATING & AIR CONDITIONING - WATER PIPING

87209HOSE SUB-ASSY, WATER

main87209-14800iJZA80..TWT199305-199709

main87209-14820iJZA80..TWC199305-199908

main87209-14880iJZA80..TWT199709-200208

87209DHOSE SUB-ASSY, WATER, D

main87209-14810iJZA80..TWT199305-199709

main87209-14870iJZA80..TWT199709-200208

87245AHOSE, HEATER WATER, INLET A

main87245-1B300iJZA80199305-199709

main87245-1B360iJZA80..TWT199709

87246EHOSE, HEATER WATER, OUTLET E

main87245-1B350iJZA80..TWC199908

9046722011

main90467-22011

9092901246

main90929-01246

6 parts on this diagram · 1 diagram in section
