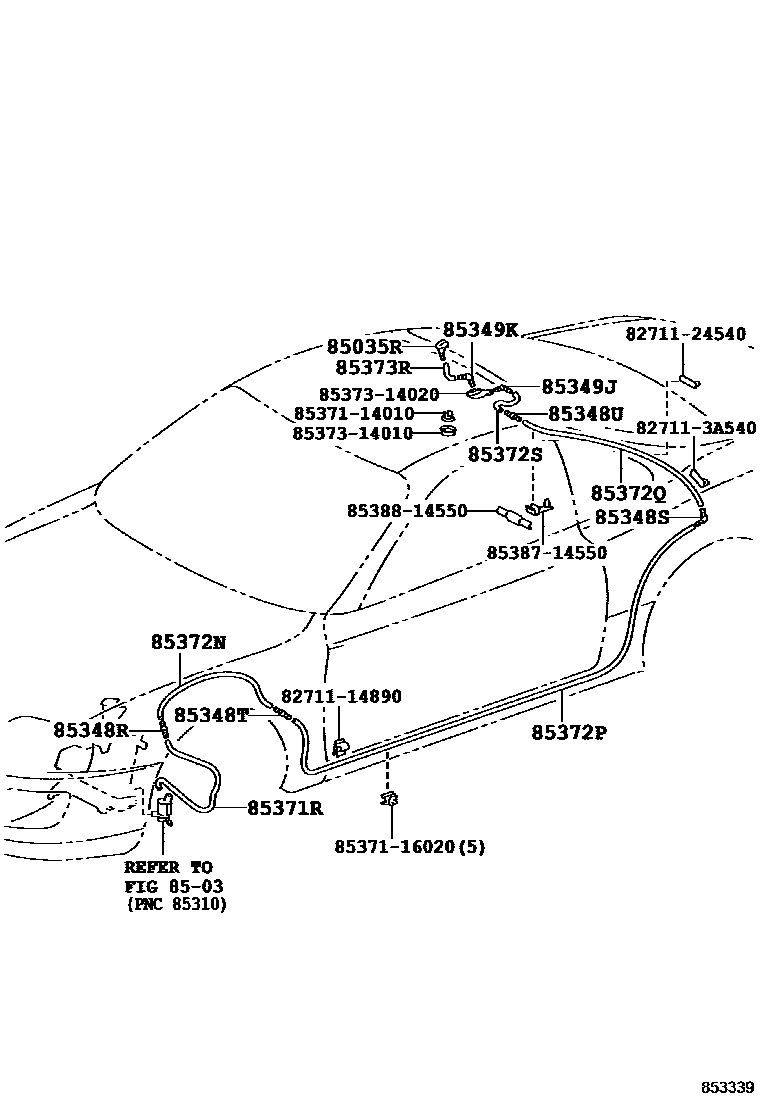

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-14010iJZA80199305-199908

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iJZA80199305-199908

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iJZA80199305-199908

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iJZA80199305-199908

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iJZA80199305-199908

85349JJOINT, REAR WASHER HOSE, NO.4

main85375-14560iJZA80199305-199908

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iJZA80199305-199908

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iJZA80199305-199908

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iJZA80199305-199908

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iJZA80199305-199908

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iJZA80199305-199908

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iJZA80199305-199908

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iJZA80199305-199908

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24540

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537114010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-14010

8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16020

8537314010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-14010

8537314020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-14020

8538714550CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-14550

8538814550CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-14550

23 parts on this diagram · 1 diagram in section
