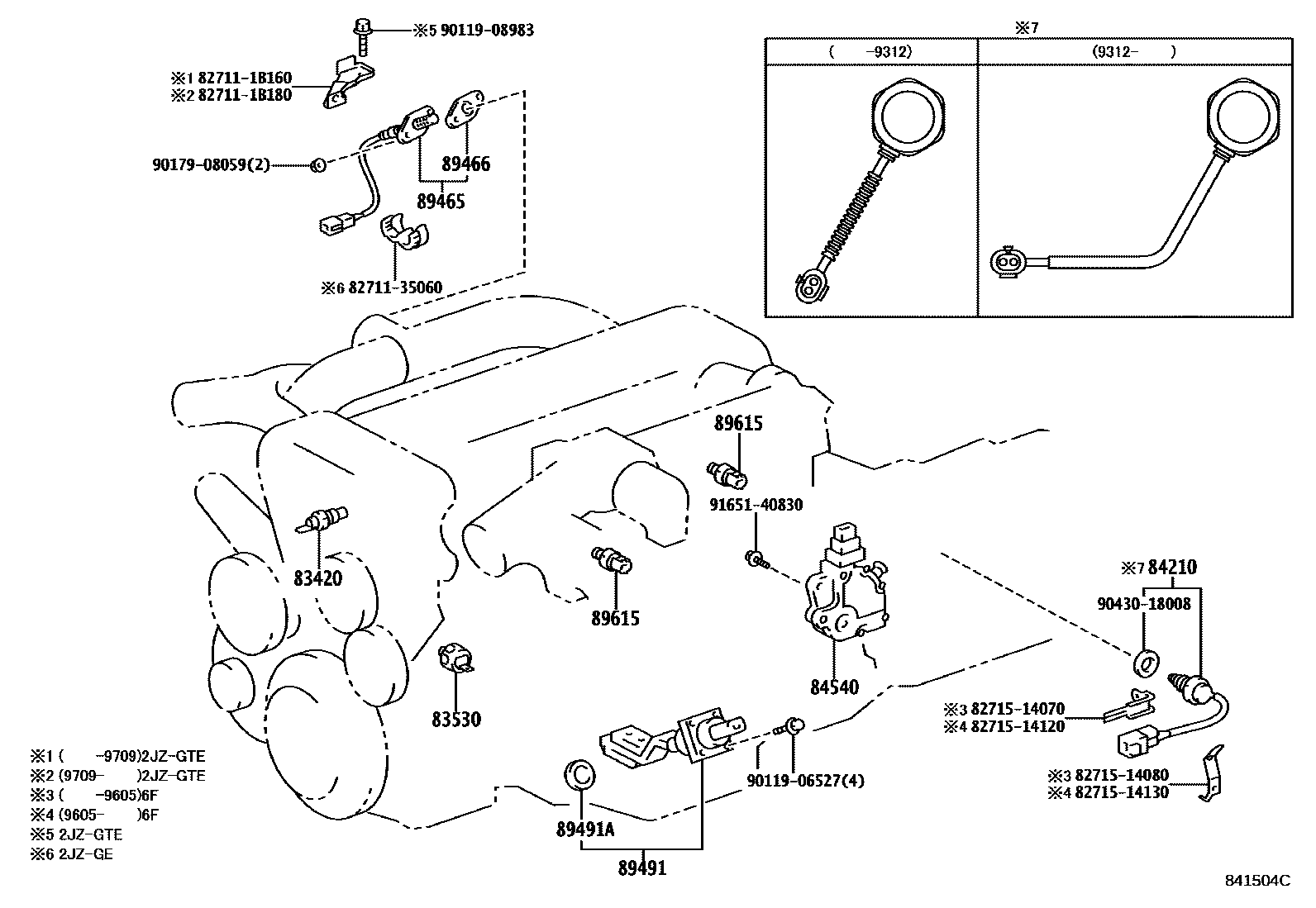

SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040i199605-199908

main83420-16040i199305-199605

main83420-16050i199305-199411

sub83420-20040

main83420-20030i199305-199506

sub83420-16040

main83420-20040i199411

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060i199305-199411

sub83530-30090

main83530-28020i199802-199908

main83530-30090i199605-199712

sub83530-60020

main83530-30090i199305-199605

sub83530-60020

main83530-60020i199712-199802

main83530-60020i199802-199908

84210SWITCH ASSY, BACK-UP LAMP

main84210-14030i199305-199312

sub84210-14040

main84210-14040i199404

main84210-30060i199305

main84210-60030i199312-199403

84540SWITCH ASSY, NEUTRAL START

main84540-30270i199305-199908

89465SENSOR, OXYGEN

main89465-19615i199305-199908

main89465-19635i199305-199709

main89465-19725i199709

89466GASKET, OXYGEN SENSOR

main89466-20020i199305-199908

89491SENSOR, ENGINE OIL LEVEL

main89491-14070i199305-199605

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001i199305-199605

89615SENSOR, KNOCK CONTROL

main89615-22030i199305-200208

main89615-22040i199305-200208

main89615-30060i199709-199908

sub89615-30070

main89615-30070i199908-200208

827111B160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B160

827111B180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B180

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271514070BRACKET,WIRING HARNESS CLAMP

main82715-14070

8271514080BRACKET,WIRING HARNESS CLAMP

main82715-14080

8271514120BRACKET,WIRING HARNESS CLAMP

main82715-14120

8271514130BRACKET,WIRING HARNESS CLAMP

main82715-14130

9011906527

main90119-06527

9011908983

main90119-08983

9017908059

main90179-08059

9043018008

main90430-18008

9165140830

main91651-40830

21 parts on this diagram · 7 diagrams in section
