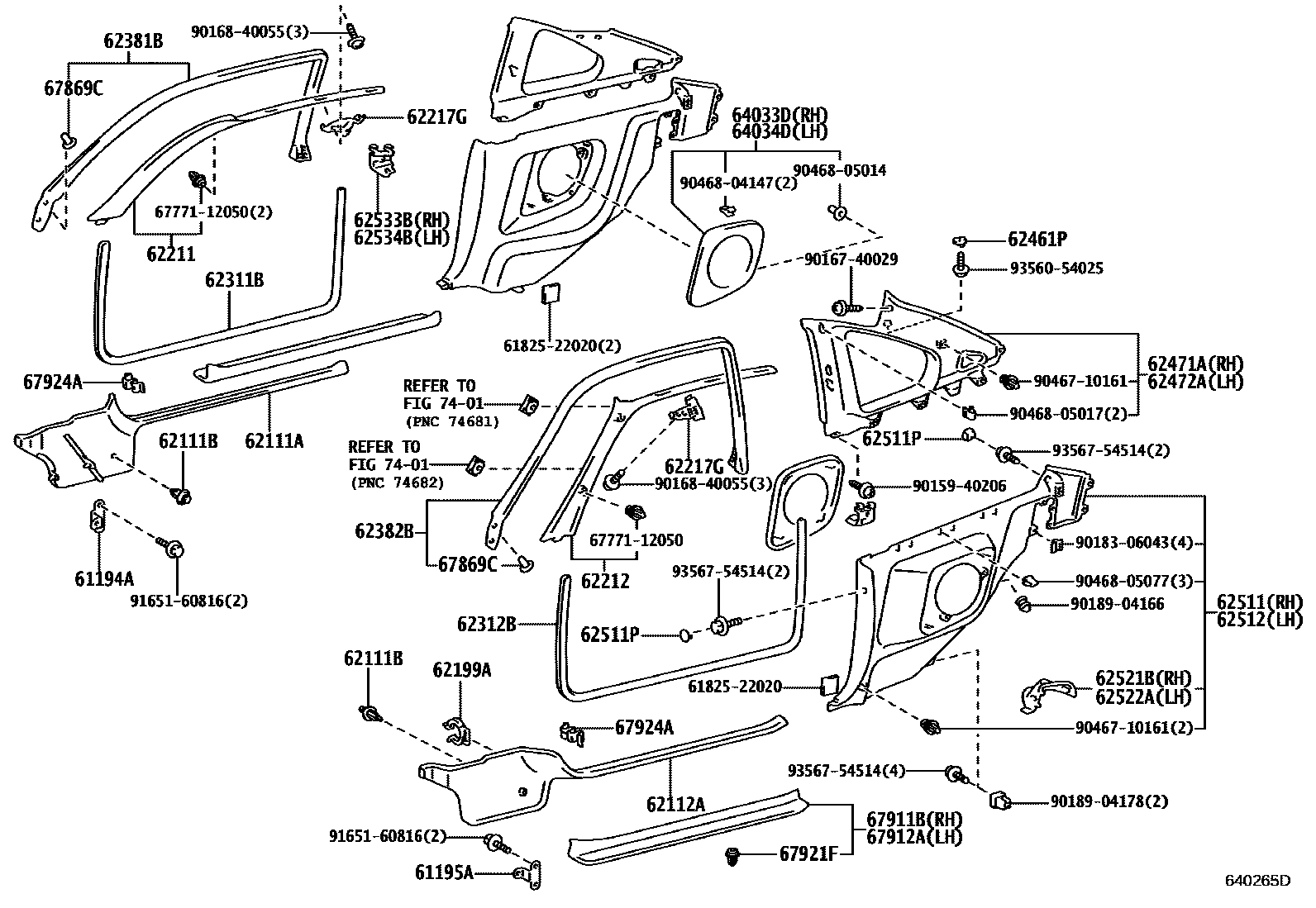

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61194ABRACKET, COWL SIDE TRIM, RH

main61194-14020iJZA80..LB199305

61195ABRACKET, COWL SIDE TRIM, LH

main61194-14020iJZA80..LB199305

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-14180-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-07043-C0×2iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-14240-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

62199AHOLDER, FUSEE

main90468-25004×2iJZA80199908

62211GARNISH, FRONT PILLAR, RH

main62210-14060-C0iJZA80..LB..GZ199305-199605

BLACK,TRIM0#,2#

main62210-14080-C0iJZA80..AET..(RZ,SZ)199305-199908

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-14060-C0iJZA80..LB..(RZ,RZS,SZ,SZR)199305

BLACK,TRIM2#

main62220-14080-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-14020×6iJZA80..LB199305

main62217-14030×2iJZA80..AET199305-199908

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-14070iJZA80199305-199908

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-14070iJZA80199305-199908

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14140iJZA80..LB199305

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14150iJZA80..LB199305

62461PPLUG, HOLE (FOR ROOF SIDE INNER GARNISH)

main90950-01503-C0×2iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-14290-C0iJZA80..GZ; JZA80..RZ,SZ,SZR199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62471-14291-C0iJZA80..GZ; JZA80..RZ,RZS,SZ,SZR199505-199605

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62471-14292-C0iJZA80199605

BLACK,TRIM2#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-14280-C0iJZA80..GZ; JZA80..RZ,SZ,SZR199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62472-14281-C0iJZA80..GZ; JZA80..RZ,RZS,SZ,SZR199505-199605

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62472-14282-C0iJZA80199605

BLACK,TRIM2#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-1B160-C0iJZA80..LB..(RZ,SZ,SZR); JZA80..LB..GZ199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62510-1B161-C0iJZA80..GZ; JZA80..LB..(RZ,RZS,SZ,SZR)199505-199605

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62510-1B162-C0iJZA80..LB199605

BLACK,TRIM2#

main62510-1B170-C0iJZA80..AET..(RZ,SZ); JZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62510-1B171-C0iJZA80..AET199505-199605

BLACK,TRIM2#

main62510-1B172-C0iJZA80..AET199605-199908

BLACK,TRIM2#

62511PPLUG, QUARTER TRIM BOARD

main90950-01503-C0×4iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-1B150-C0iJZA80..LB..(RZ,SZ,SZR); JZA80..LB..GZ199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62520-1B151-C0iJZA80..GZ; JZA80..LB..(RZ,RZS,SZ,SZR)199505-199605

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62520-1B152-C0iJZA80..LB199605

BLACK,TRIM2#

main62520-1B160-C0iJZA80..AET..(RZ,SZ); JZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62520-1B161-C0iJZA80..AET199505-199605

BLACK,TRIM2#

main62520-1B162-C0iJZA80..AET199605-199908

BLACK,TRIM2#

62521BCOVER, QUARTER TRIM, RH

main62521-14120-C0iJZA80..LB..(RZ,RZS,SZ,SZR)199305

BLACK,TRIM2#

main62521-14130-C0iJZA80..AET..(RZ,SZ)199305-199908

BLACK,TRIM2#

62522ACOVER, QUARTER TRIM, LH

main62522-14110-C0iJZA80..LB..(RZ,RZS,SZ,SZR)199305

BLACK,TRIM2#

main62522-14120-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

62533BBRACKET, QUARTER TRIM, RH

main62533-14080iJZA80199305-199908

62534BBRACKET, QUARTER TRIM, LH

main62534-14050iJZA80199908

64033DGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14090-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

64034DGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-14080-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020×10iJZA80..LB199305

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-14030-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-14020-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-32010×10iJZA80199305-199908

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-14010×2iJZA80199305-199908

7401ARMREST & VISOR

→ Go to FIG 74-01

6182522020PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-22020

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9015940206

main90159-40206

9016740029

main90167-40029

9016840055

main90168-40055

9018306043

main90183-06043

9018904166

main90189-04166

9018904178

main90189-04178

9046710161

main90467-10161

9046804147

main90468-04147

9046805014

main90468-05014

9046805017

main90468-05017

9046805077

main90468-05077

9165160816

main91651-60816

9356054025

main93560-54025

9356754514

main93567-54514

47 parts on this diagram · 2 diagrams in section
