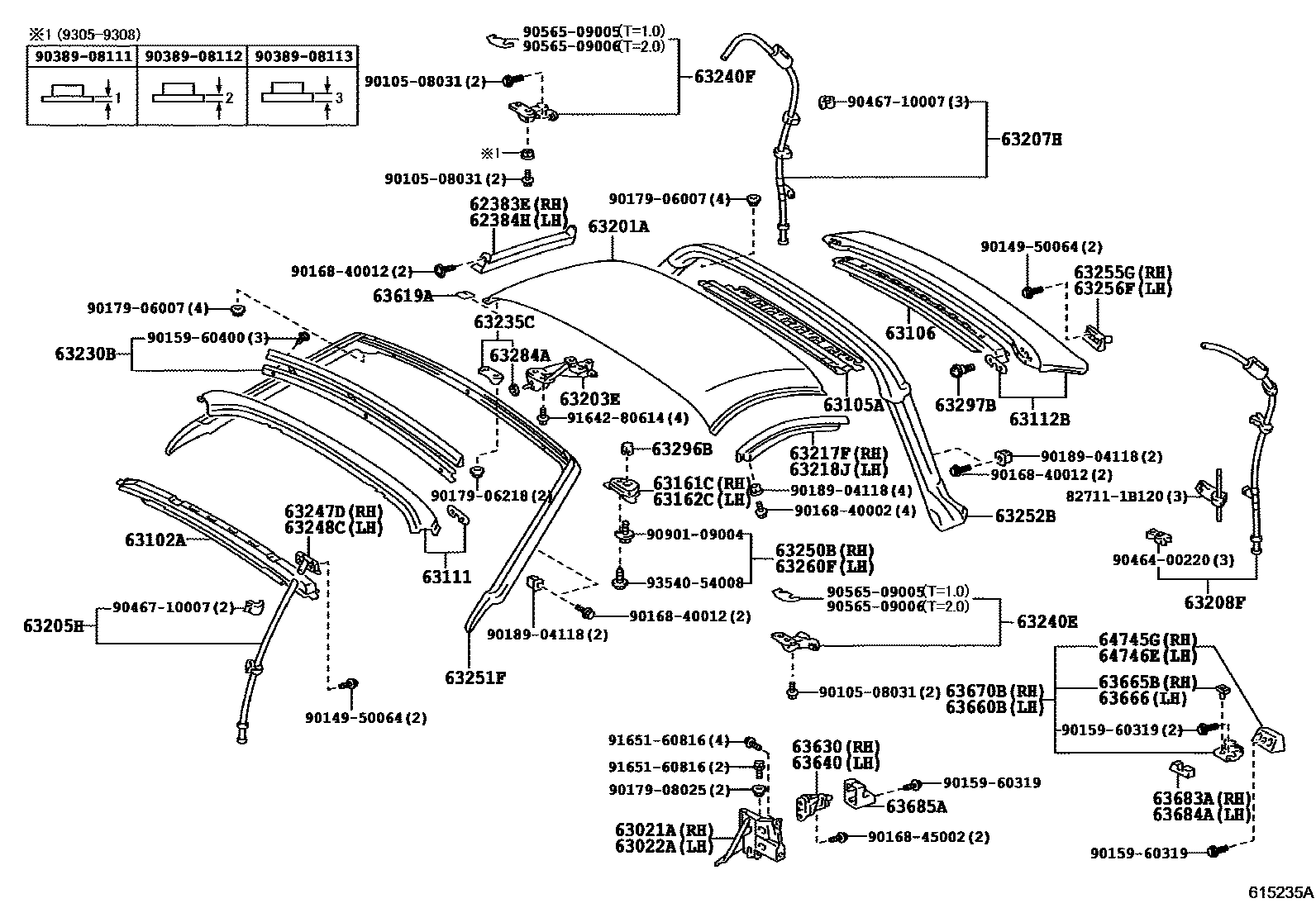

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

62383EWEATHERSTRIP, ROOF SIDE RAIL, NO.3 RH

main62383-14030iJZA80..AET199305-199908

62384HWEATHERSTRIP, ROOF SIDE RAIL, NO.3 LH

main62384-14030iJZA80..AET199305-199908

63021ARETAINER SUB-ASSY, REMOVE ROOF HOLDER, RH

main63021-14010iJZA80..AET199305-199908

63022ARETAINER SUB-ASSY, REMOVE ROOF HOLDER, LH

main63022-14010iJZA80..AET199305-199908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-14120iJZA80..AET199305-199908

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-14060iJZA80199305

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-14010iJZA80..AET199305-199908

63111PANEL, ROOF

main63111-14220iJZA80..LB199305

main63111-14900iJZA80..AET199305-199908

63112BPANEL, ROOF, REAR

main63112-14900iJZA80..AET199305-199908

63161CPROTECTOR, WINDSHIELD HEADER, RH

main63161-14030iJZA80..AET199305-199908

63162CPROTECTOR, WINDSHIELD HEADER, LH

main63162-14020iJZA80..AET199305-199908

63201APANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

main63201-14060iJZA80..AET199305-199908

63203ELOCK SUB-ASSY, REMOVABLE ROOF, RH

main63203-14100iJZA80..AET199305-199908

63205HHOSE SUB-ASSY, REMOVE ROOF DRAIN, FRONT

main63205-14030×2iJZA80..AET199305-199908

63207HHOSE SUB-ASSY, REMOVE ROOF DRAIN, REAR RH

main63207-14030iJZA80..AET199305-199908

63208FHOSE SUB-ASSY, REMOVE ROOF DRAIN, REAR LH

main63208-14030iJZA80..AET199305-199908

63217FMOULDING, REMOVABLE ROOF, RH

main63217-14030-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63218JMOULDING, REMOVABLE ROOF, LH

main63218-14020-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63230BPANEL ASSY, ROOF WIND DEFLECTOR

main63230-14040iJZA80..AET199305-199908

63235CBRACKET, REMOVABLE ROOF LOCK

main63235-14020iJZA80..AET199305-199908

63240EBRACKET ASSY, REMOVABLE ROOF

main63240-14060iJZA80..AET199305-199908

63240FBRACKET ASSY, REMOVABLE ROOF

main63240-14090iJZA80..AET199305-199908

63247DBRACKET, REMOVABLE ROOF DRAIN, FRONT RH

main63247-14030iJZA80..AET199305-199908

63248CBRACKET, REMOVABLE ROOF DRAIN, FRONT LH

main63248-14040iJZA80..AET199305-199908

63250BCOVER ASSY, REMOVABLE ROOF BOLT, RH

main63250-14030iJZA80..AET199305-199908

63251FWEATHERSTRIP, REMOVABLE ROOF, FRONT

main63251-14050iJZA80..AET199305-199908

63252BWEATHERSTRIP, REMOVABLE ROOF, REAR

main63252-14020iJZA80..AET199305-199908

63255GBRACKET, REMOVABLE ROOF DRAIN, REAR RH

main63255-14040iJZA80..AET199305-199908

63256FBRACKET, REMOVABLE ROOF DRAIN, REAR LH

main63256-14040iJZA80..AET199305-199908

63260FCOVER ASSY, REMOVABLE ROOF BOLT, LH

main63260-14040iJZA80..AET199305-199908

63284AGUIDE, REMOVABLE ROOF FEMALE

main63284-14010iJZA80..AET199305-199908

63296BCAP, REMOVABLE ROOF SIDE

main63296-14020×2iJZA80..AET199305-199908

63297BCAP, REMOVABLE ROOF SIDE, REAR

main63297-14020×2iJZA80..AET199305-199908

63619APROTECTOR, REMOVABLE ROOF PANEL, INNER

main63619-14020×2iJZA80..AET199305-199908

63630HOLDER ASSY, REMOVABLE ROOF, RH

main63630-14030iJZA80..AET199305-199908

63640HOLDER ASSY, REMOVABLE ROOF, LH

main63640-14020iJZA80..AET199305-199908

63660BSTAY ASSY, REMOVABLE ROOF, LH

main63660-14030-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63665BCUSHION, REMOVABLE ROOF STAY, RH

main63666-14010iJZA80..AET199305-199908

63666CUSHION, REMOVABLE ROOF STAY, LH

main63665-14010iJZA80..AET199305-199908

63670BSTAY ASSY, REMOVABLE ROOF, RH

main63670-14030-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63683ACOVER, REMOVABLE ROOF STAY SUPPORT, RH

main63683-14010-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63684ACOVER, REMOVABLE ROOF STAY SUPPORT, LH

main63683-14010-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

63685AGARNISH, REMOVABLE ROOF HOLDER

main63685-14020-C0iJZA80..AET..GZ199305-199505

main63686-14020-C0iJZA80..AET..GZ199305-199505

64745GCOVER, LOWER BACK SERVICE HOLE, RH

main64745-14070-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

64746ECOVER, LOWER BACK SERVICE HOLE, LH

main64746-14070-C0iJZA80..AET..GZ199305-199505

BLACK,TRIM0#,2#

827111B120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B120

9010508031

main90105-08031

9014950064

main90149-50064

9015960319

main90159-60319

9015960400

main90159-60400

9016840002

main90168-40002

9016840012

main90168-40012

9016845002

main90168-45002

9017906007

main90179-06007

9017906218

main90179-06218

9017908025

main90179-08025

9018904118

main90189-04118

9038908111

main90389-08111

9038908112

main90389-08112

9038908113

main90389-08113

9046400220

main90464-00220

9046710007

main90467-10007

9056509005

main90565-09005

9056509006

main90565-09006

9090109004

main90901-09004

9164280614

main91642-80614

9165160816

main91651-60816

9354054008

main93540-54008

68 parts on this diagram · 2 diagrams in section
