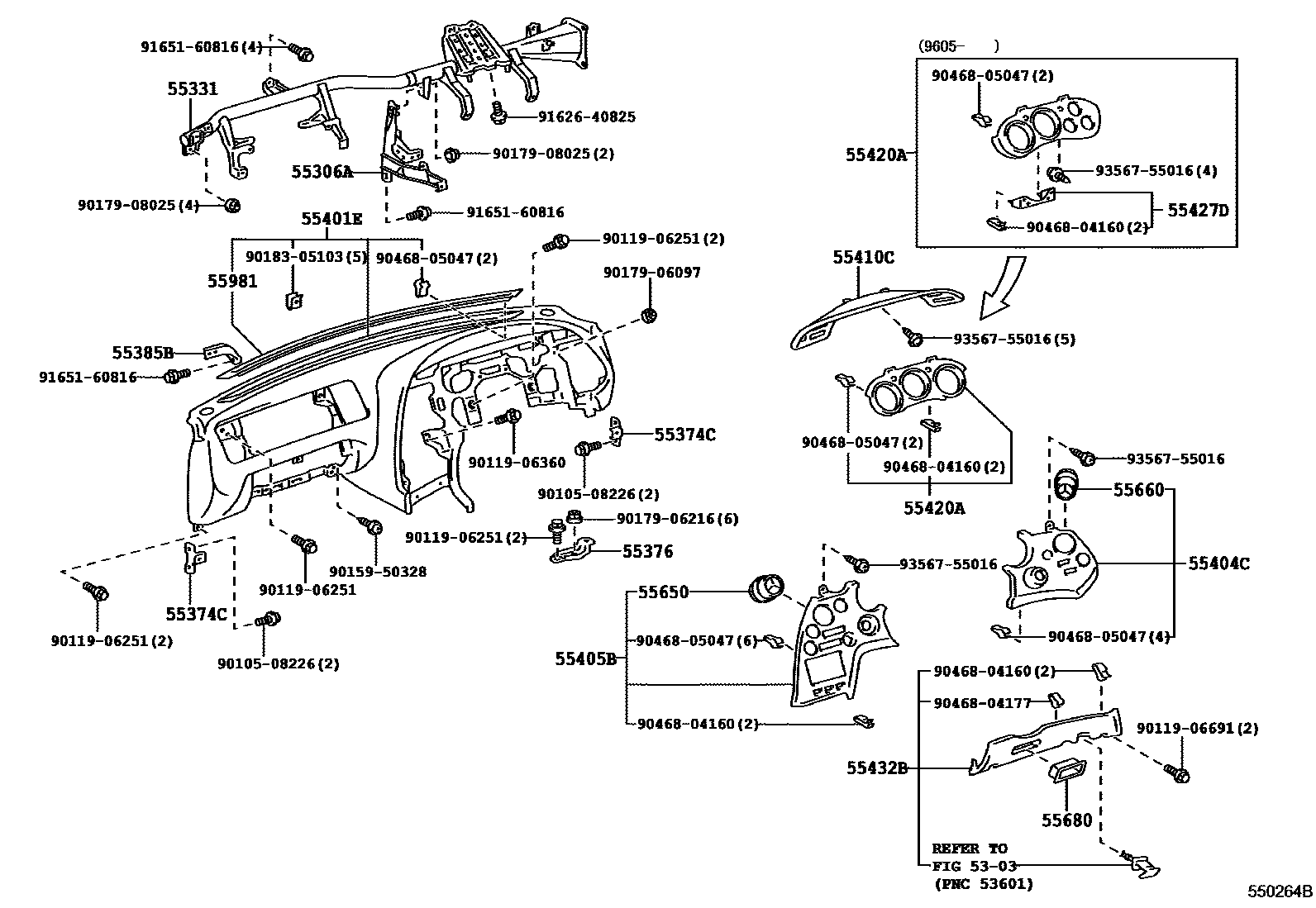

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-14110iJZA80199305

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14070iJZA80199305-199605

main55330-14080iJZA80199305-199605

main55330-14110iJZA80199605

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-14020×2iJZA80199305

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14050iJZA80199305

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-14020iJZA80199305

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-14500-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-14510iJZA80199305-199408

main55404-14550iJZA80199408-199605

main55404-14560iJZA80199605

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14120iJZA80199305-199605

main55405-14160iJZA80199605

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-14500iJZA80199305-199605

main55410-14520iJZA80199605

55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55420-14030iJZA80199305-199605

main55420-14050iJZA80199605

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-14070iJZA80199605

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14260-C0iJZA80..GZ199305-199605

BLACK,TRIM0#,2#

main55432-14261-C0iJZA80199705

BLACK,TRIM2#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14130iJZA80199305

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-14130iJZA80199305

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-89101-C0iJZA80..MTM..(RZ,SZ);JZA80..(4FC,6F)..(RZS,SZ,SZR)199305

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-14010iJZA80199305

9010508226

main90105-08226

9011906251

main90119-06251

9011906360

main90119-06360

9011906691

main90119-06691

9015950328

main90159-50328

9017906097

main90179-06097

9017906216

main90179-06216

9017908025

main90179-08025

9018305103

main90183-05103

9046804160

main90468-04160

9046804177

main90468-04177

9046805047

main90468-05047

9162640825

main91626-40825

9165160816

main91651-60816

9356755016

main93567-55016

32 parts on this diagram · 2 diagrams in section
