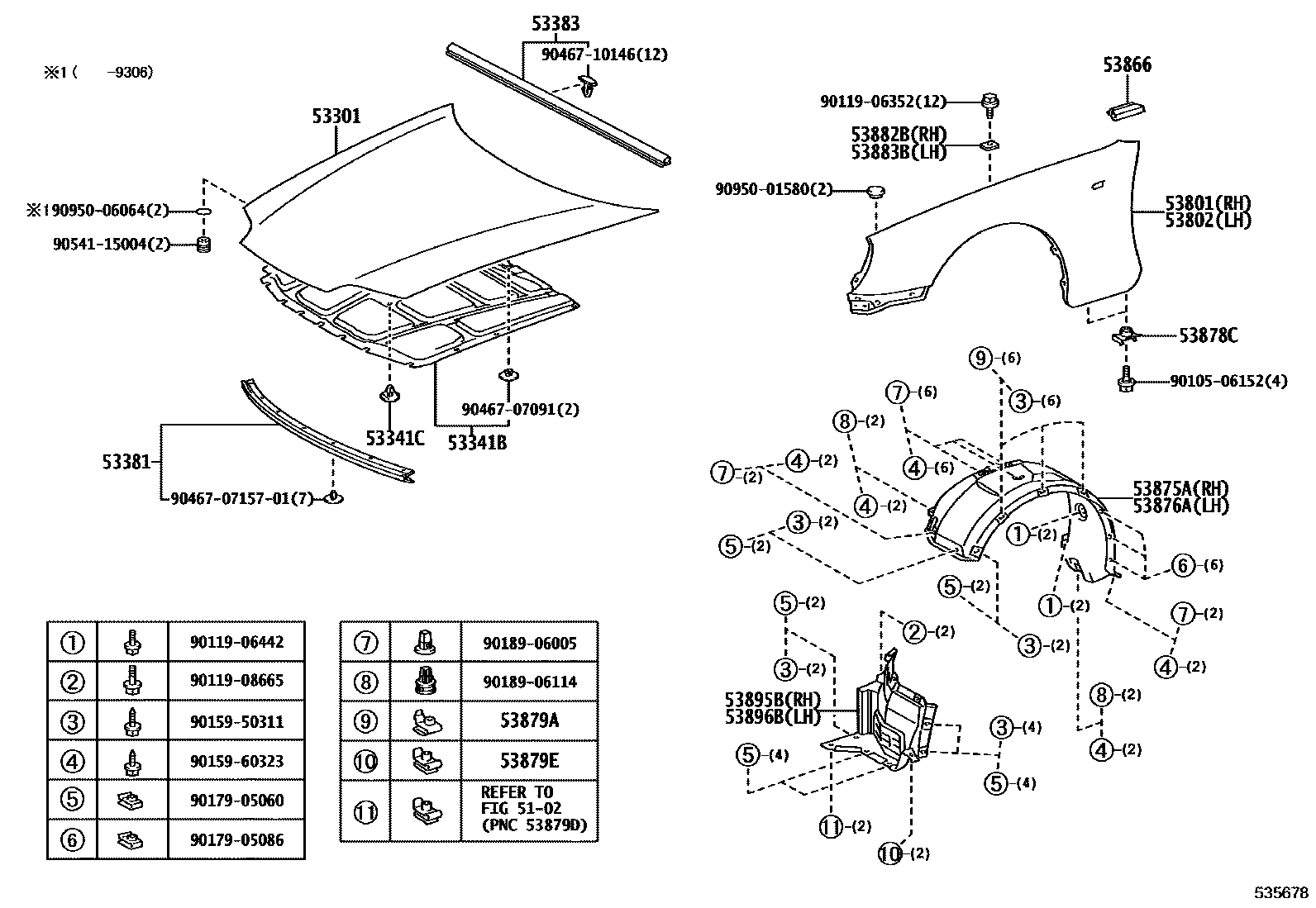

HOOD & FRONT FENDER

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

53301HOOD SUB-ASSY

main53301-14340iJZA80199305

53341BINSULATOR, HOOD

main53341-14110iJZA80199305

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×10iJZA80199305

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14130iJZA80199305

53383SEAL, HOOD TO COWL TOP

main53383-14110iJZA80199305

53801FENDER SUB-ASSY, FRONT RH

main53801-14880iJZA80199605

main53801-14890iJZA80199305-199408

main53801-1B010iJZA80199305-199605

53802FENDER SUB-ASSY, FRONT LH

main53802-14860iJZA80199605

main53802-14870iJZA80199305-199408

main53802-14880iJZA80199305-199605

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-14030×2iJZA80199305

53875ALINER, FRONT FENDER, RH

main53875-14190iJZA80199305

53876ALINER, FRONT FENDER, LH

main53876-14190iJZA80199305

53878CSPACER, FRONT FENDER

main53878-50010×4iJZA80199305

53879ARETAINER, FRONT FENDER LINER

main53879-22030×6iJZA80199305

53879ESPACER, FRONT FENDER, LH

main53879-17020×2iJZA80199305

53882BSEAL, FRONT FENDER, RH

main53882-16030×3iJZA80199305

53883BSEAL, FRONT FENDER, LH

main53882-16030×3iJZA80199305

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-14010iJZA80199305

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-14010iJZA80199305

9010506152

main90105-06152

9011906352

main90119-06352

9011906442

main90119-06442

9011908665

main90119-08665

9015950311

main90159-50311

9015960323

main90159-60323

9017905060

main90179-05060

9017905086

main90179-05086

9018906005

main90189-06005

9018906114

main90189-06114

9046707091

main90467-07091

904670715701

main90467-0715701

9046710146

main90467-10146

9054115004

main90541-15004

9095001580

main90950-01580

9095006064

main90950-06064

34 parts on this diagram · 1 diagram in section
