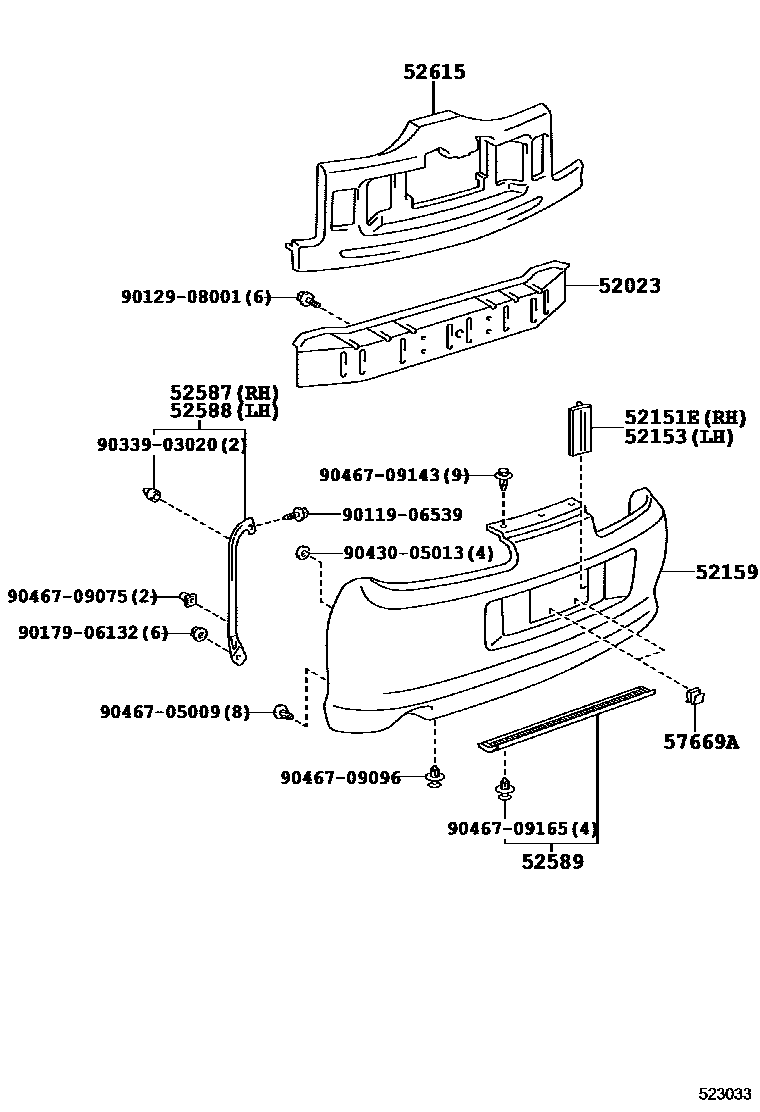

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52151EBAR, REAR BUMPER
SUPER WHITE 2,040
DARK BROWNISH GRAY M,1A1
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DEEP TEAL ME,752
52153BAR, REAR BUMPER, LH
SUPER WHITE 2,040
DARK BROWNISH GRAY M,1A1
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DEEP TEAL ME,752
52159COVER, REAR BUMPER
SUPER WHITE 2,040
DARK BROWNISH GRAY M,1A1
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DEEP TEAL ME,752
SUPER WHITE 2,040
DARK BROWNISH GRAY M,1A1
SILVER ME,199
SILVER GR.SF.,1B9
BLACK,202
SUPER RED 4,3L2
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
DK.GREEN M.M.,6P3
GRAYISH GREEN M.M.,6N0
DEEP TEAL ME,752
BLUE M.M.,8L5
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52589RETAINER, REAR BUMPER END, NO.2
52615ABSORBER, REAR BUMPER ENERGY
57669ABRACKET, REAR LICENSE PLATE SUPPORT
9011906539
main90119-06539
9012908001
main90129-08001
9017906132
main90179-06132
9033903020
main90339-03020
9043005013
main90430-05013
9046705009
main90467-05009
9046709075
main90467-09075
9046709096
main90467-09096
9046709143
main90467-09143
9046709165
main90467-09165
19 parts on this diagram · 1 diagram in section
