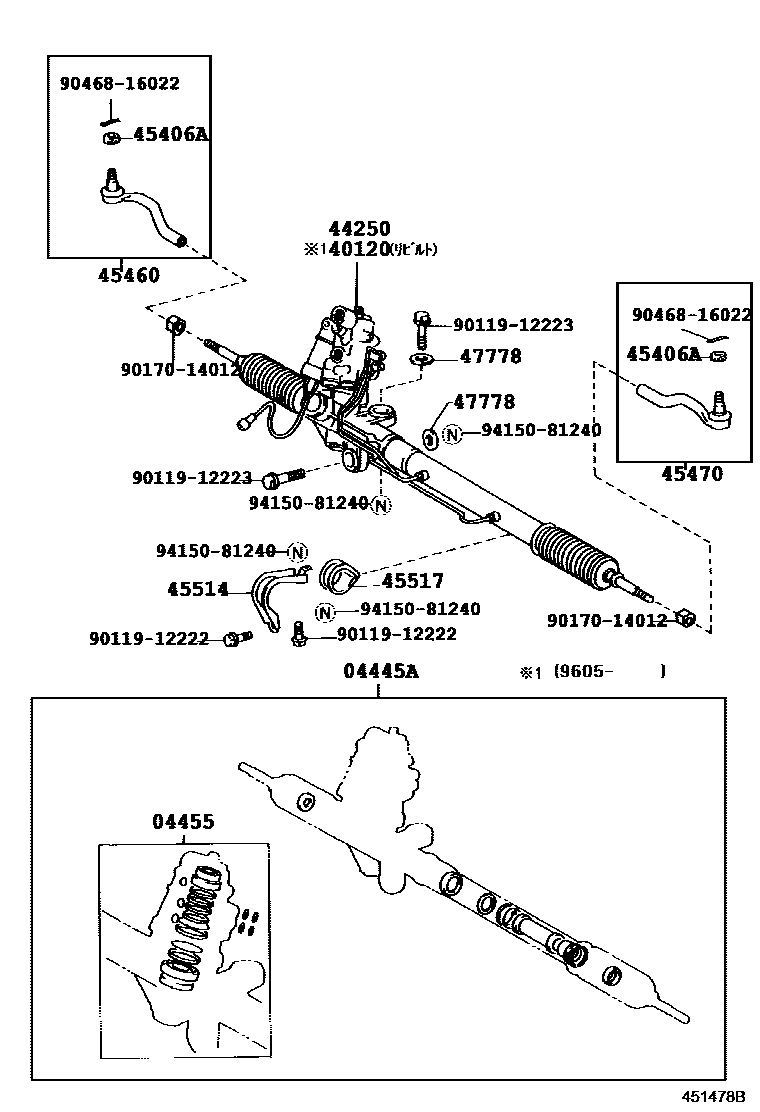

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-14040iJZA80199305-200208

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24051iJZA80199305-200208

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-14230iJZA80199605-200208

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14210iJZA80199305-199408

sub89656-14010

main44250-14211iJZA80199408-199505

sub89650-14093

main44250-14212iJZA80199505-199605

sub89650-14093

main44250-14230iJZA80199605-200208

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12002×2iJZA80199305

45460ROD ASSY, TIE, RH

main45460-19235iJZA80199305-200208

45470ROD ASSY, TIE, LH

main45470-19065iJZA80199305-200208

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-24030iJZA80199305

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14040iJZA80199305

47778RETAINER, STEERING RACK HOUSING

main47778-24010×2iJZA80199305

9011912222

main90119-12222

9011912223

main90119-12223

9017014012

main90170-14012

9046816022

main90468-16022

9415081240

main94150-81240

15 parts on this diagram · 3 diagrams in section
