TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

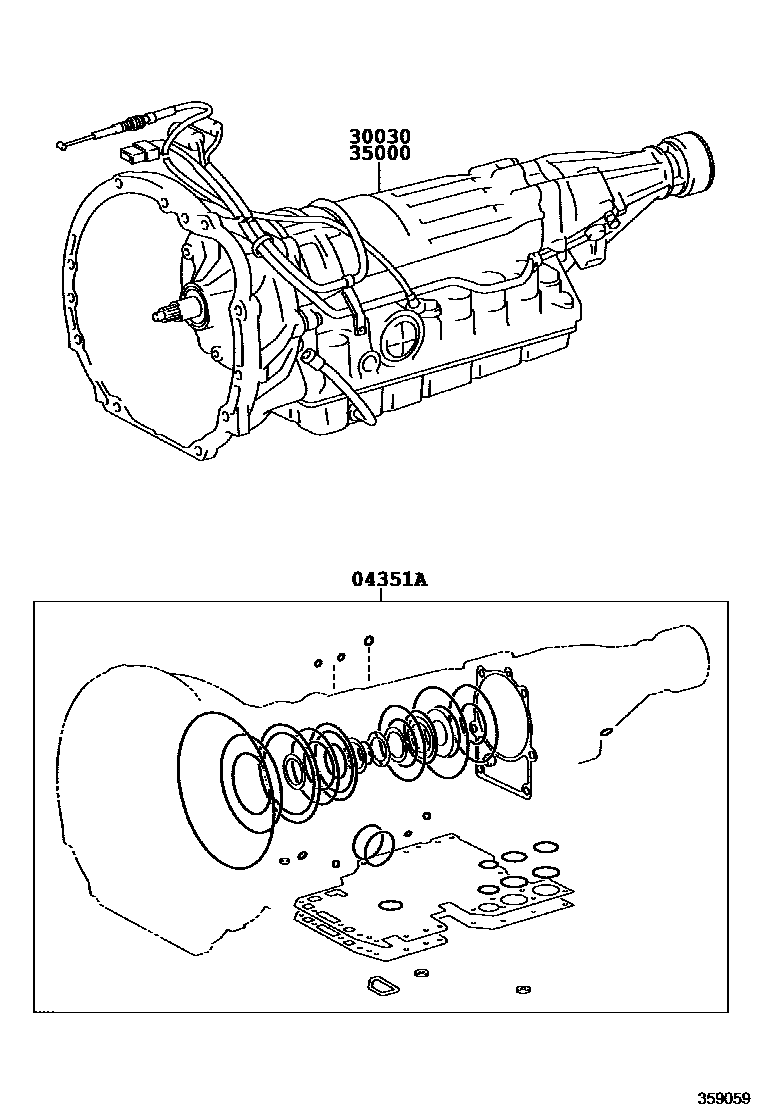

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-30160i199305-200208

main04351-30280i199305-199709

main04351-30370i199709-200208

30030TRANSMISSION ASSY, REBUILT

main30030-1B240i199305-199605

main30030-1B260i199605-199707

main30030-1B261i199707-199709

main30030-1B280i199605-200208

main30030-1B310i199305-199605

main30030-1B360i199709-200208

35000TRANSMISSION ASSY, AUTOMATIC

main35000-1B240i199305-199605

main35000-1B260i199605-199707

main35000-1B261i199707-199709

main35000-1B280i199605-200208

main35000-1B310i199305-199605

main35000-1B360i199709-200208

3 parts on this diagram · 1 diagram in section
