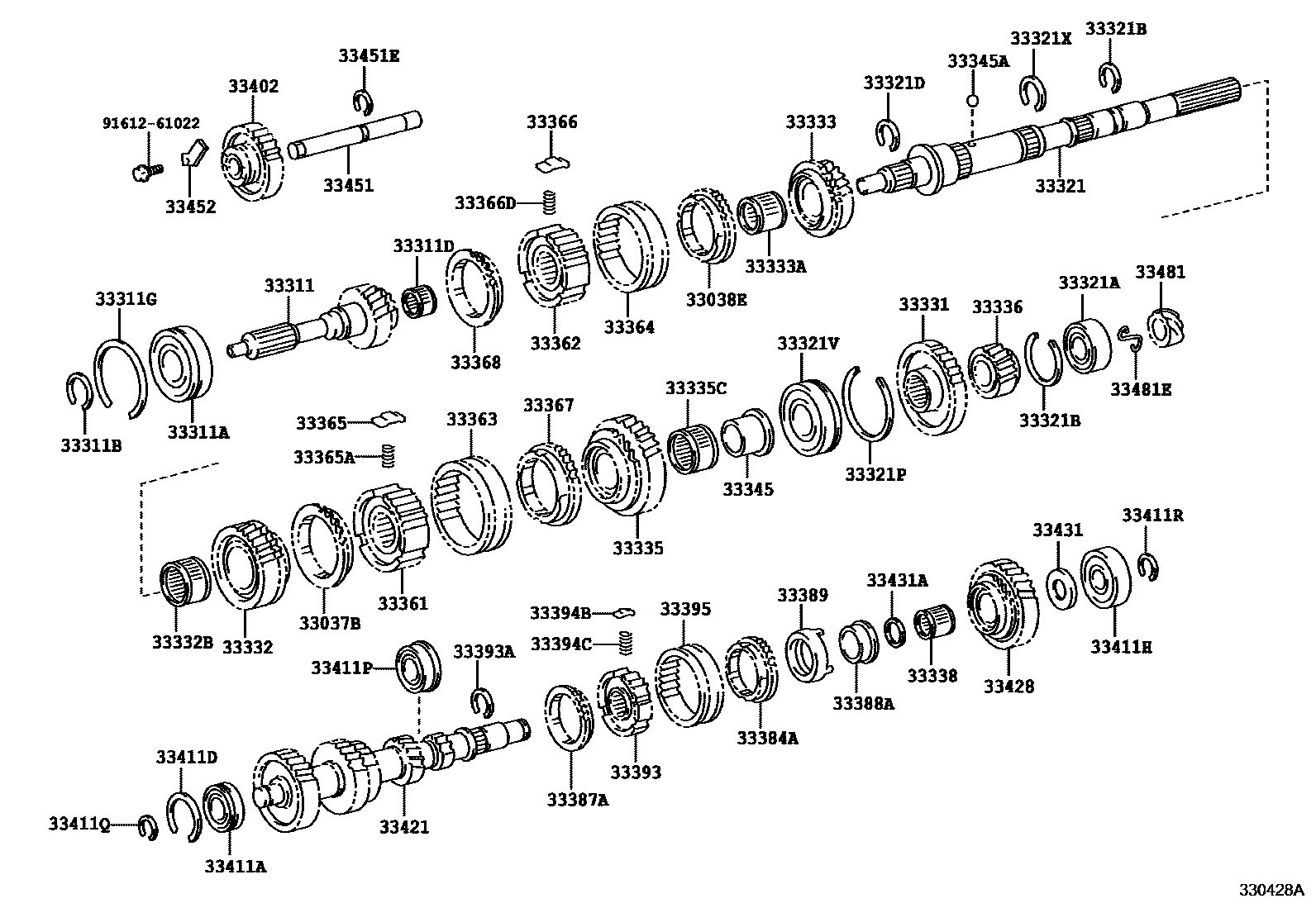

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321PRING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33338BUSH OR BEARING, 5TH GEAR
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365ASPRING, COMPRESSION
33366KEY, SYNCHROMESH SHIFTING, NO.2
33366DSPRING, COMPRESSION
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33384ARING, SYNCHRONIZER, OUTER NO.3
33387ARING, REVERSE SYNCHRONIZER
33388ARING, REVERSE SYNCHRONIZER PULL
33389RING, SYNCHRONIZER CONE
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33394CSPRING, COMPRESSION
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33421GEAR, COUNTER
33428GEAR, COUNTERSHAFT 5TH
33431SPACER, COUNTER GEAR, NO.1
33431ASPACER, COUNTER GEAR, NO.2
33451SHAFT, REVERSE IDLER GEAR
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
T=1.60
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
9161261022
main91612-61022
61 parts on this diagram · 2 diagrams in section
