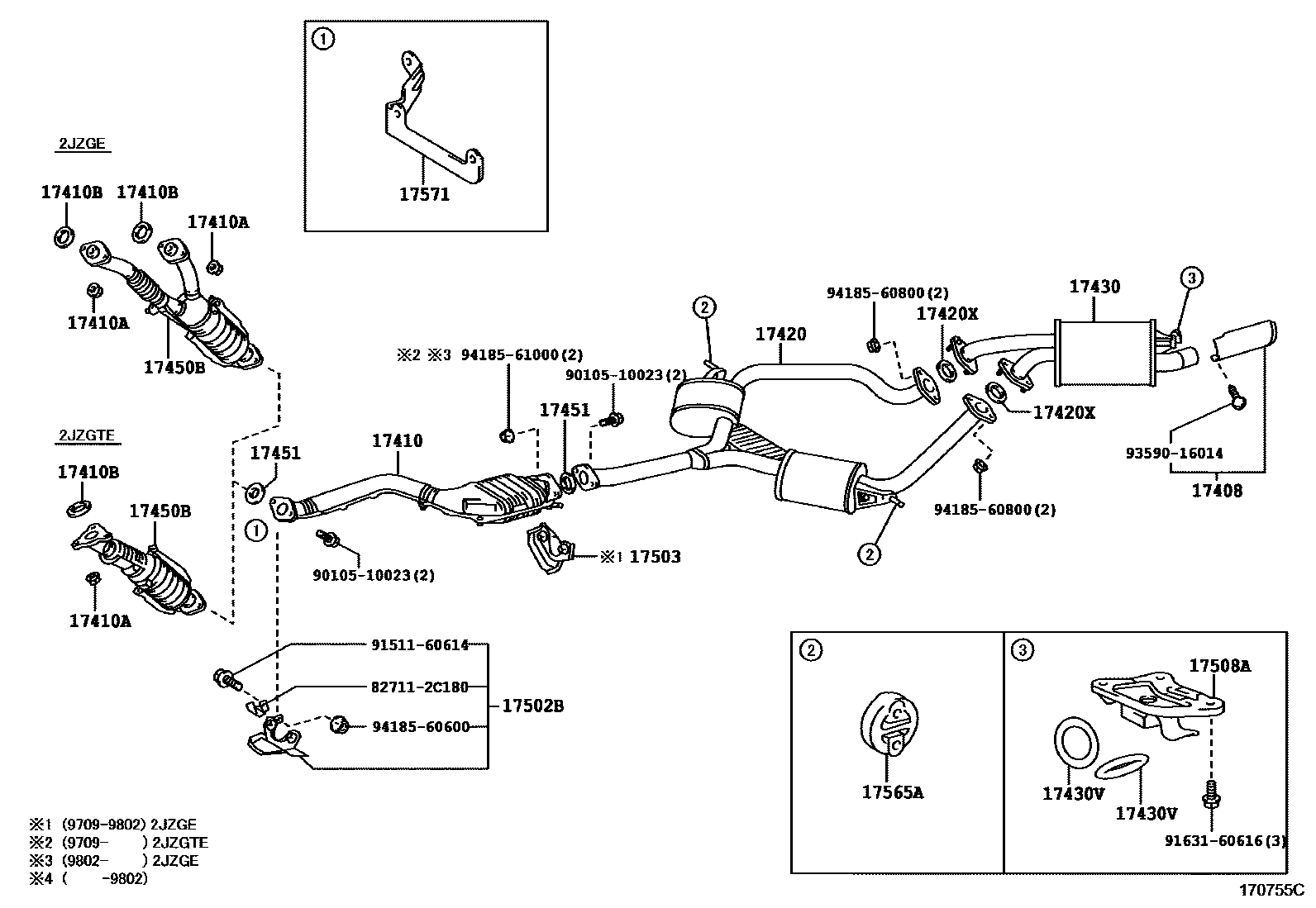

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
17502BBRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
827112C180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C180
9010510023
main90105-10023
9151160614
main91511-60614
9163160616
main91631-60616
9359016014
main93590-16014
9418560600
main94185-60600
9418560800
main94185-60800
9418561000
main94185-61000
23 parts on this diagram · 1 diagram in section
