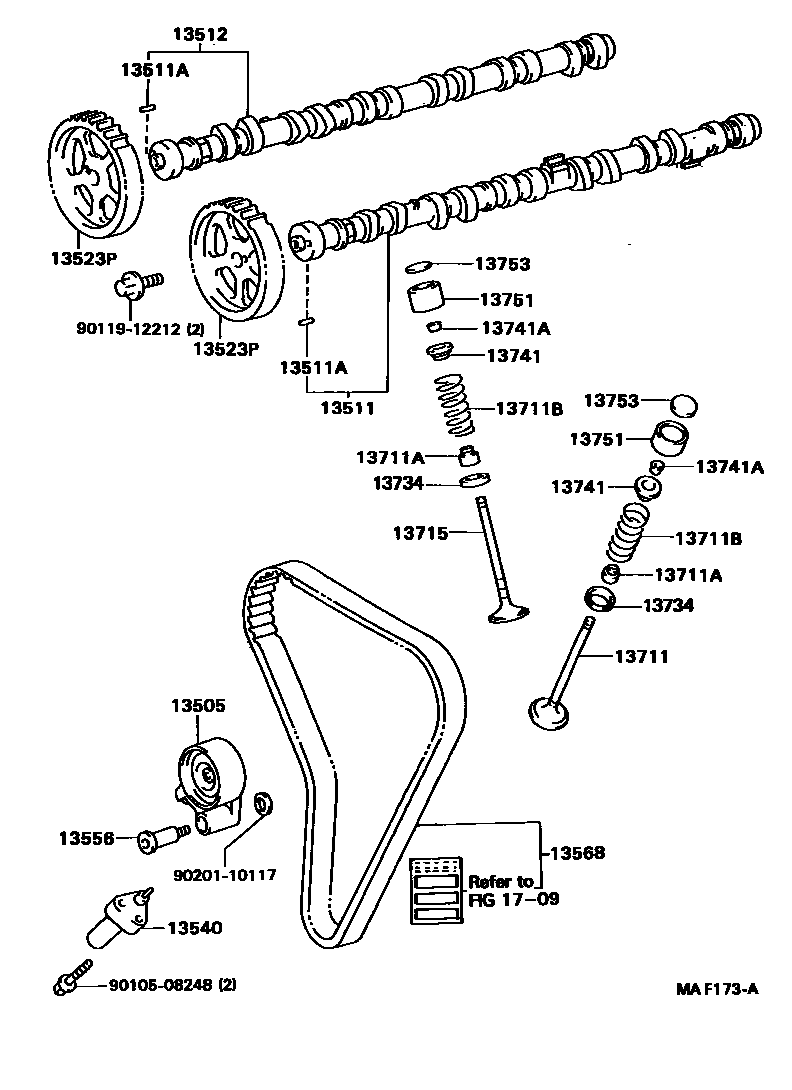

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
13512CAMSHAFT, NO.2
13523PPULLEY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
INTAKE SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
sub13753-74020
sub13753-74040
sub13753-74060
sub13753-74080
sub13753-74100
sub13753-74120
sub13753-74140
sub13753-74160
sub13753-74180
sub13753-74200
sub13753-74220
sub13753-74240
sub13753-74260
sub13753-74280
sub13753-74300
sub13753-74320
1709
9010508248
main90105-08248
9011912212
main90119-12212
9020110117
main90201-10117
21 parts on this diagram · 2 diagrams in section
