ENGINE OVERHAUL GASKET KIT

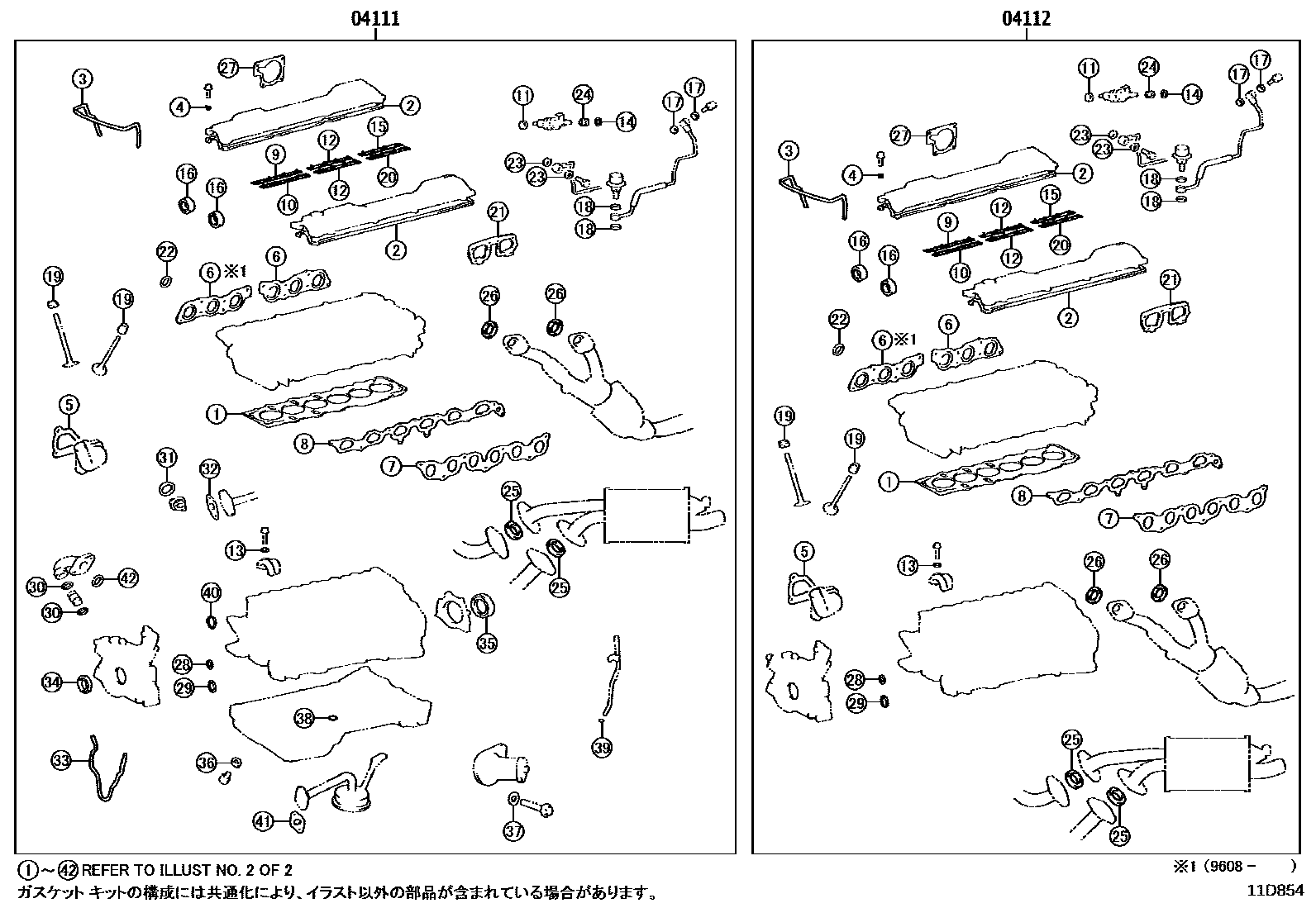

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-46043i199305-199306

main04111-46044i199306-199608

main04111-46045i199608-200208

main04111-46055i199305-199708

main04111-46056i199708-200208

04112GASKET KIT, ENGINE VALVE GRIND

main04112-46043i199305-199306

main04112-46044i199306-199608

main04112-46045i199608-200208

main04112-46055i199305-199708

main04112-46056i199708-200208

2 parts on this diagram · 6 diagrams in section
