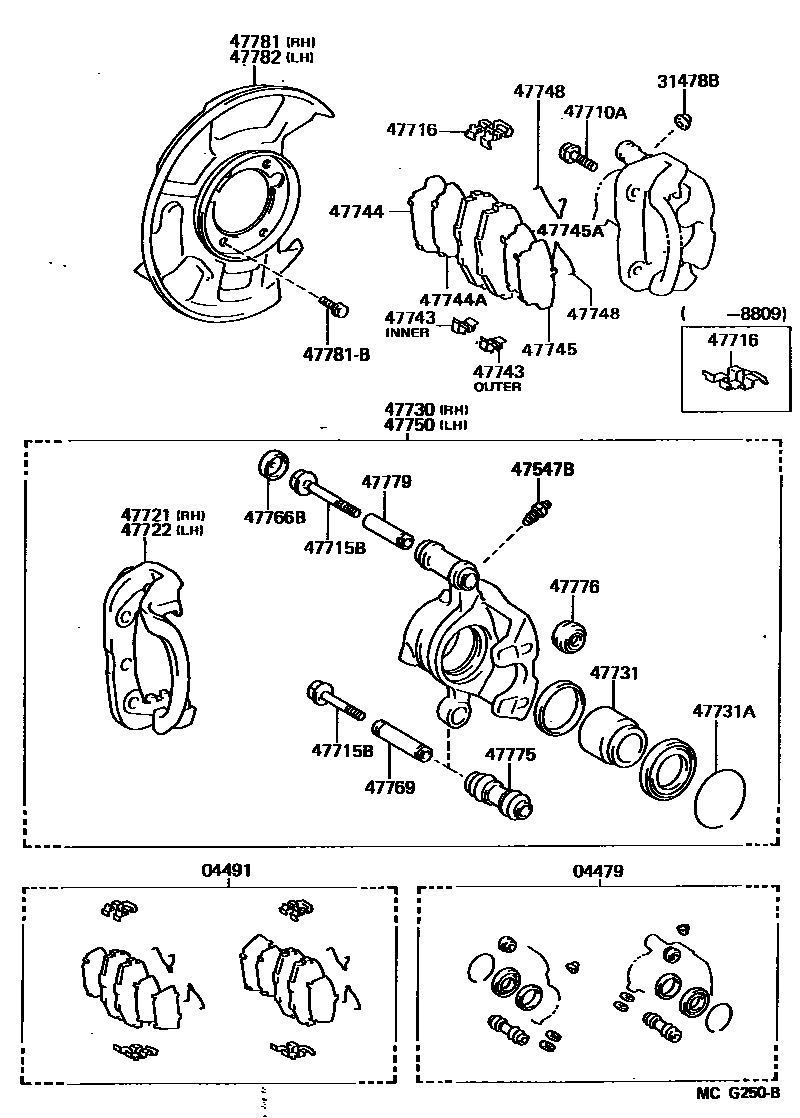

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iGA70,JZA70,MA70198808-199305

04491PAD KIT, DISC BRAKE, FRONT

main04491-14230iMA70..GTTL198808-198809

main04491-14240iGA70..WIB198908-199002

main04491-14250iGA70..G198808-198811

main04491-14251iGA70..G198811-199008

main04491-14270iGA70..GT,GTT198809-198811

main04491-14271iGA70..GT,GTT198811-199002

main04491-14280iGA70199008-199203

main04491-14290iJZA70199008-199305

main04491-24050iGA70199203-199305

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGA70,JZA70,MA70198808-199305

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iGA70,JZA70,MA70198808-199305

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGA70,JZA70,MA70198808-199305

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141×2iGA70,JZA70,MA70198808-199305

main90119-10403×2iGA70,JZA70,MA70198808-199305

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14110×4iGA70..G198808-198809

main47716-14120×4iGA70..GT,GTT; JZA70,MA70198809-199305

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14090iGA70..G198808-199008

main47721-14100iGA70..GT,GTT198808-199008

main47721-14110iMA70198808-199008

main47721-14140iGA70199008-199305

main47721-14150iGA70..WIB; JZA70199008-199305

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14090iGA70..G198808-199008

main47721-14100iGA70..GT,GTT198808-199008

main47721-14110iGA70..WIB198908-199008

main47721-14140iGA70199008-199305

main47721-14150iGA70..WIB; JZA70199008-199305

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14160iGA70..G198808-199008

main47730-14170iGA70..GT,GTT198808-199008

main47730-14200iMA70198808-199008

main47730-14210iGA70199008-199305

main47730-14220iGA70..WIB; JZA70199008-199305

47731PISTON, FRONT DISC BRAKE

main47731-28020×2iGA70,JZA70,MA70198808-199305

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001×2iGA70,JZA70,MA70198808-199305

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-24010×2iGA70198809-199305

main47748-24010×2iGA70198809-199305

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-14030×2iJZA70;MA70..GTTL198808-199305

main47745-14050×2iGA70,MA70..G,GT,GTL,GTT198808-199305

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-14100×2iJZA70;MA70..GTTL198808-199305

main47744-14120×2iGA70,MA70..G,GT,GTL,GTT198808-199305

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-24010×2iGA70198811-198908

main47744-14100×2iJZA70;MA70..GTTL198808-199305

main47745-14050×2iGA70,MA70..G,GT,GTL,GTT198808-198811

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-14120×2iGA70,MA70..G,GT,GTL,GTT198808-199305

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070×4iGA70,JZA70,MA70198808-199305

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14170iGA70199008-199305

main47750-14180iGA70..G198808-199008

main47750-14190iGA70..GT,GTT198808-199008

main47750-14220iMA70198808-199008

main47750-14230iGA70..WIB; JZA70199008-199305

47766BCAP, CYLINDER SLIDE PIN

main47766-14010×2iGA70,JZA70,MA70198808-199305

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020×2iGA70,JZA70,MA70198808-199305

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020×2iGA70,JZA70,MA70198808-199305

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-20010×2iGA70,JZA70,MA70198808-199305

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020×2iGA70,JZA70,MA70198808-199305

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iGA70,MA70..G,GT,GTL,GTT198808-198908

main47781-14120iMA70..GTTL198808-198809

main47781-14130iGA70,JZA70,MA70198908-199305

47781BBOLT(FOR DUST COVER SETTING)

main90119-08571×8iGA70,JZA70,MA70198808-199305

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iGA70,MA70..G,GT,GTL,GTT198808-198908

main47782-14120iMA70..GTTL198808-198809

main47782-14130iGA70,JZA70,MA70198908-199305

27 parts on this diagram · 3 diagrams in section
