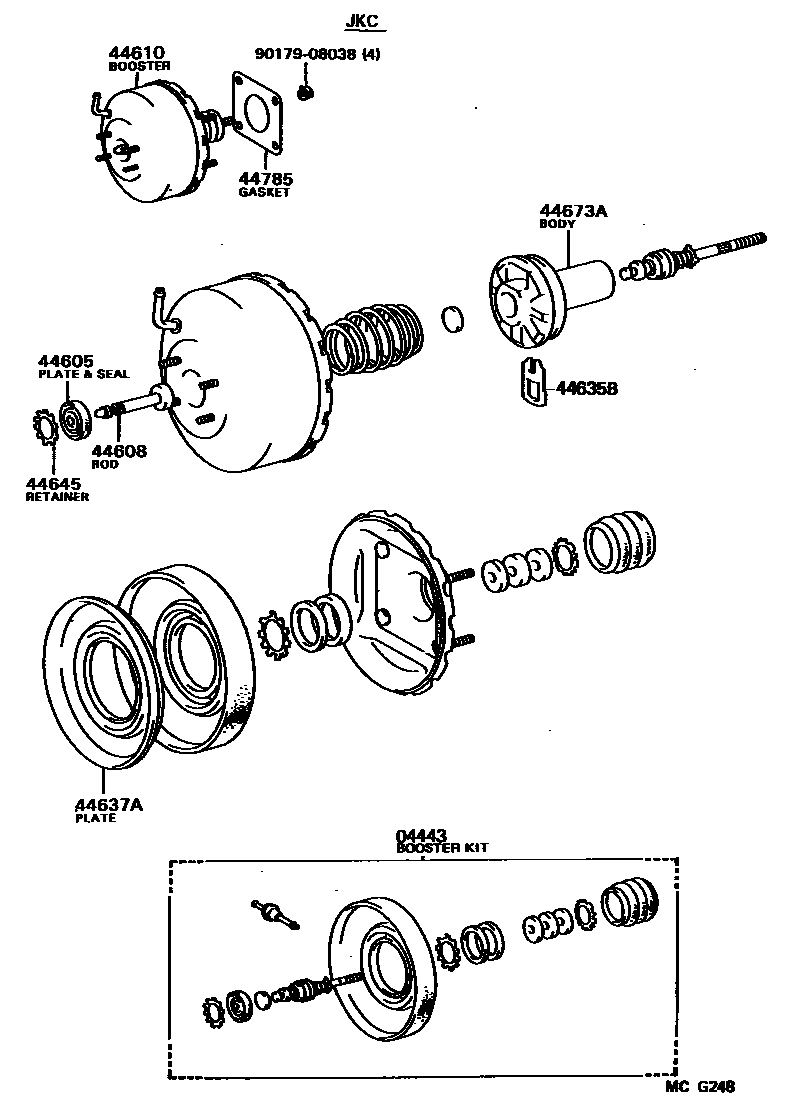

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-14500iMA70198808-199008

main04443-14560iGA70..GT198808-199305

main04443-14580iGA70..G198808-199008

main04443-24060iGA70..GTT198808-199305

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iGA70..G198808-199008

main44605-30350iGA70,MA70..GT,GTL,GTT,GTTL198808-199305

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iGA70,MA70..GT,GTL,GTT,GTTL198808-199305

main44608-32020iGA70..G198808-199008

44610BOOSTER ASSY, BRAKE

main44610-14711iGA70..GT198808-199008

main44610-14720iGA70..WIB198908-199008

main44610-14731iGA70..G198808-199008

main44610-14770iGA70..GT199008-199305

main44610-14780iGA70..GTT199008-199305

main44610-14790iJZA70199008-199305

main44610-14820iGA70..WIB199008-199305

main44610-24060iGA70..GTT198808-199008

44635BKEY, VALVE STOPPER

main44633-28130iGA70..G198808-199008

44637APLATE, BOOSTER DIAPHRAGM

main44637-20810iGA70..GT198808-199305

main44637-28300iGA70,MA70..GTL,GTT,GTTL198808-199305

main44637-32040iGA70..G198808-199008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iGA70,MA70..GT,GTL,GTT,GTTL198808-199305

main44645-22020iGA70..G198808-199008

44673ABODY, BOOSTER VALVE

main44673-20810iGA70,MA70..GT,GTL,GTT,GTTL198808-199305

main44673-32040iGA70..G198808-199008

44785GASKET, BRAKE BOOSTER

main44785-30020iGA70,JZA70,MA70..G,GT,GTL,GTT,GTTR198808-199305

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
