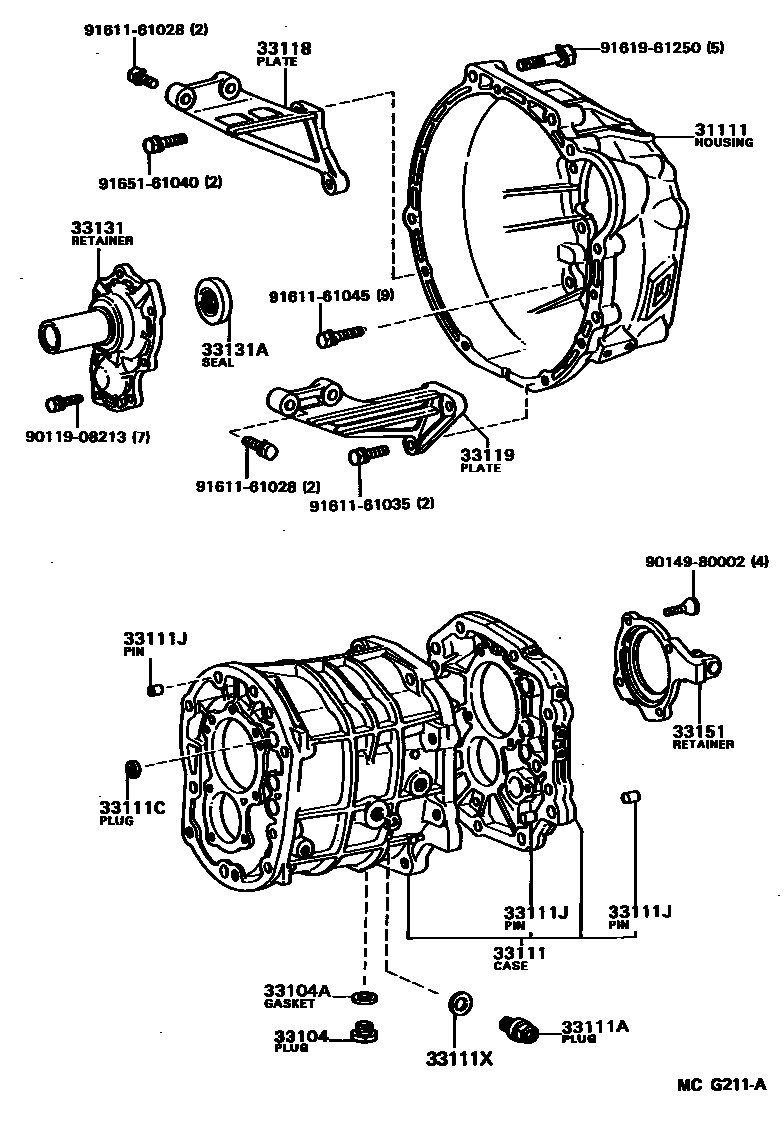

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W5# 0002 1W5# 0003 1R154 0004 1R154

31111HOUSING, CLUTCH

main31111-14100iMA70..5F198808-199008

main31111-14110iJZA70..5F199008-199305

main31111-22130iGA70..5F..GTT199107-199110

main31111-22131iGA70..5F199004-199107

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZA70,MA70..5F198808-199305

main90341-18057iGA70..5F198808-199305

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGA70,JZA70,MA70..5F198808-199305

33111CASE, MANUAL TRANSMISSION

main33101-22031iGA70..5F198808-198904

main33101-22032iGA70..5F198904-199108

main33101-30070iGA70..5F199108-199305

main33101-35030iJZA70,MA70..5F198808-199108

main33101-35031iJZA70..5F199108-199305

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGA70..5F198808-199305

main90341-18026iJZA70,MA70..5F198808-199305

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×3iGA70..5F198808-199108

main90331-17004×2iGA70..5F199108-199110

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iGA70..5F; JZA70,MA70..5F198808-199305

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGA70..5F198808-199305

33118PLATE, STIFFENER, RH(MTM)

main33118-14050iMA70..5F198808-198811

main33118-14051iMA70..5F198811-199008

main33118-22051iGA70..5F198808-199305

33119PLATE, STIFFENER, LH(MTM)

main33119-14070iMA70..5F198808-199008

main33119-22042iGA70..5F198808-199305

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iGA70..5F198808-199110

main33131-30080iGA70..5F199110-199305

main33131-35030iMA70..5F198808-199008

main33131-35031iJZA70..5F199008-199305

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGA70..5F199110-199305

main90311-30115iGA70..5F198808-199110

main90311-32012iJZA70,MA70..5F198808-199305

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGA70..5F198808-199110

main33107-30020iGA70..5F199110-199305

main33151-35020iJZA70,MA70..5F198808-199305

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

9165161040

main91651-61040

20 parts on this diagram · 4 diagrams in section
