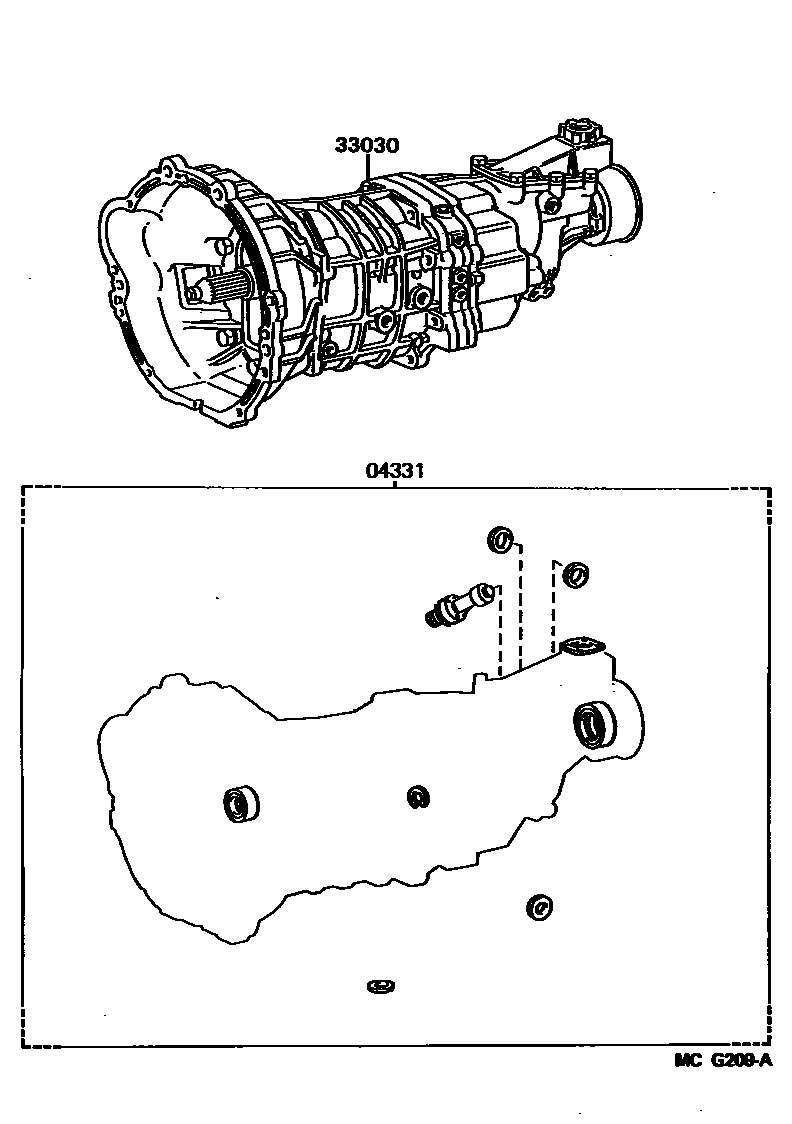

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1W5# 0002 1R154

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14040iJZA70,MA70..5F198808-199305

main04331-22040iGA70..5F198808-199110

main04331-35190iGA70..5F199110-199305

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-1B041iMA70..5F..GTT198808-199008

main33030-1B051iMA70..5F..GTL; MA70..5F..GTT198808-199008

main33030-1B090iGA70..5F..GT198808-199110

main33030-1B100iGA70..5F..GT198808-199110

main33030-1B110iGA70..5F..GTT198808-199110

main33030-1B120iGA70..5F..GTT198808-199110

main33030-1B170iJZA70..5F..(GTT,GTTR)199008-199305

main33030-1B180iMA70..GTTL198808-198809

main33030-1B190iJZA70..5F..(GTT,GTTR); JZA70..5F..GTL199008-199305

main33030-1B200iGA70..5F..GT199110-199305

main33030-1B210iGA70..5F..GT199110-199305

main33030-1B220iGA70..5F..GTT199110-199305

main33030-1B230iGA70..5F..GTT199110-199305

main33030-2A250iGA70..5F..G198808-199008

2 parts on this diagram · 2 diagrams in section
