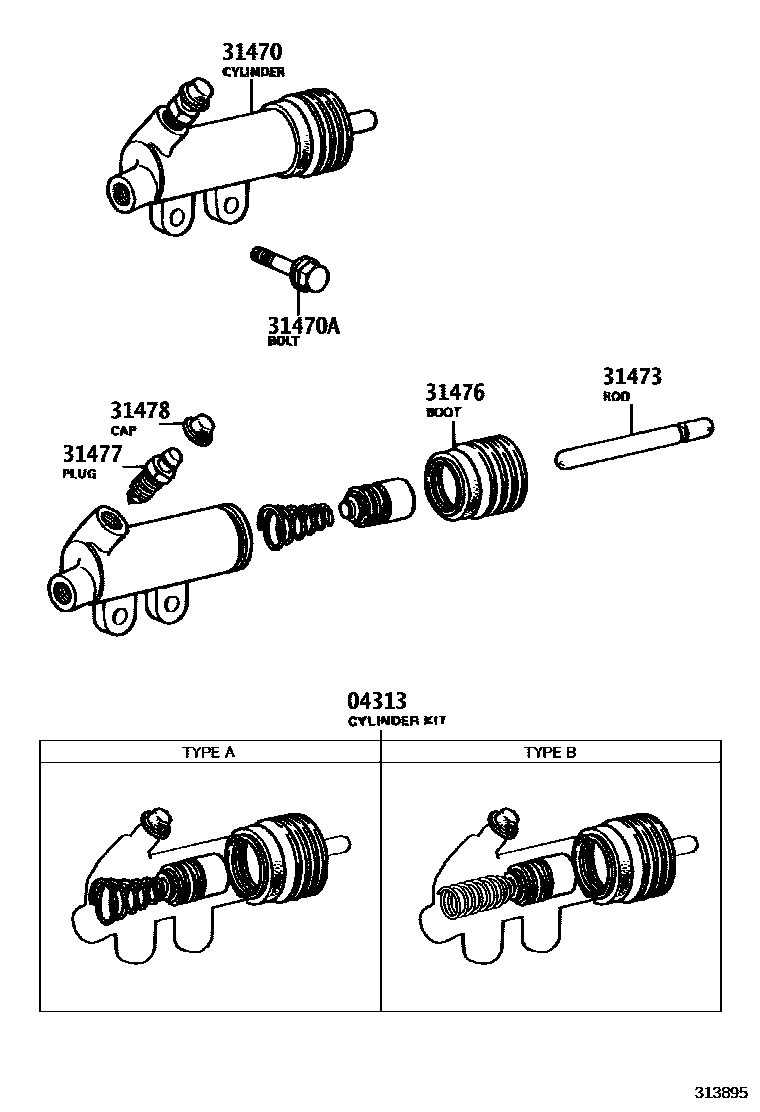

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iGA70..5F198808-199103

main04313-14010iJZA70,MA70..5F198808-199305

main04313-17010iGA70..5F..GT199110-199305

main04313-22030iGA70..5F199103-199109

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iJZA70,MA70..5F198808-199305

main31470-22100iGA70..5F..GTT198808-199103

main31470-22101iGA70..5F..GTT199103-199305

main31470-22140iGA70..5F..GT199103-199305

main31470-30221iGA70..5F..(G,GT)198808-199103

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iJZA70,MA70..5F198808-199305

main91611-60825×2iGA70..5F198808-199305

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iJZA70,MA70..5F198808-199305

main31473-20031iGA70..5F..GTT199109-199305

main31473-22010iGA70..5F..GT199103-199305

main31473-22030iGA70..5F..GTT199103-199109

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGA70,JZA70,MA70..5F198808-199305

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGA70,JZA70,MA70..5F198808-199305

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGA70,JZA70,MA70..5F198808-199305

7 parts on this diagram · 1 diagram in section
