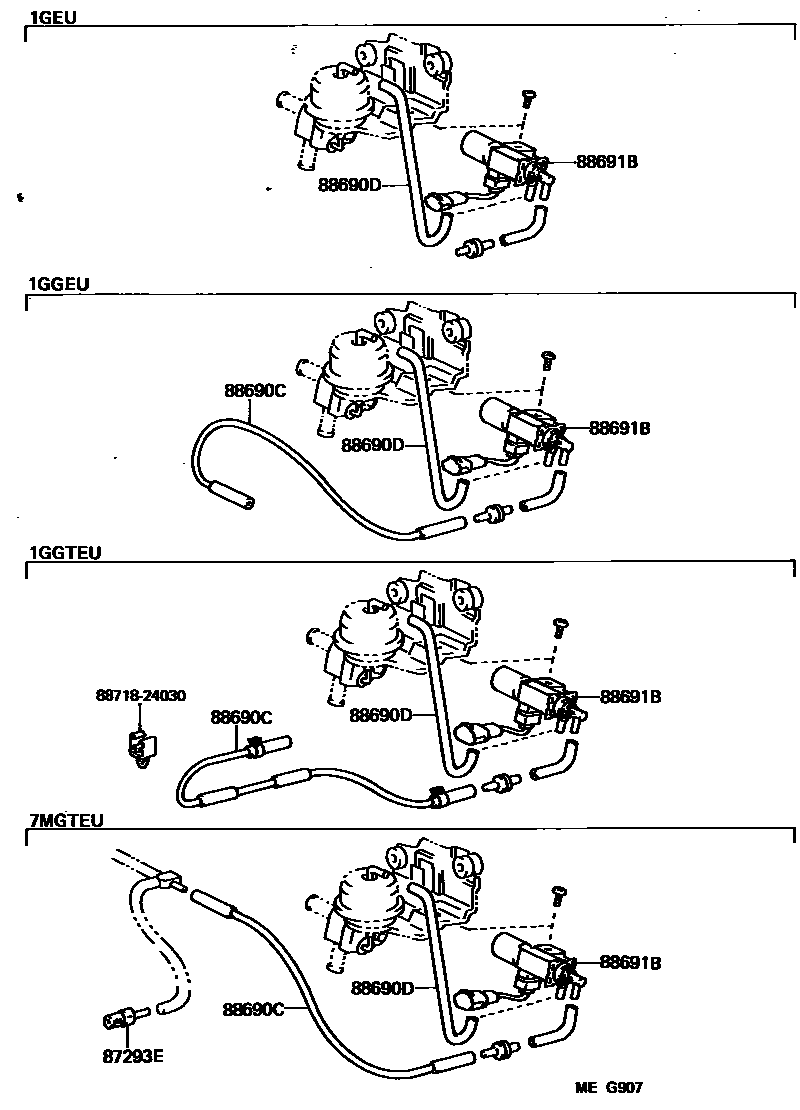

HEATING & AIR CONDITIONING - VACUUM PIPING

87293EUNION, HOSE

main90404-51093iMA70198602-198808

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main88807-24010iGA70..GTT198602-198808

main90447-04056iMA70198602-198808

main95413-40042iGA70..GT198602-198701

main95413-40048iGA70..GT198701-198808

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main90999-92002iGA70,MA70198803-198808

main95411-19930iGA70,MA70198602-198803

88691BVALVE, MAGNET (FOR WATER VALVE)

main88690-24050iGA70,MA70198602-198808

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

5 parts on this diagram · 1 diagram in section
