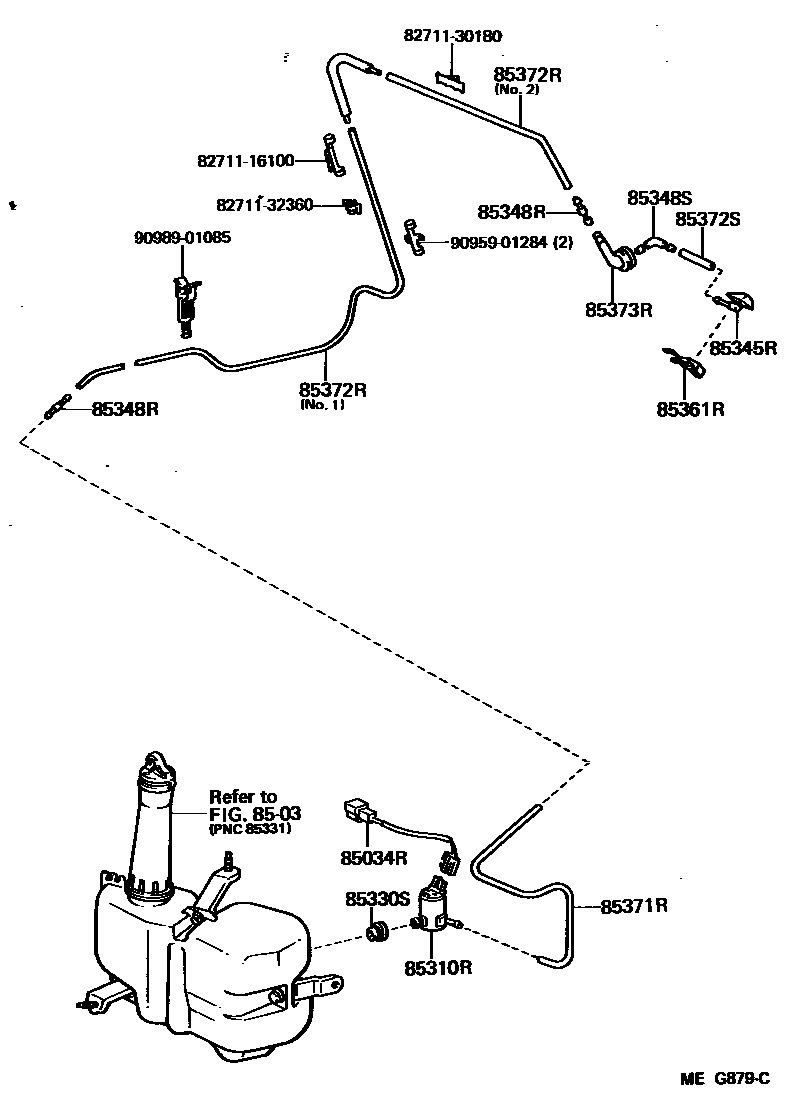

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85034RWIRE, REAR WASHER

main85034-14680iGA70,MA70198602-198808

85310RMOTOR ASSY, REAR WASHER

main85310-22080iGA70,MA70198602-198808

85330SBUSH, REAR WASHER JAR

main90099-32089iGA70,MA70198602-198808

85345RNOZZLE, REAR WASHER

main85035-14340iGA70,MA70198602-198808

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×3iGA70,MA70198602-198808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iGA70,MA70198602-198808

85361RHOLDER, REAR WASHER

main85342-14160iGA70,MA70198602-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iGA70,MA70198602-198808

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33543iGA70,MA70198602-198808

main90446-07001iGA70,MA70198602-198808

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33299iGA70,MA70198602-198808

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85372-14030iGA70,MA70198602-198808

8271116100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16100

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9095901284

main90959-01284

9098901085

main90989-01085

17 parts on this diagram · 1 diagram in section
