WIRING & CLAMP

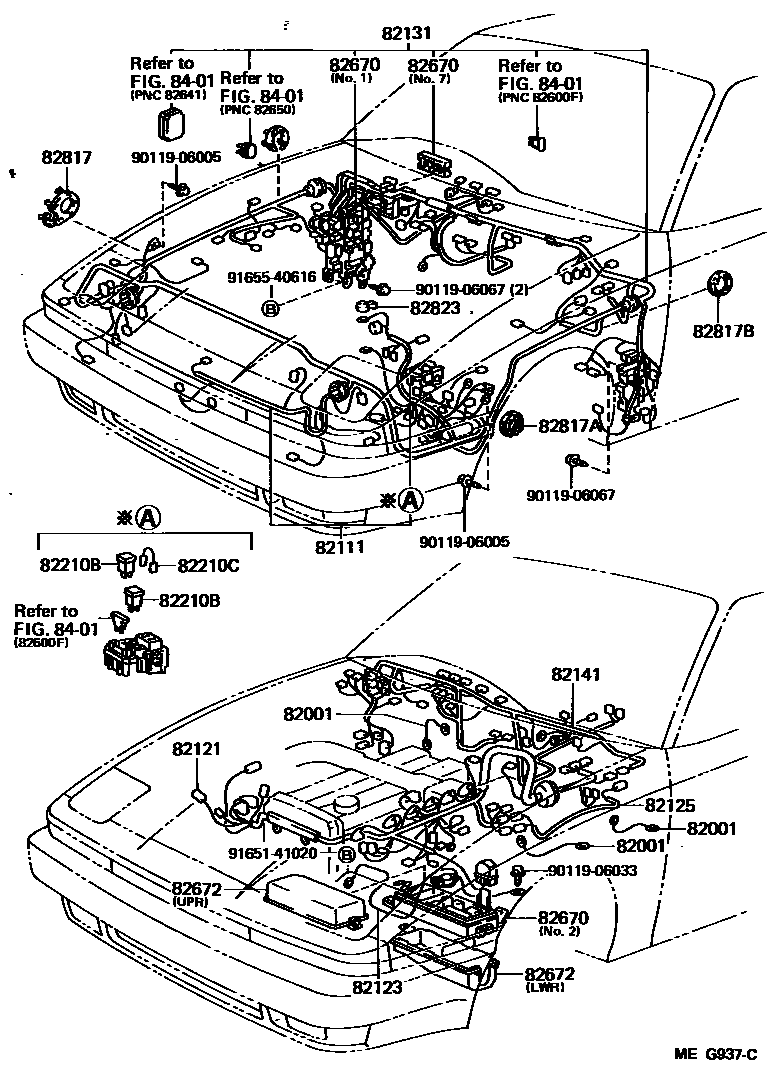

Parts diagram

82001CABLE, BOND, NO.1

main90980-07109i198602-198803

L=400,ENGINE--COWL PANEL

main90980-07176i198602-198808

L=300,CLUTCH HOUSING--FLOOR

main90980-07200i198602-198804

L=350,ENGINE--COWL PANEL

main90980-07268i198602-198808

L=290,EXTENSION HOUSING--FLOOR

main90980-07308i198804-198808

L=350,ENGINE--COWL PANEL

main90980-07309i198803-198808

L=400,ENGINE--COWL PANEL

82111WIRE, ENGINE ROOM MAIN

main82111-14520i198602-198609

main82111-14521i198609-198701

main82111-14522i198701-198808

main82111-14530i198602-198603

main82111-14531i198603-198609

main82111-14540i198602-198609

main82111-14541i198609-198701

main82111-14542i198711-198808

W/O ESC

main82111-14550i198602-198609

main82111-14551i198609-198610

main82111-14552i198701-198708

W/ESC

main82111-14553i198708-198711

W/ESC

main82111-14630i198609-198701

main82111-14631i198701-198808

main82111-1B050i198711-198808

W/O ESC(W/*AD & TEMS)

main82111-1B070i198610-198701

main82111-1B071i198701-198711

main82111-1B072i198711-198808

W/ESC

main82111-1B100i198711-198808

W/O ESC(W/*AD & TEMS);W/O ESC

82121WIRE, ENGINE

main82121-14280i198602-198701

main82121-24150i198602-198603

main82121-24151i198603-198609

main82121-24152i198609-198808

main82121-24160i198602-198701

main82121-24180i198602-198701

main82121-24181i198701-198808

main82121-24190i198602-198701

main82121-24191i198701-198808

main82121-24201i198701-198808

main82121-24211i198602-198701

main82121-24212i198701-198808

main82121-24220i198701-198808

main82121-24230i198701-198808

82123WIRE, ENGINE, NO.3

main82123-14120i198701-198808

BATTERY:46B24L

main82123-24010i198602-198604

BATTERY:46B24L

main82123-24020i198602-198808

main82123-24030i198602-198808

BATTERY:55D23L

82125WIRE, TRANSMISSION

main82125-24030i198602-198808

82131WIRE, COWL

main82131-1B610i198602-198609

main82131-1B611i198609-198808

main82131-1B620i198602-198701

main82131-1B621i198701-198808

W/O ESC

main82131-1B630i198602-198701

main82131-1B631i198701-198808

W/O ESC

main82131-1B651i198701-198808

W/ESC

main82131-1B661i198602-198701

main82131-1B662i198709-198808

W/O ESC(W/*DS & TEMS)

main82131-1B671i198602-198701

W/ESC

main82131-1B672i198701-198808

W/ESC

main82131-1B770i198701-198808

main82131-1B790i198709-198808

W/O ESC(W/*DS & TEMS)

main82131-1B870i198801-198808

BLACK LIMITED

82141WIRE, INSTRUMENT PANEL

main82141-14770i198602-198701

main82141-14771i198701-198808

main82141-14780i198602-198701

main82141-14781i198701-198808

main82141-14790i198602-198701

main82141-14791i198701-198808

main82141-14800i198602-198701

W/DIGITAL SPEEDOMETER

main82141-14801i198701-198808

W/DIGITAL SPEEDOMETER

82210BFUSIBLE LINK

main90982-08188i198602-198808

main90982-08189i198602-198808

main90982-08190i198602-198808

main90982-08246i198610-198808

82210CFUSIBLE LINK

main90982-08246i198711-198808

main90982-08250i198711-198808

82670BLOCK ASSY, JUNCTION, NO.1

main82670-24010i198602-198808

NO.1

main82671-14020i198602-198808

NO.7

main82671-24010i198602-198808

NO.2

82672COVER, JUNKTION BLOCK

main82672-14010i198602-198808

UPR

main82672-14040i198610-198808

UPR

main82672-24010i198602-198808

LWR

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24140i198602-198808

main82817-24150i198602-198808

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24100i198602-198808

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-24110i198602-198808

82823CAP, TERMINAL, NO.1

main82823-20040i198603-198608

main82823-22050i198711-198808

main82823-24020i198610-198808

main82823-32020i198602-198603

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9011906033

main90119-06033

9011906067

main90119-06067

9165141020

main91651-41020

9165540616

main91655-40616

21 parts on this diagram · 6 diagrams in section
