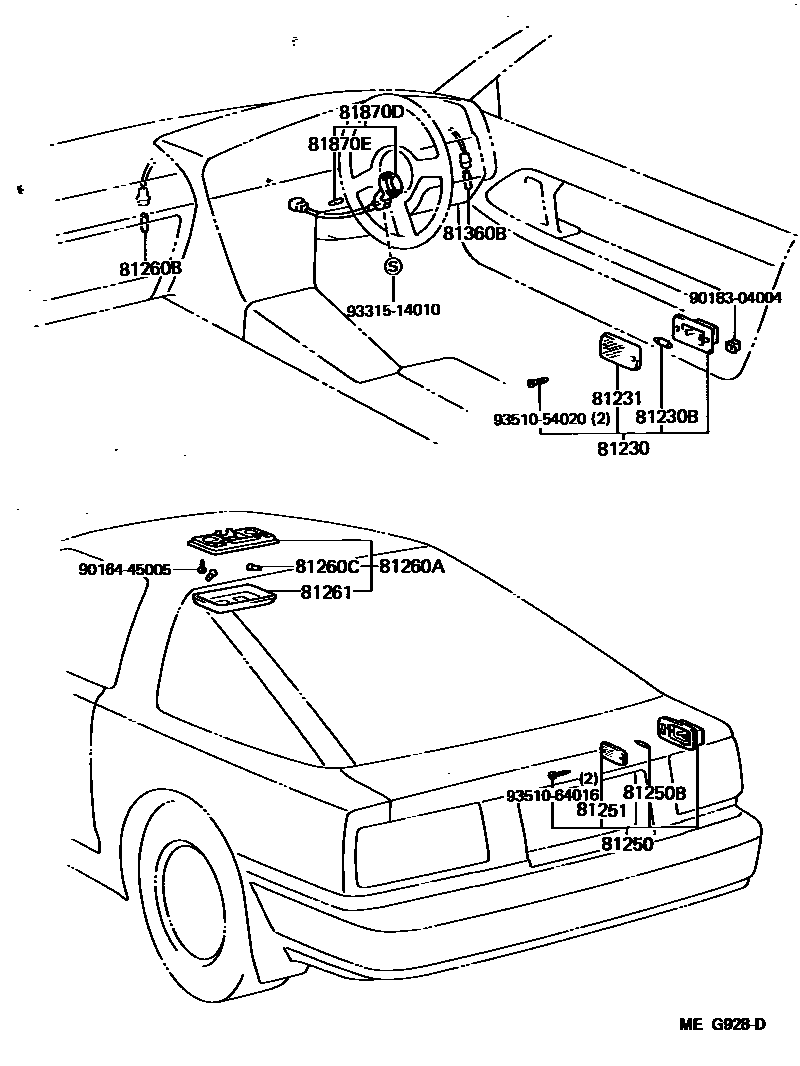

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14040×2iGA70,MA70198602-198808

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iGA70,MA70198602-198808

81231LENS, COURTESY LAMP

main81231-30100×2iGA70,MA70198602-198808

81250LAMP ASSY, ROOM, NO.2

main81250-14030-14iGA70,MA70198602-198808

BLUE,BLUE,TRIM8#

main81250-14030-15iGA70,MA70198602-198808

BEIGE,DARK BEIGE,TRIM4#

main81250-14030-32iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iGA70,MA70198602-198808

81251LENS, ROOM LAMP, NO.2

main81251-14030iGA70,MA70198602-198808

81260ALAMP ASSY, MAP

main81260-14070-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main81260-14070-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main81260-14070-05iGA70,MA70198602-198808

BEIGE,DARK BEIGE,TRIM4#

81260BBULB(FOR GLOVE BOX)

main90981-11014iGA70,MA70198602-198808

81260CBULB(FOR MAP LAMP)

main90981-12005×2iGA70,MA70198602-198808

81261LENS AND COVER, MAP LAMP

main81261-14070-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main81261-14070-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main81261-14070-05iGA70,MA70198602-198808

BEIGE,DARK BEIGE,TRIM4#

81360BBULB, STEP OR SPOT LAMP

main90981-11014iGA70,MA70198602-198808

81870DLAMP ASSY, KEY CYLINDER

main81870-14010iGA70,MA70198602-198808

81870EBULB, KEY CYLINDER LAMP

main90981-11018iGA70,MA70198602-198808

9016445005

main90164-45005

9018304004

main90183-04004

9331514010

main93315-14010

9351054020

main93510-54020

9351064016

main93510-64016

18 parts on this diagram · 1 diagram in section
