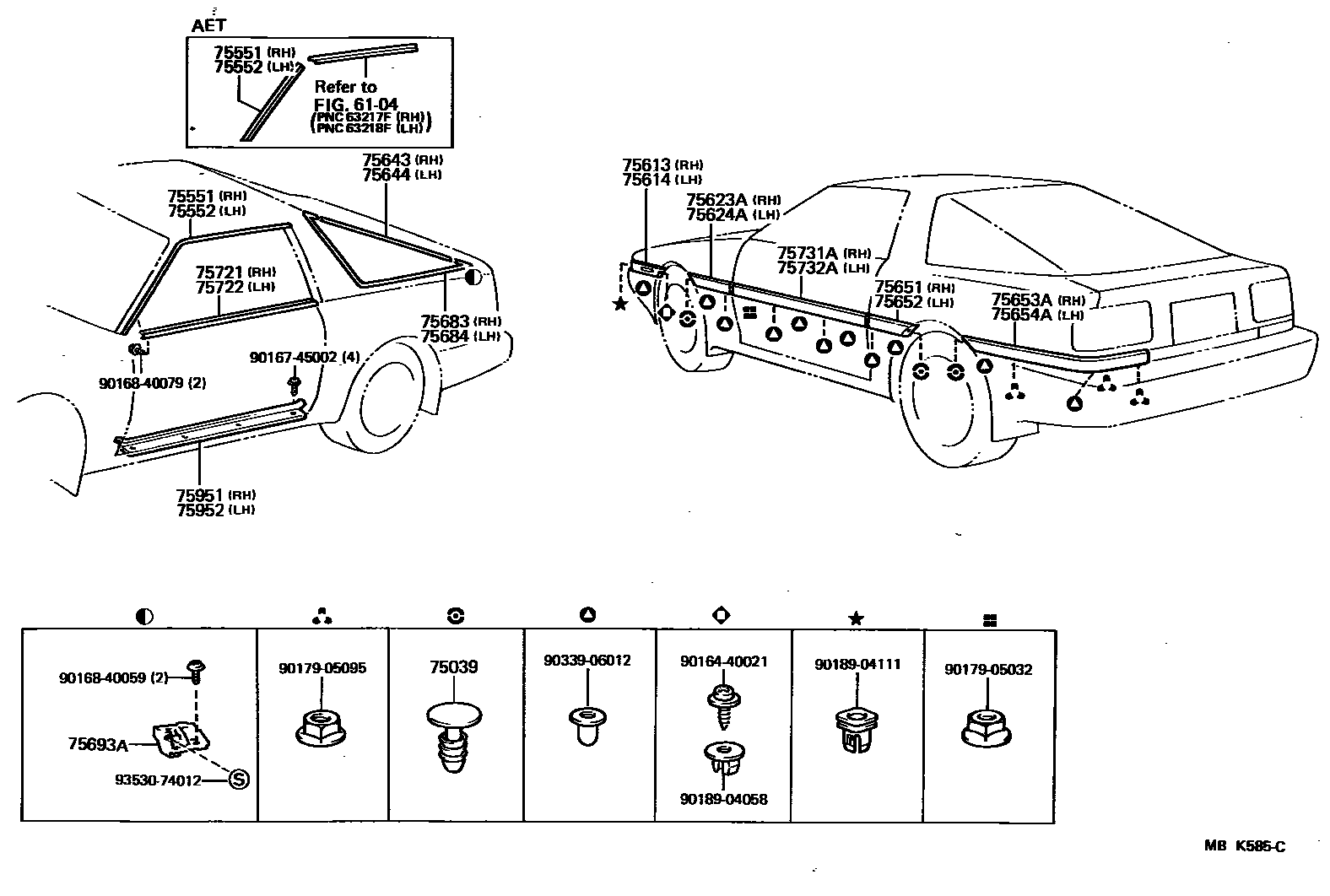

SIDE MOULDING
6104ROOF PANEL & BACK WINDOW GLASS
75039CLIP SUB-ASSY, OUTSIDE MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75613MOULDING, FRONT FENDER, OUTSIDE RH
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
75614MOULDING, FRONT FENDER, OUTSIDE LH
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75651MOULDING, QUARTER, OUTSIDE RH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75652MOULDING, QUARTER, OUTSIDE LH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75653AMOULDING, QUARTER, OUTSIDE REAR RH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,920 ,042
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75654AMOULDING, QUARTER, OUTSIDE REAR LH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,920 ,042
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75683MOULDING, QUARTER BELT, REAR RH
75684MOULDING, QUARTER BELT, REAR LH
75693ARETAINER, QUARTER BELT MOULDING
RH
LH
75721MOULDING, FRONT DOOR BELT, RH
75722MOULDING, FRONT DOOR BELT, LH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75732AMOULDING, FRONT DOOR, OUTSIDE LH
MAROON-M,MAROON METALLIC,3H1
GRAY-M,GRAY METALLIC,040 ,042 ,920
BLUE-M,BLUE METALLIC,8E3
GRAY,GRAY,040 ,3H1 ,920 ,8E3
BLACK LIMITED,DARK GRAY-M,DARK GRAY M,204
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
9016440021
main90164-40021
9016745002
main90167-45002
9016840059
main90168-40059
9016840079
main90168-40079
9017905032
main90179-05032
9017905095
main90179-05095
9018904058
main90189-04058
9018904111
main90189-04111
9033906012
main90339-06012
9353074012
main93530-74012
33 parts on this diagram · 2 diagrams in section
