LOCK CYLINDER SET

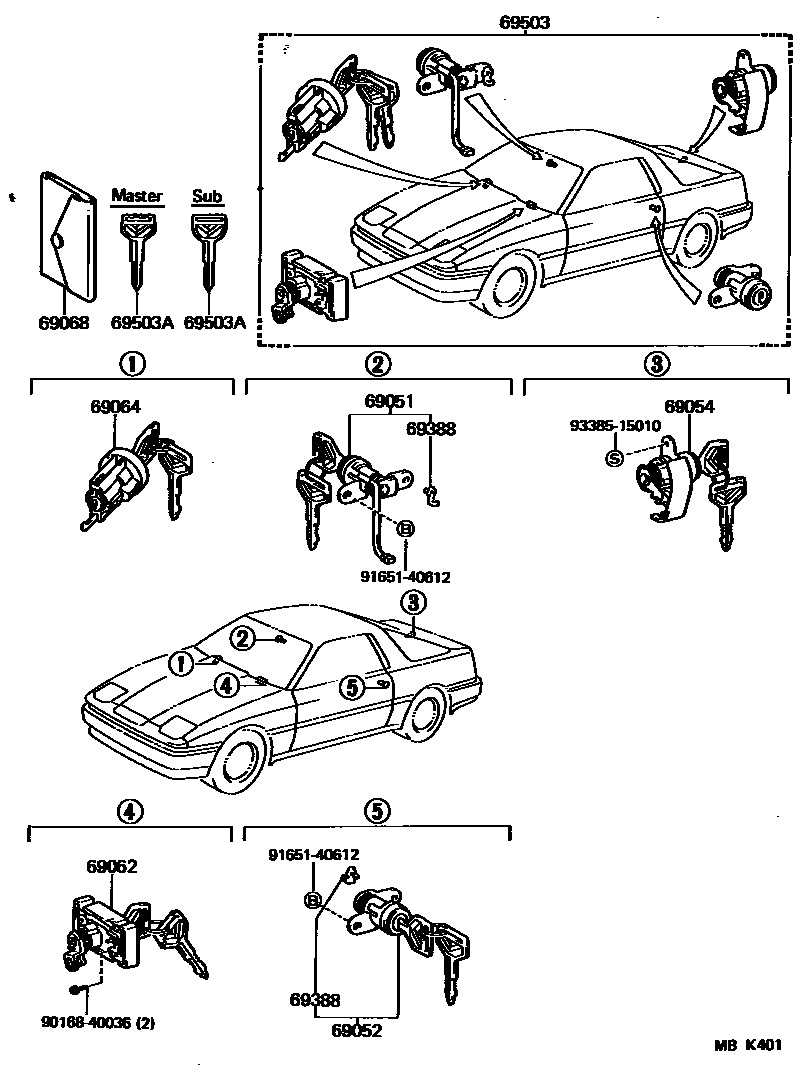

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14140i198602-198808

main69051-14150i198602-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14140i198602-198808

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-14260i198602-198808

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14090-02i198602-198808

MAROON,MAROON,TRIM3#

main69056-14090-03i198701-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69056-14090-04i198602-198808

BLUE,DEEP BLUE,TRIM8#

main69056-14090-05i198602-198701

BEIGE,DARK BEIGE,TRIM4#

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14120i198803-198808

main69057-20120i198602-198803

69068COVER SUB-ASSY, KEY

main69555-20010i198602-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040i198602-198808

RH

main69759-30050i198602-198808

LH

69503CYLINDER SET, LOCK

main69005-14560-02i198602-198808

MAROON,MAROON,TRIM3#

main69005-14560-03i198701-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69005-14560-04i198602-198808

BLUE,DEEP BLUE,TRIM8#

main69005-14560-05i198602-198701

BEIGE,DARK BEIGE,TRIM4#

main69005-14570-02i198602-198808

MAROON,MAROON,TRIM3#

main69005-14570-03i198701-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69005-14570-04i198602-198808

BLUE,DEEP BLUE,TRIM8#

main69005-14570-05i198602-198701

BEIGE,DARK BEIGE,TRIM4#

69503AKEY, BLANK

main90999-00085i198602-198808

main90999-00094i198602-198808

main90999-00106i198602-198808

9016840036

main90168-40036

9165140612

main91651-40612

9338515010

main93385-15010

12 parts on this diagram · 1 diagram in section
